210 7 Maintenance

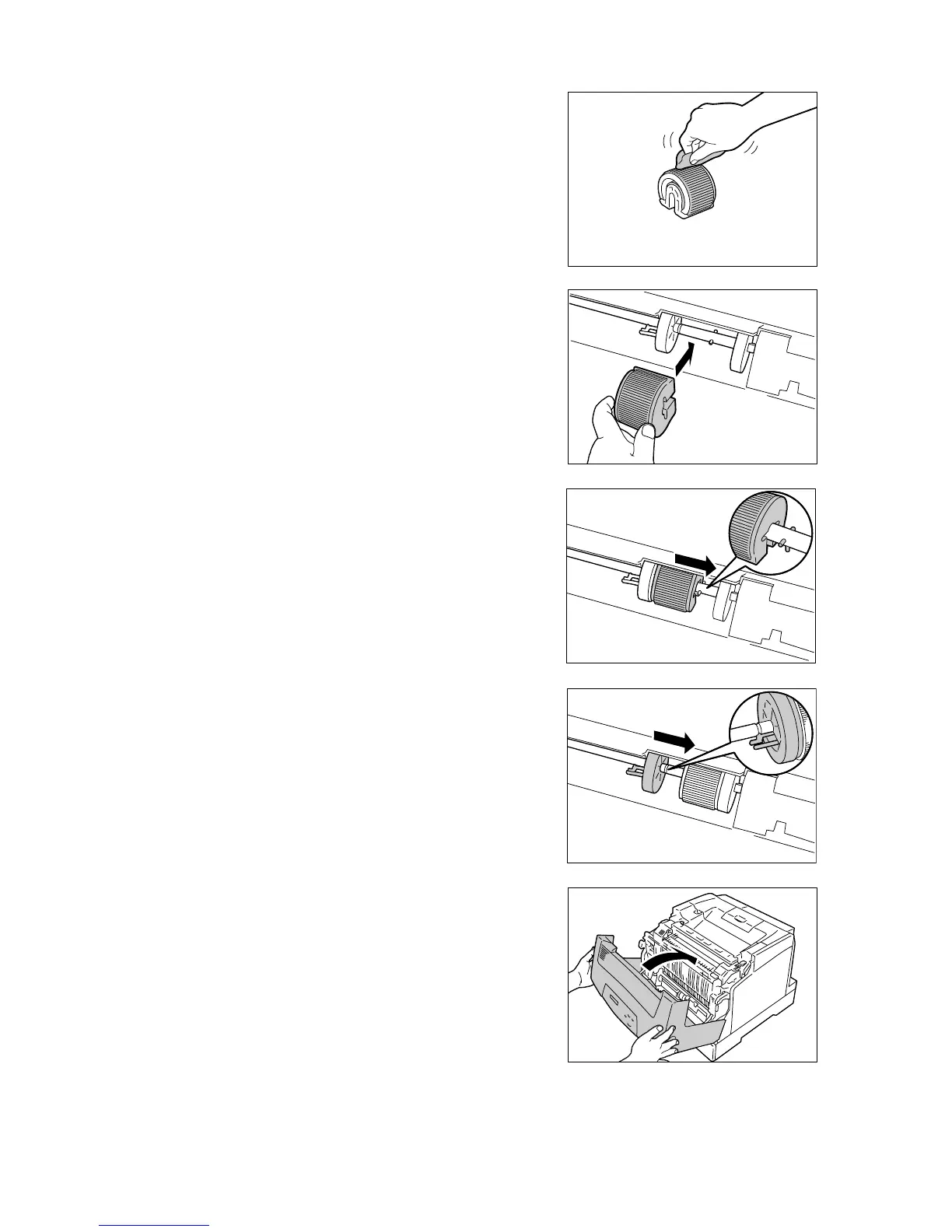

6. Wipe the feed roll with a soft, firmly wrung
cloth moistened with water.
7. After cleaning the feed roll, place it back on
the printer.
Hold the feed roll with the flat side to the
right and push it horizontally onto the shaft.
Note
• The surface of the feed roll is flat on one side and
jagged on the other side. Make sure to correctly orient
the feed roll when placing it on the printer.
8. Rotate the feed roll 90 degrees to the back
and slide it to the right so that the pins on
the shaft fit into the indentations on the feed
roll.
9. Slide the white part to the feed roll.
Slide it to the right until the tab on its left
side is inserted into the indentation on the
shaft.
10. Close the front cover.
Important
• When closing the front cover, be careful not to get your
fingers caught between (the left, right, top, or bottom
edge of) the cover and the printer.
To Next Page
