Yamaha FT50C - Timing Belt and Sprockets

62Y5A11
5-16
1
2
3
4
5
6
7
8
9

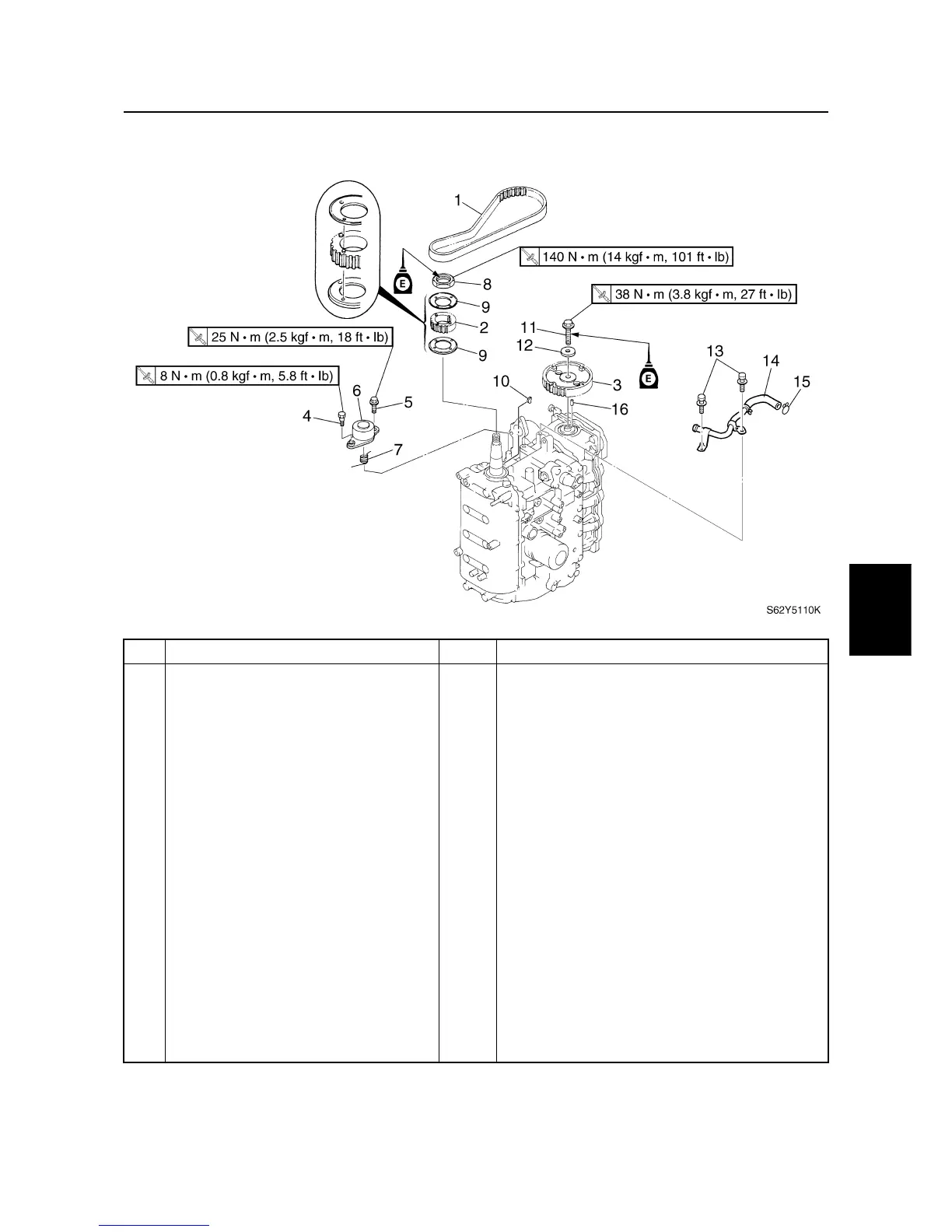

Timing belt and sprockets
5
No. Part name Q’ty Remarks
1 Timing belt 1
2 Drive sprocket 1
3 Driven sprocket 1
4Bolt 1
5Bolt 1 M8
×
20 mm
6 Tensioner 1
7Spring 1
8Nut 1
9 Retaining plate 2
10 Woodruff key 1
11 Bolt 1 M10
×
40 mm
12 Washer 1
13 Bolt 2 M6
×
20 mm
14 Blowby hose 1
15 Clip 1
16 Dowel pin 1
Power unit / Timing belt and sprockets
