Yamaha FT50C - Assembling the Tilt Cylinder

62Y5A11
7-40
1
2
3
4
5
6
7
8
9
CAUTION:
Do not damage the check valve
b
when
tightening the end screw.

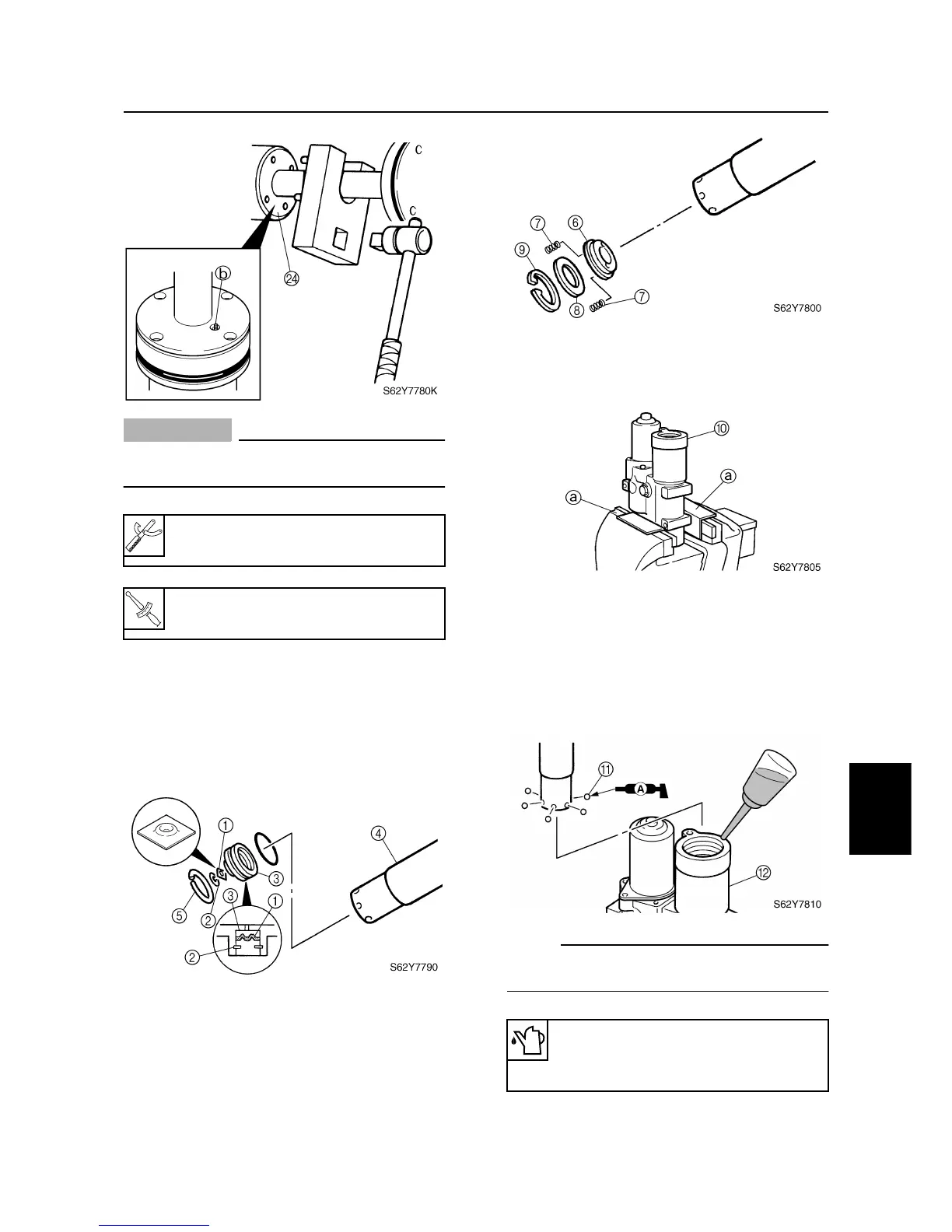

Assembling the tilt cylinder
1. Install the valve seal
1
and the circlip
2
into the free piston
3
as shown.
2. Install the free piston into the trim cylin-
der
4
by installing the circlip
5
.
3. Install the trim cylinder base
6
, springs
7
, and plate
8
into the trim cylinder with
the circlip
9
.
4. Hold the power trim
0
and in a vise
using aluminum plates
a
on both sides.
5. Add fluid of the recommended type to the
first level at the bottom of tilt cylinder.
6. Install the balls
A
into the trim cylinder,
and then insert the trim cylinder into the
tilt cylinder
B
.
NOTE:
Apply grease to the balls to prevent them
from falling out of the cylinder.
Cylinder-end screw wrench:
90890-06544
T
R
.
.
Trim cylinder end screw
N
:
80 N·m (8.0 kgf·m, 58 ft·lb)
Recommended power trim and tilt
fluid:
ATF Dexron
II
Gear pump
