LOWR
Lower unit
6-15
62Y5A11
Assembling the propeller shaft
assembly

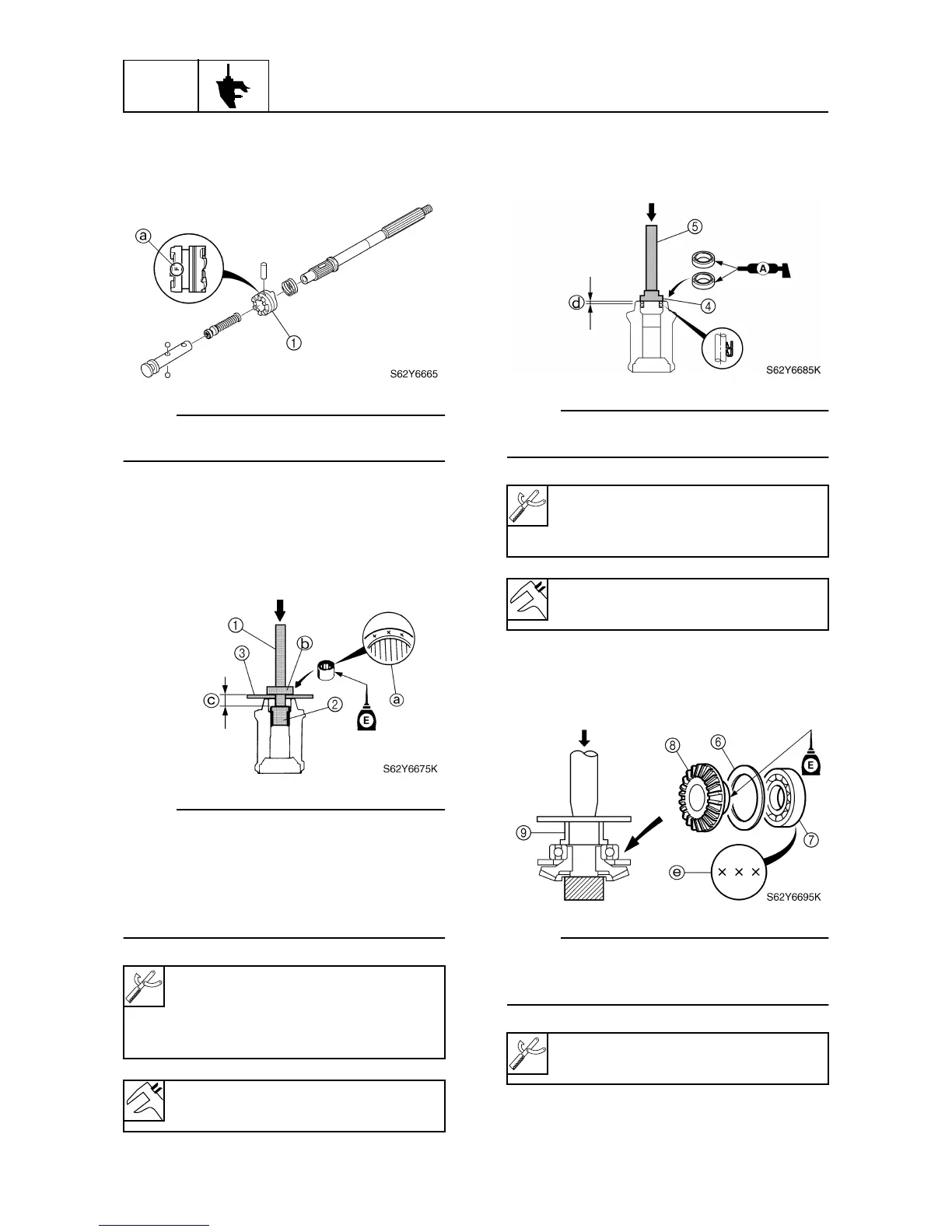

1. Install the dog clutch as shown.
NOTE:
Install the dog clutch
1
with the “F” mark
a
facing toward the shift slider.
Assembling the propeller shaft
housing
1. Install the needle bearing into the propel-
ler shaft housing to the specified depth.
NOTE:
• Install the needle bearing with the manufac-
ture identification mark
a
facing toward the
oil seal (propeller side).
• When using the driver rod, do not strike the
special tool in a manner that will force the
stopper
b
out of place.
2. Apply grease to the new oil seals, and
then install them into the propeller shaft
housing to the specified depth.
NOTE:
Install an oil seal halfway into the propeller
shaft housing, then the other oil seal.
3. Install the thrust washer
6
and ball bear-
ing
7
to the reverse gear
8
using a
press.
NOTE:
Install the ball bearing with the manufacture
identification mark
e
facing outward (propel-
ler side).
Driver rod SS
1
: 90890-06604
Needle bearing attachment
2
:
90890-06612
Bearing depth plate
3
: 90890-06603
Depth
c
:
25.0–25.5 mm (0.98–1.00 in)
Ball bearing attachment
4
:
90890-06655
Driver rod LS
5
: 90890-06606
Depth
d
: 4.5–5.5 mm (0.18–0.22 in)
Bearing inner race attachment
9
:
90890-06639
To Next Page
