Yamaha FT50C - Power Trim and Tilt Electrical System

BRKT
Bracket unit
7-47
62Y5A11

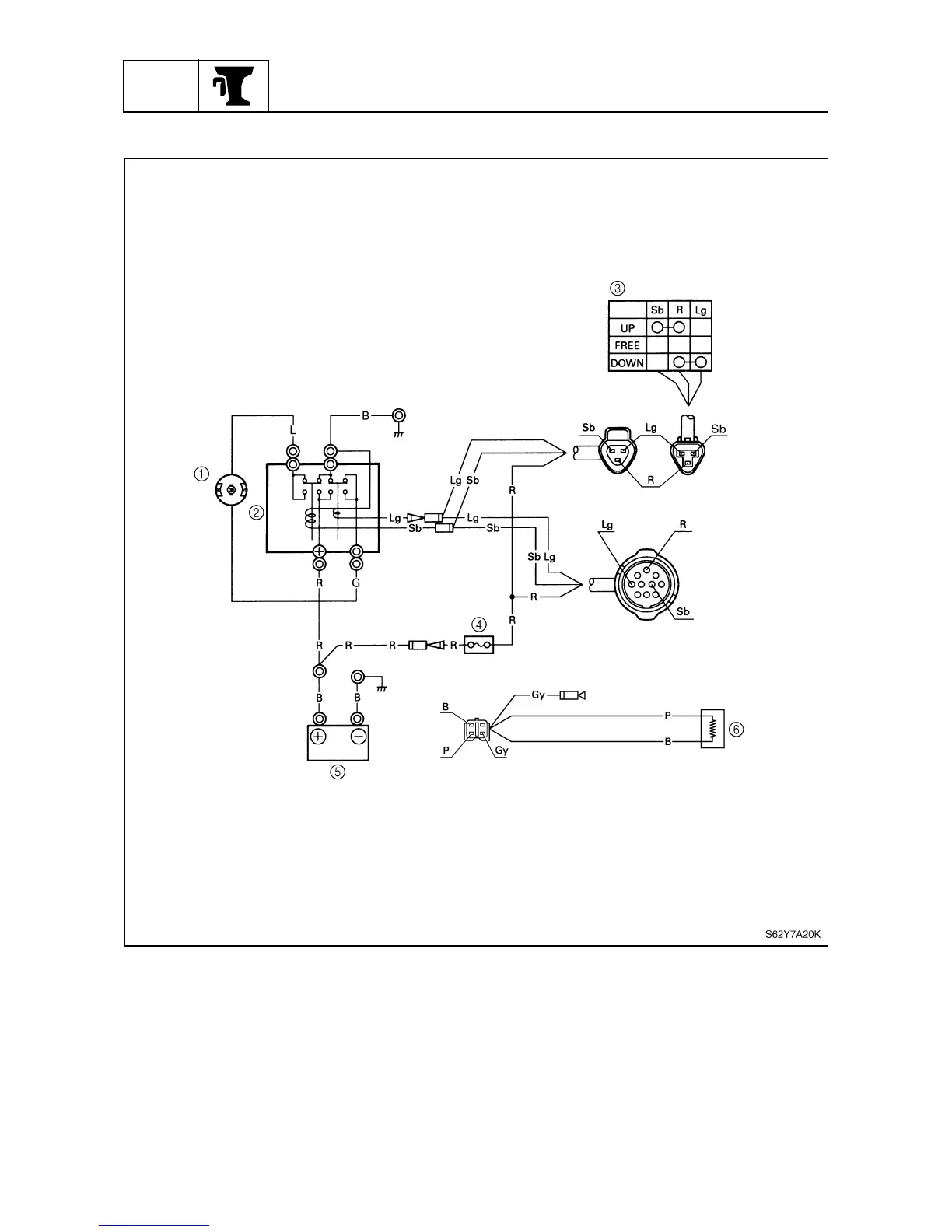

Power trim and tilt electrical system
7
1
Power trim and tilt motor
2
Power trim and tilt relay
3
Trailer switch
4
Fuse
5
Battery
6
Trim sensor
B: Black
G: Green
Gy : Gray
L: Blue
Lg : Light green
P: Pink
R: Red
Sb : Sky blue
