62Y5A11
7-26
1
2
3
4
5
6
7
8
9

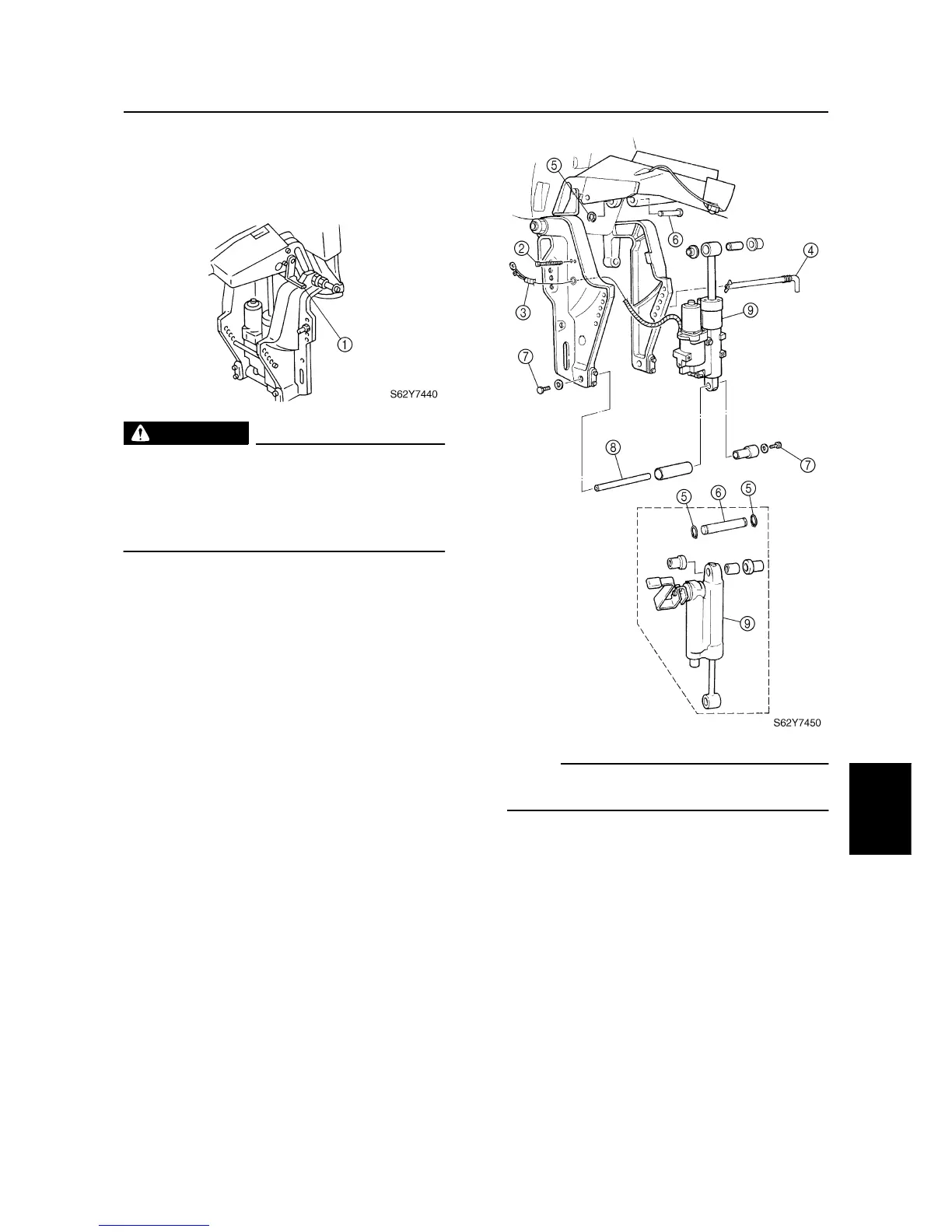

Removing the power trim and
tilt/hydro tilt
1. Fully tilt the outboard motor up, and then
support it with the tilt stop lever
1
.
WARNING
After tilting up the outboard motor, be
sure to support it with the tilt stop lever.
Otherwise, the outboard motor could sud-
denly lower if the power trim and tilt unit
should lose fluid pressure.
2. Loosen the plastic locking tie
2
, and
then pull out the PTT motor lead
3
.
3. Remove the tilt pin
4
.
4. Remove the circlip(s)
5
and the shaft
6
.
5. Loosen the bolt
7
, and then remove the
shaft
8
.
6. Remove the power trim and tilt/hydro tilt
9
.
NOTE:
To remove the power trim and tilt/hydro tilt,
lower the tilt rod slightly.
Power trim and tilt unit
To Next Page
