Yamaha FT50C - Installing the Upper Case

BRKT
Bracket unit
7-17
62Y5A11

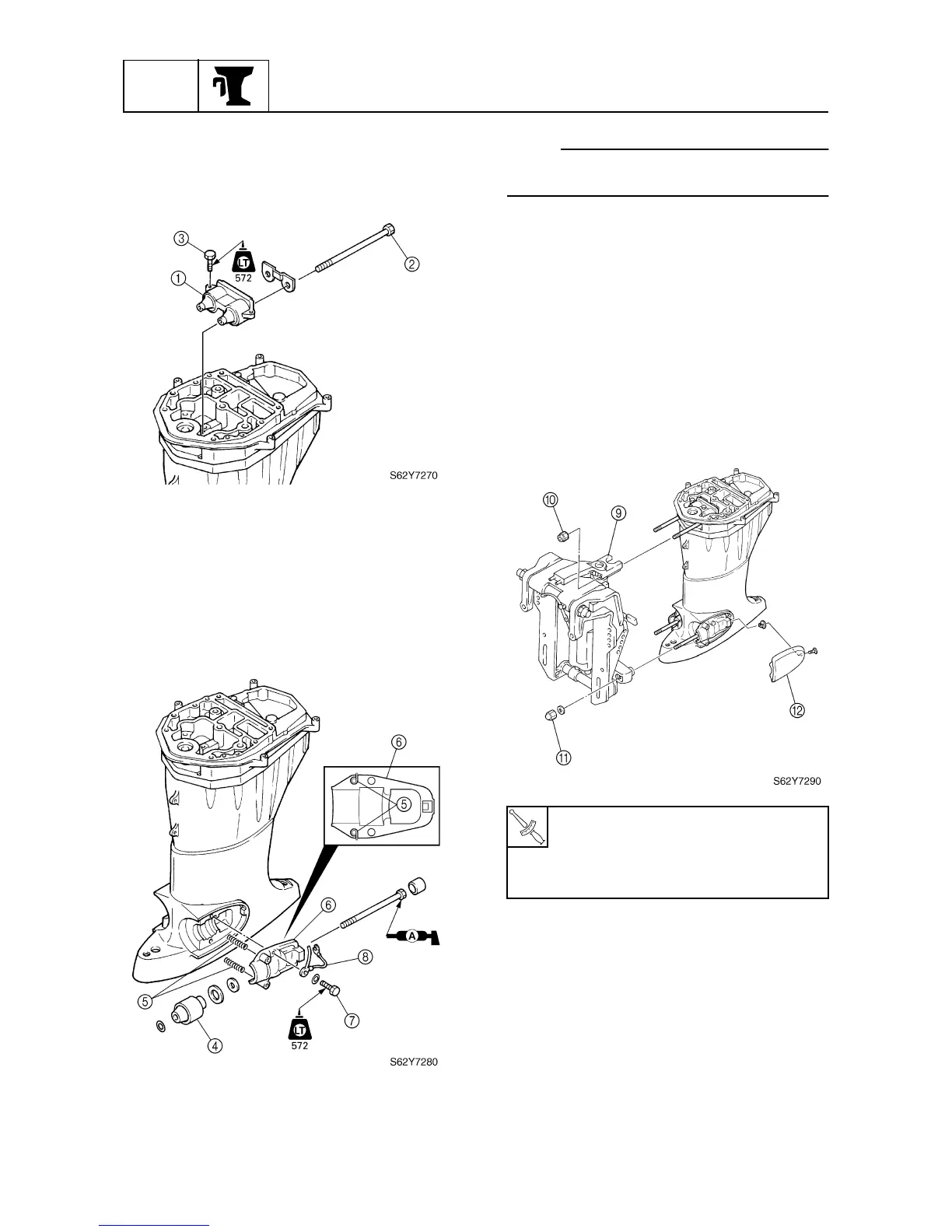

Installing the upper case
1. Install the upper mount
1
and bolts
2
into the upper case, and then tighten the
bolts
3
.
2. Set the lower mounts
4
and bolts to the
upper case.
3. Install the end of the spring
5
into the
groove of the mount housing
6
, and
then tighten the bolts
7
.
NOTE:
Be sure to install the ground lead
8
into the
mount housing
6
.
4. Install the upper and lower mounting
bolts into the swivel bracket
9
simulta-
neously.
5. Install the upper mounting nut
0
and
lower mounting nut
A
, and then tighten
them to the specified torques.
6. Install the cover
B
by installing the
screw.
T
R
.
.
Upper mounting nut
0
:
24 N·m (2.4 kgf·m, 17 ft·lb)
Lower mounting nut
A
:
42 N·m (4.2 kgf·m, 30 ft·lb)
