Yamaha FT50C - Checking the Pulser Coil Air Gap; Checking the Engine Start Switch; Checking the Engine Shut-Off Switch

ELEC
Electrical systems
– +
8-13
62Y5A11

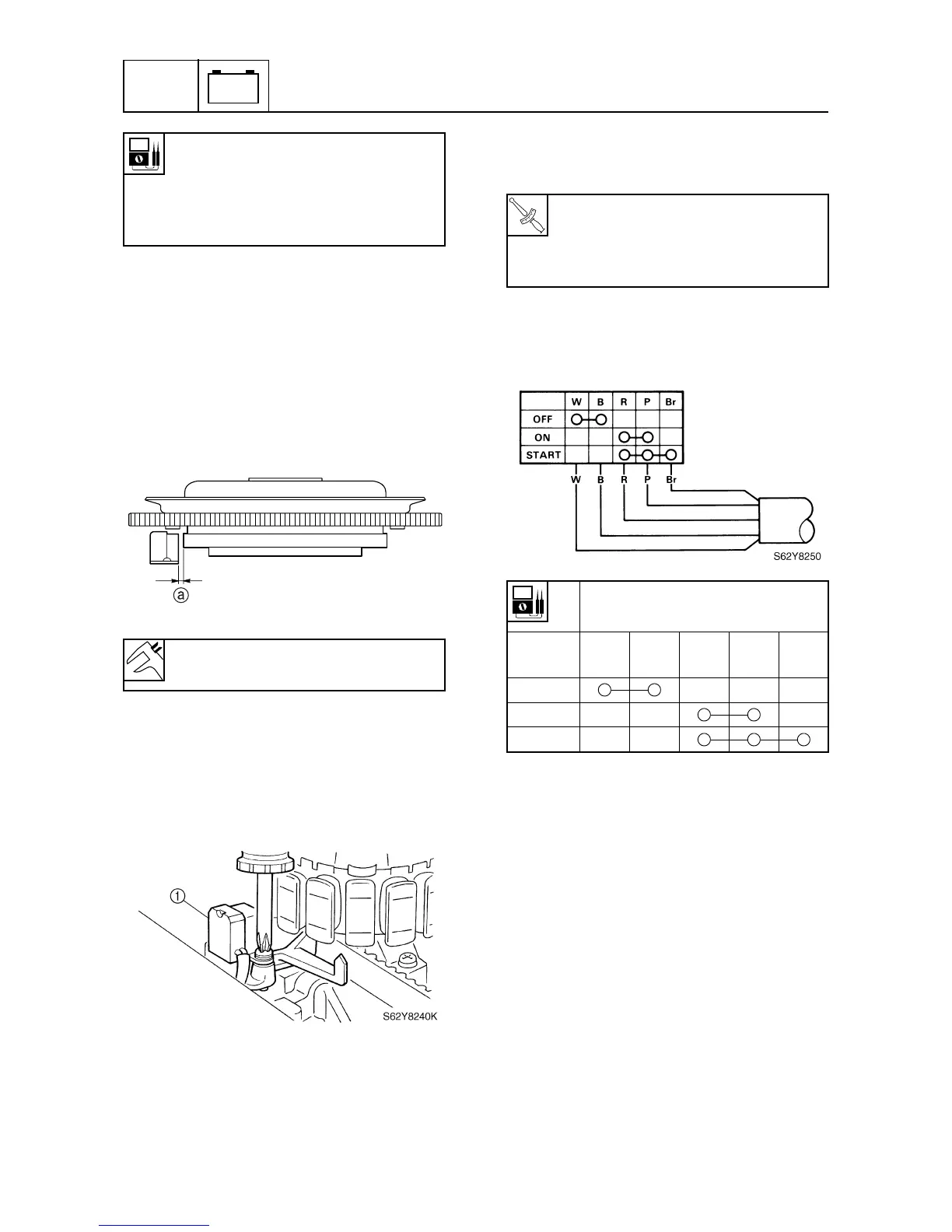

Checking the pulser coil air gap
1. Turn the flywheel clockwise to align the
projection of the flywheel with the pulser
coil projection.
2. Measure the gap between both projec-
tions with a thickness gauge. Adjust if out
of specification.
3. Remove the flywheel magnet nut and fly-
wheel magnet.
4. Loosen the pulser coil screws, adjust the
pulser coil
1
position, and then tighten
the screws finger tight.
5. Set the flywheel magnet and then check
the gap again and, if necessary, repeat
steps 3–5.
6. Tighten the pulser coil screws and fly-
wheel magnet nut to the specified
torques.
Checking the engine start switch
1. Check the engine start switch for continu-
ity. Replace if there is no continuity.
Checking the engine shut-off switch
1. Check the engine shut-off switch for con-
tinuity. Replace if there is no continuity.
Pulser coil resistance (use as
reference):
White/red (W/R) – White/black
(W/B)
396–594
Ω
at 20 °C (68 °F)
Pulser coil air gap
a
:
0.5–1.0 mm (0.020–0.039 in)
S62Y8230K
T
R
.
.
Pulser coil screw:
4 N·m (0.4 kgf·m, 2.9 ft·lb)
Flywheel magnet nut:
160 N·m (16 kgf·m, 116 ft·lb)
Lead color
Switch
position
White
(W)
Black
(B)
Red
(R)
Pink
(P)
Brown
(Br)
OFF
ON
START
