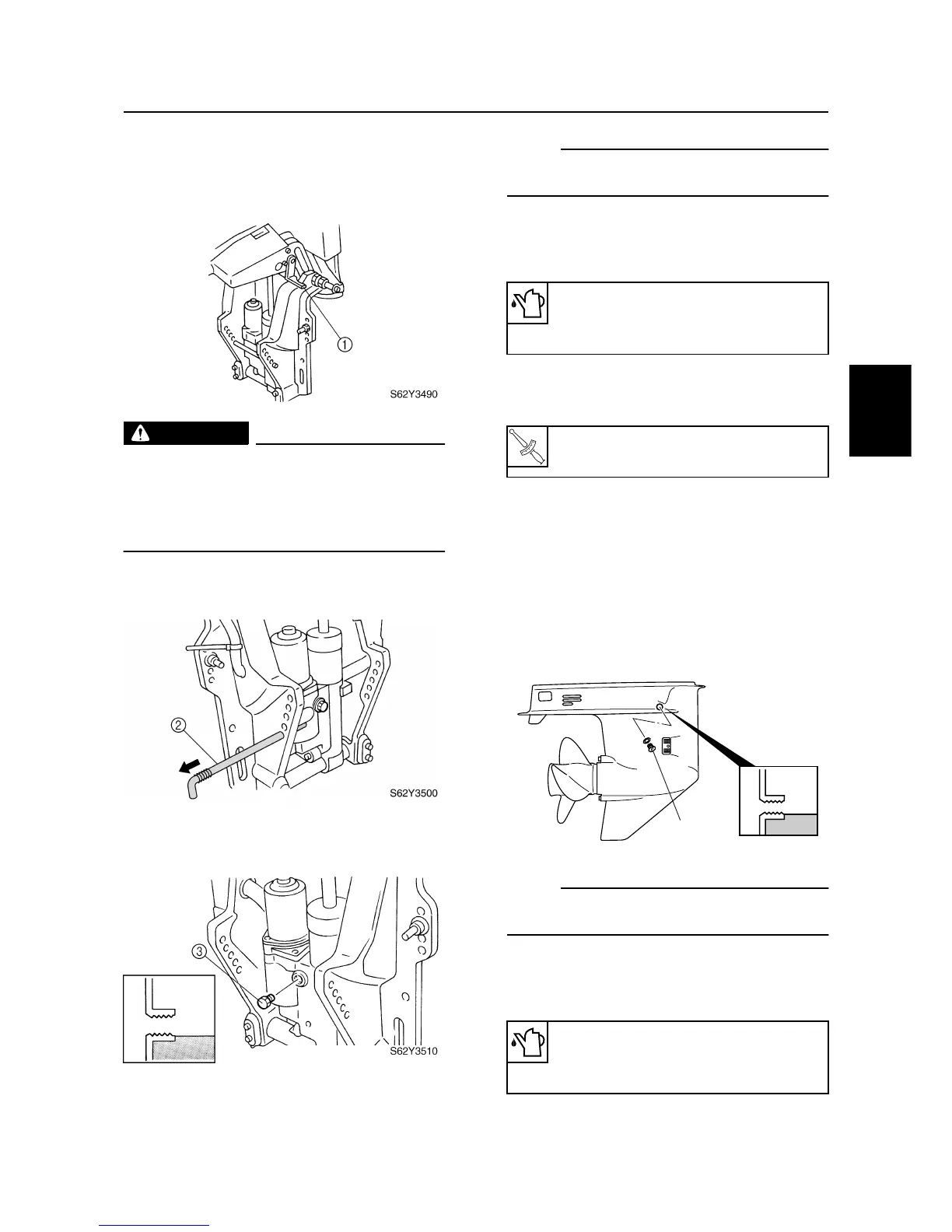

Checking the power trim and tilt fluid
level
1. Fully tilt the outboard motor up, and then
support it with the tilt stop lever
1
.
WARNING
After tilting up the outboard motor, be
sure to support it with the tilt stop lever.
Otherwise, the outboard motor could sud-
denly lower if the power trim and tilt unit
should lose fluid pressure.
2. Remove the tilt pin
2
.
3. Remove the reservoir cap
3
, and then
check the fluid level in the reservoir.
NOTE:
The fluid level should be at the brim of the
filler hole.
4. If necessary, add sufficient fluid of the
recommended type to the correct level.
5. Install the reservoir cap, and then tighten
it to the specified torque.
6. Install the tilt pin to its original position.
Lower unit
3
Checking the gear oil level
1. Fully tilt the outboard motor down.
2. Remove the check screw
1
, and then
check the gear oil level in the lower case.
NOTE:
The gear oil level should be at the brim of the
check hole.
3. If necessary, add sufficient gear oil of the
recommended type to the correct level.
Recommended power trim and tilt
fluid:
ATF Dexron
II
