Yamaha FT50C - Wiring Harness and Ignition System

ELEC
Electrical systems
– +
8-7
62Y5A11

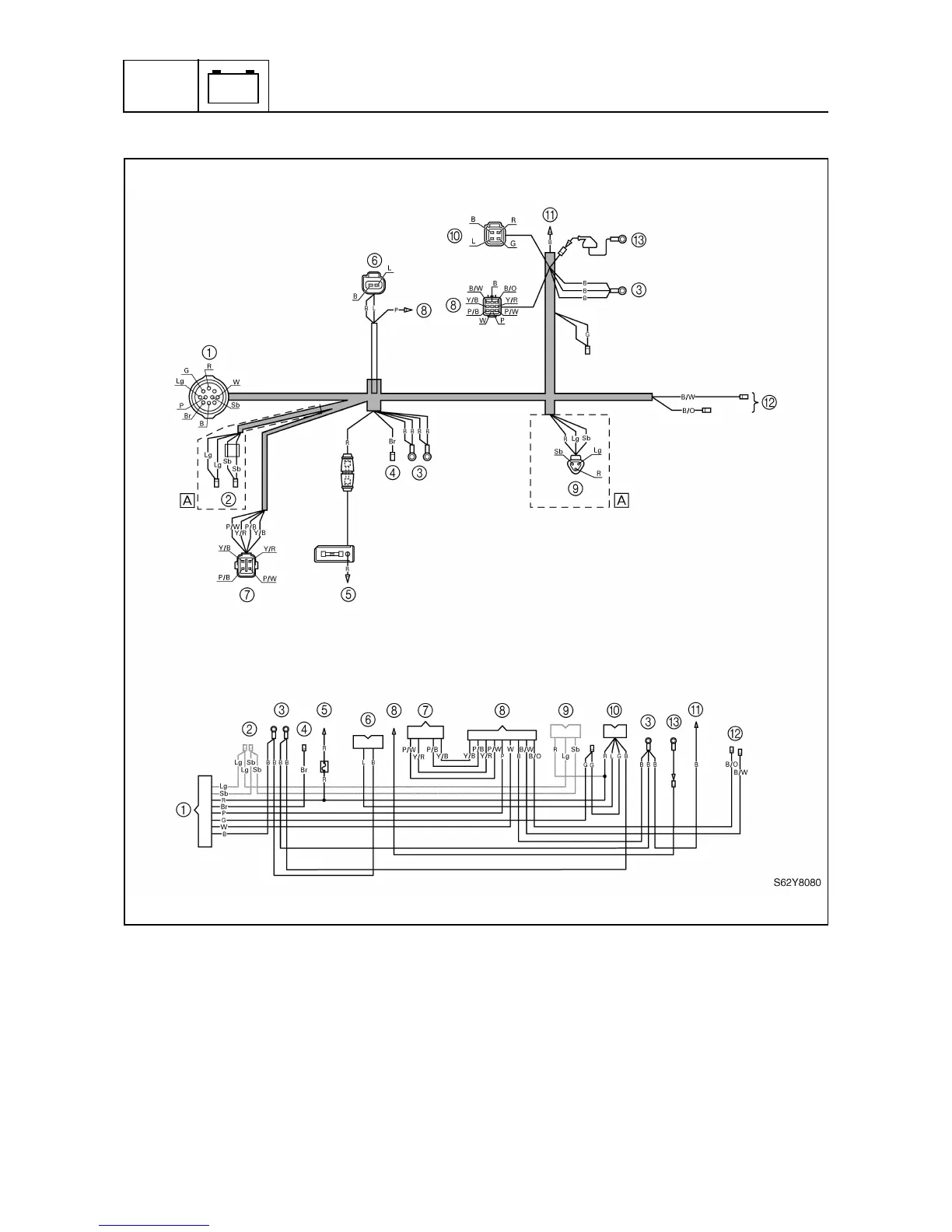

Wiring harness
8
Connect to:
1
Tiller handle main
switch or remote
control box or wiring
harness extension
2
Power trim and tilt
relay
3
Ground
4
Starter relay
5
Positive battery lead
6
Prime Start
7
Warning indicator or
digital tachometer
8
CDI unit
9
Trailer switch
0
Rectifier Regulator
A
Thermoswitch
B
Ignition coil
C
Oil pressure switch
È
Power trim and tilt
model
B: Black
Br : Brown
G: Green
L: Blue
Lg : Light green
P: Pink
R: Red
Sb : Sky blue
W: White
B/O : Black/orange
B/W : Black/white
P/B : Pink/black
P/W : Pink/white
Y/B : Yellow/black
Y/R : Yellow/red
