Yamaha FT50C - Checking the Throttle Cable and Shift Rod; Assembling the Tiller Handle

BRKT
Bracket unit
7-9
62Y5A11

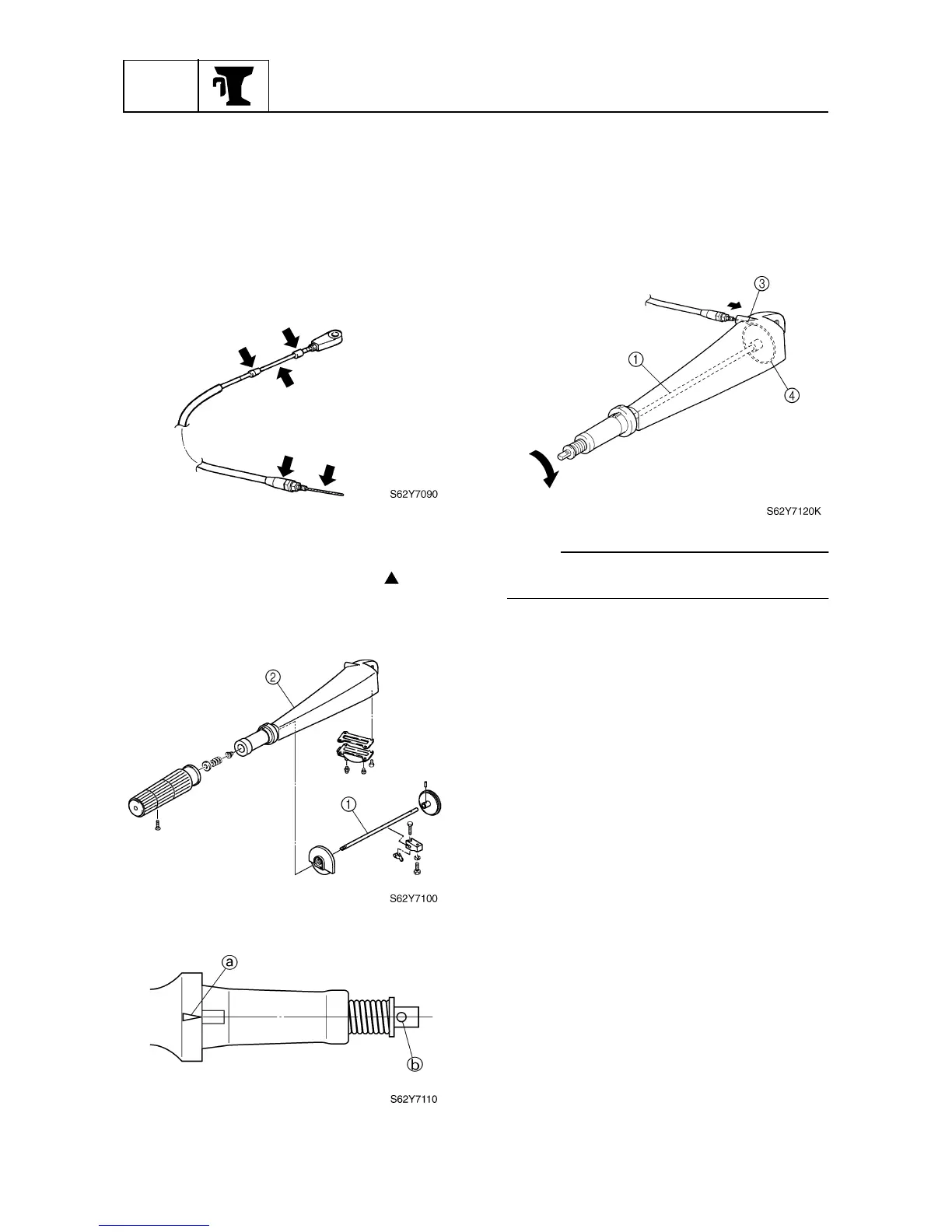

Checking the throttle cable and shift
rod
1. Check the operation of the throttle cable
and shift rod.
2. Check the inner wire, outer wire of the
cable and rod for bends or damage, and
the rubber seals for damage. Replace if
necessary.
Assembling the tiller handle
1. Install the throttle shaft
1
into the tiller
handle
2
by aligning the mark “”
a
of
the tiller handle with the screw hole
b
of
the throttle shaft.
2. Install the throttle cable
3
into the gear
4
until the inner cable is engaged with
the gear.
3. Turn the throttle shaft
1
clockwise to
wind the inner cable around the gear
4
.
NOTE:
Make sure that the throttle grip is fully closed
when installing the throttle cable.
