Yamaha FT50C - Assembling the Power Trim and Tilt Motor; Installing the Power Trim and Tilt

BRKT
Bracket unit
7-45
62Y5A11
7. Check the base for cracks or damage.
Replace if necessary.
8. Check the bushing
1
for damage or
wear. Replace if necessary.

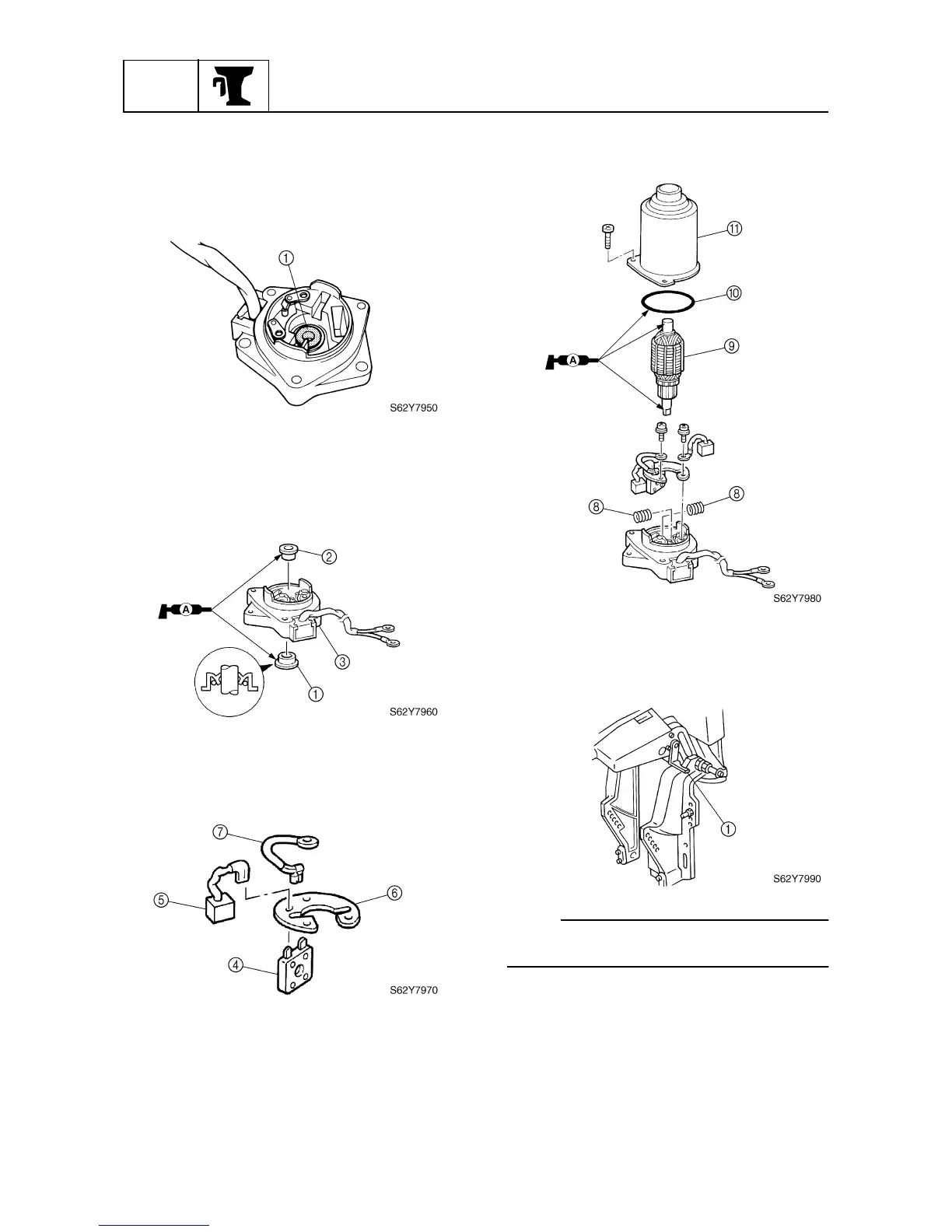

Assembling the power trim and tilt
motor
1. Install the oil seal
1
and the bushing
2
into the motor base
3
as shown.
2. Attach the circuit breaker
4
onto brush 1
5
together with the brush holder
6
and
connect the wire lead
7
.
3. Install the springs
8
into the motor base,
then the brush holder into the motor base
together with the brushes and circuit
breaker.
4. Install the armature
9
, O-ring
0
, and
yoke
A
.
Installing the power trim and tilt
1. Fully tilt the outboard motor up, and then
support it with the tilt stop lever
1
.
NOTE:
After tilting up the outboard motor, be sure to
support it with the tilt stop lever.
