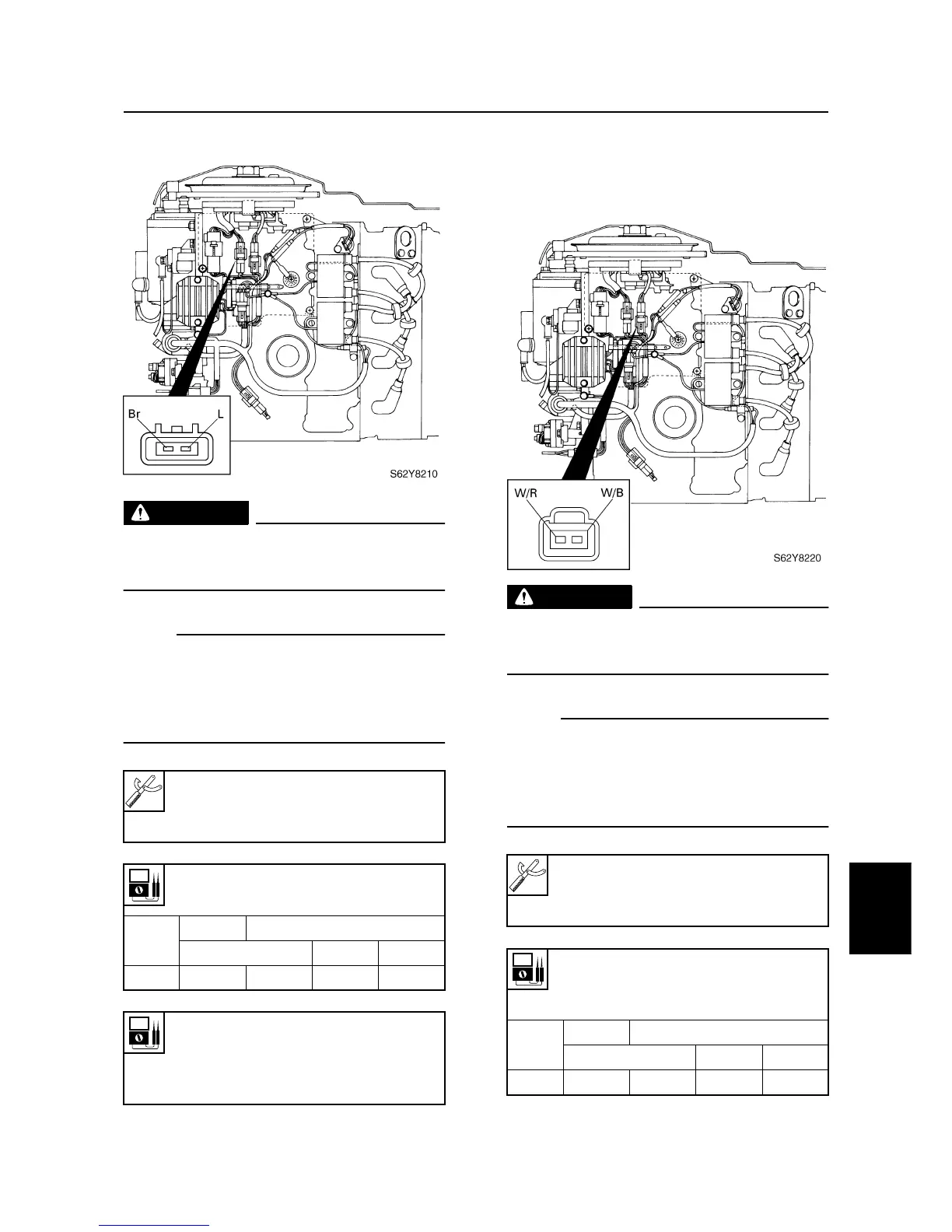

WARNING
When checking the peak voltage do not
touch any of the connections of the digital
tester leads.
NOTE:
• Use the peak voltage adaptor with the digi-
tal circuit tester.
• When measuring the peak voltage, set the
selector on the digital circuit tester to the
DC voltage mode
.
Checking the pulser coil
1. Measure the pulser coil output peak volt-
age. Replace the pulser coil if below
specification.
WARNING
When checking the peak voltage do not
touch any of the connections of the digital
tester leads.
NOTE:
• Use the peak voltage adaptor with the digi-
tal circuit tester.
• When measuring the peak voltage, set the
selector on the digital circuit tester to the
DC voltage mode
.
Digital circuit tester: 90890-03174
Peak voltage adaptor: 90890-03172
Test harness (2 pins): 90890-06767
Charge coil output peak voltage:
Brown (Br) – Blue (L)
r/min
Unloaded
Loaded
Cranking 1,500 3,500
DC V 144 137 169 129
Charge coil resistance (use as
reference):
Brown (Br) – Blue (L)
272–408
Ω
at 20 °C (68 °F)
Digital circuit tester: 90890-03174
Peak voltage adaptor: 90890-03172
Test harness (2 pins): 90890-06767
Pulser coil output peak voltage:
White/red (W/R) – White/black
(W/B)
r/min
Unloaded
Loaded
Cranking 1,500 3,500
DC V 6.3 3.5 7.4 11.2
