Yamaha FT50C - Power Trim and Tilt System Service

BRKT
Bracket unit
7-25
62Y5A11

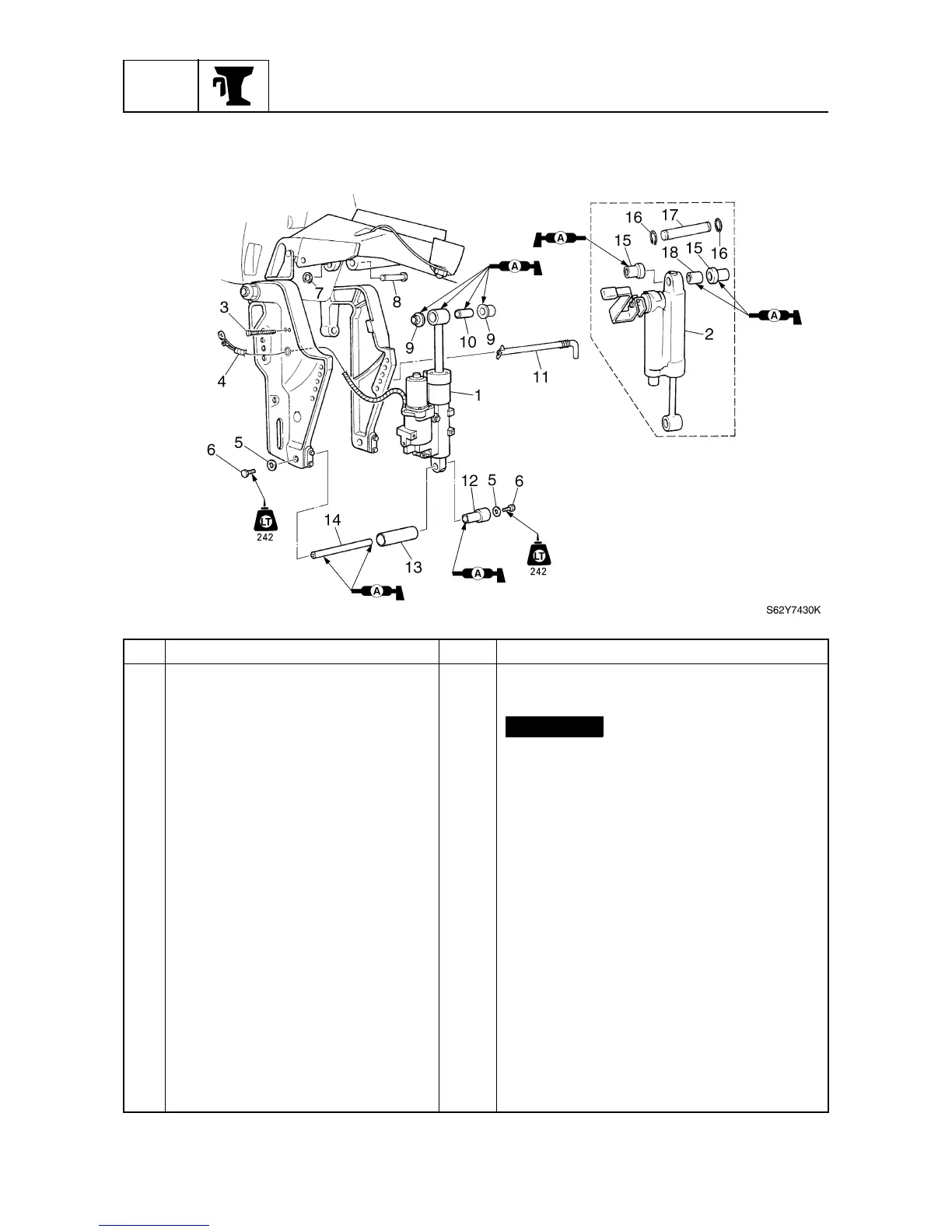

Power trim and tilt unit
7
No. Part name Q’ty Remarks
1 Power trim and tilt 1 ET model
2 Hydro tilt 1 EHD/ED models
3 Plastic tie 3
Not reusable
4 PTT motor lead 2
5 Washer 2
6Bolt 2 M8
×
16 mm
7 Circlip 1 ET model
8 Shaft 1 ET model
9 Bushing 2 ET model
10 Collar 1 ET model
11 Tilt pin 1
12 Collar 1
13 Collar 1
14 Shaft 1
15 Bushing 2 EHD/ED models
16 Circlip 2 EHD/ED models
17 Shaft 1 EHD/ED models
18 Collar 1 EHD/ED models
