Yamaha FT50C - Page 14

GEN
INFO
General information
1-9
62Y5A11
1

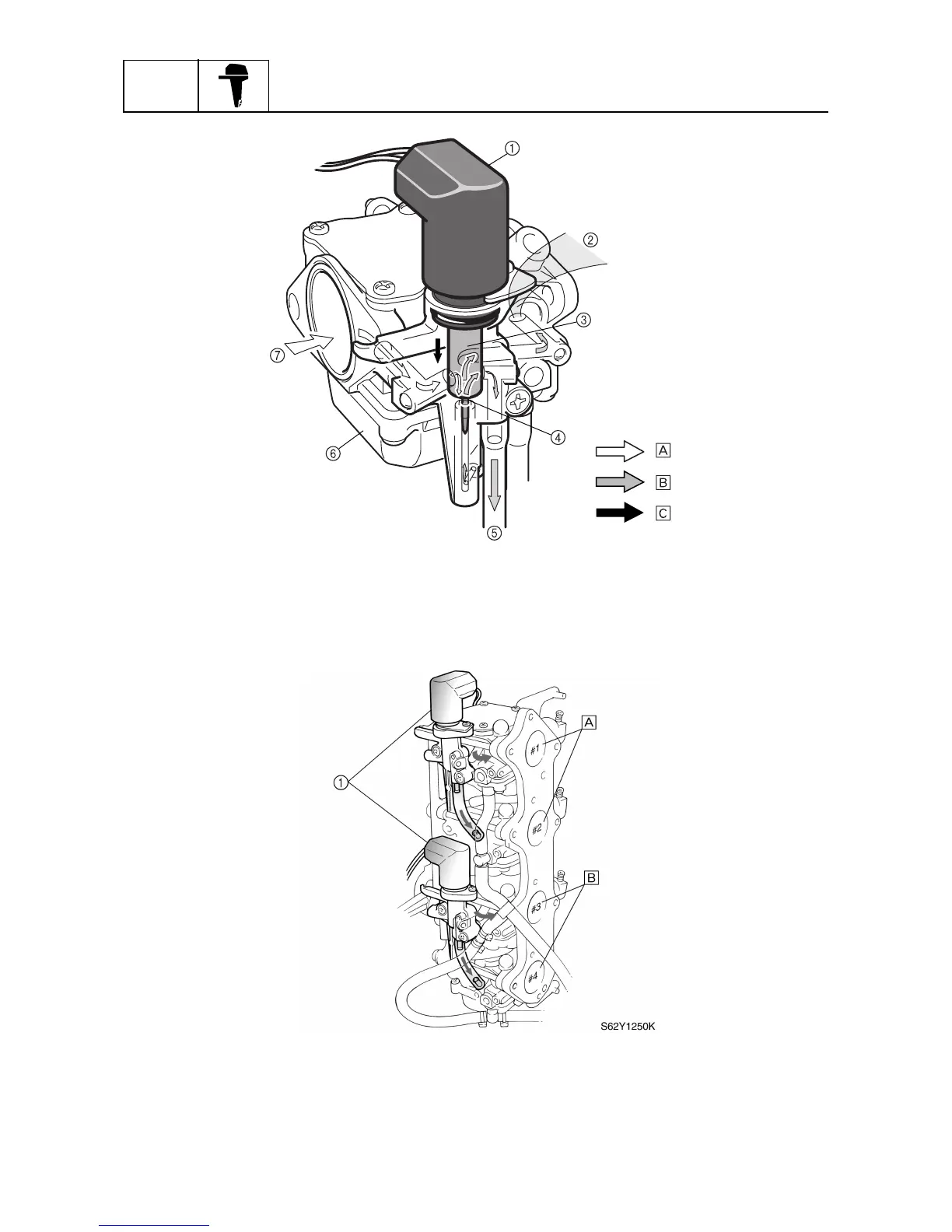

Prime Start
2
Intake manifold of the engine
3
Thermo heater plunger
4
Fuel enrichment valve
5
To carburetor #2 or #4
6
Carburetor
7
Intake silencer
È
Air
É
Fuel
Ê
Plunger movement
1
Prime Start
È
The enriched air-fuel mixture is delivered to
cylinders #1 and #2 by the Prime Start system
attached to carburetor #1.
É
The enriched air-fuel mixture is delivered to
cylinders #3 and #4 by the Prime Start system
attached to carburetor #3.
:
:
:
S62Y1240K
