Yamaha FT50C - Page 228

ELEC

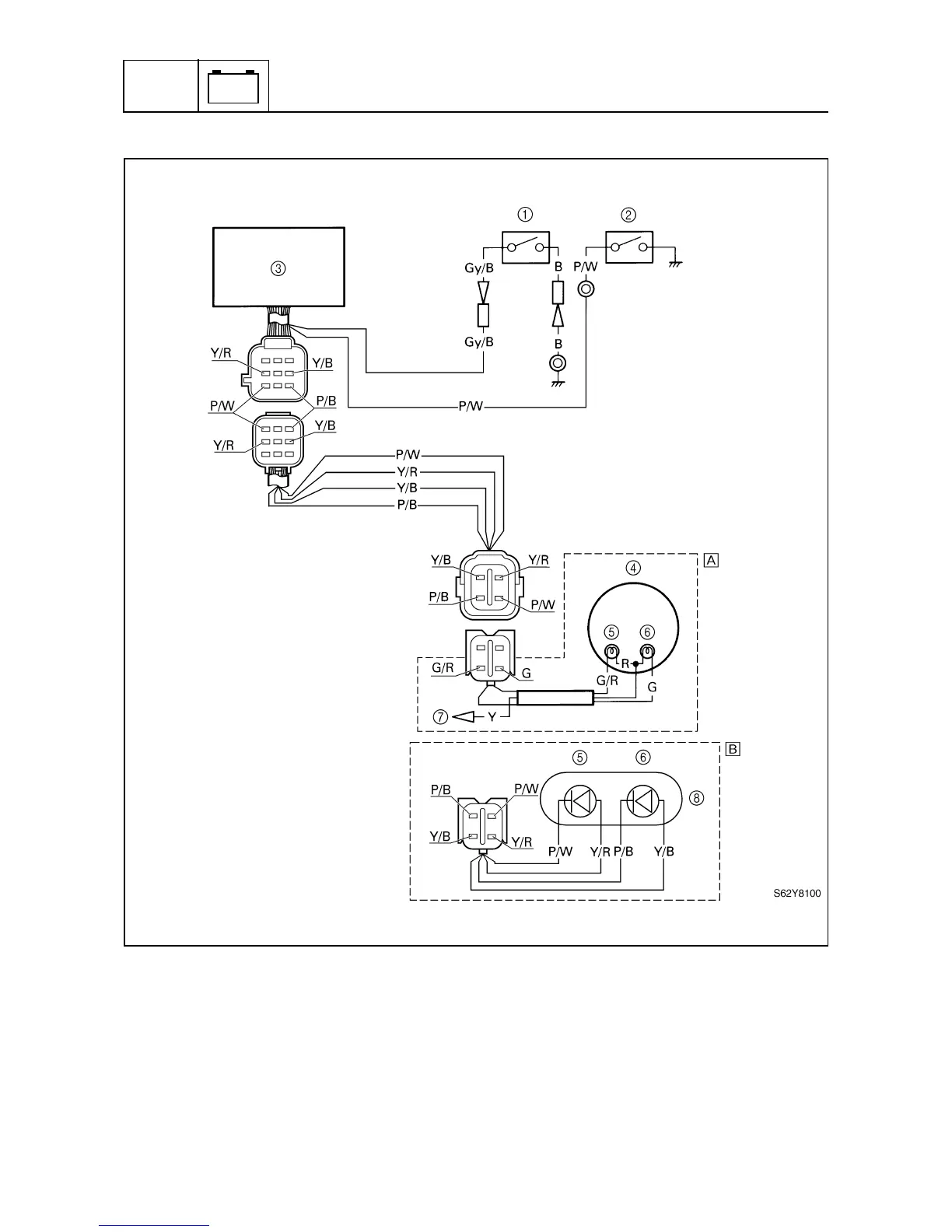

Electrical systems
– +
8-9
62Y5A11
8
1
Thermoswitch
2
Oil pressure switch
3
CDI unit
4
Digital tachometer
5
Oil pressure warning indicator
6
Overheat warning indicator
7
Remote control box
8
Warning indicator
È
Remote control model
É
Tiller handle model
B: Black
G: Green
R: Red
Y: Yellow
Gy/B : Gray/black
P/B : Pink/black
P/W : Pink/white
Y/B : Yellow/black
Y/R : Yellow/red
