Yamaha FT50C - Page 25

62Y5A11
1-20
1
2
3
4
5
6
7
8
9

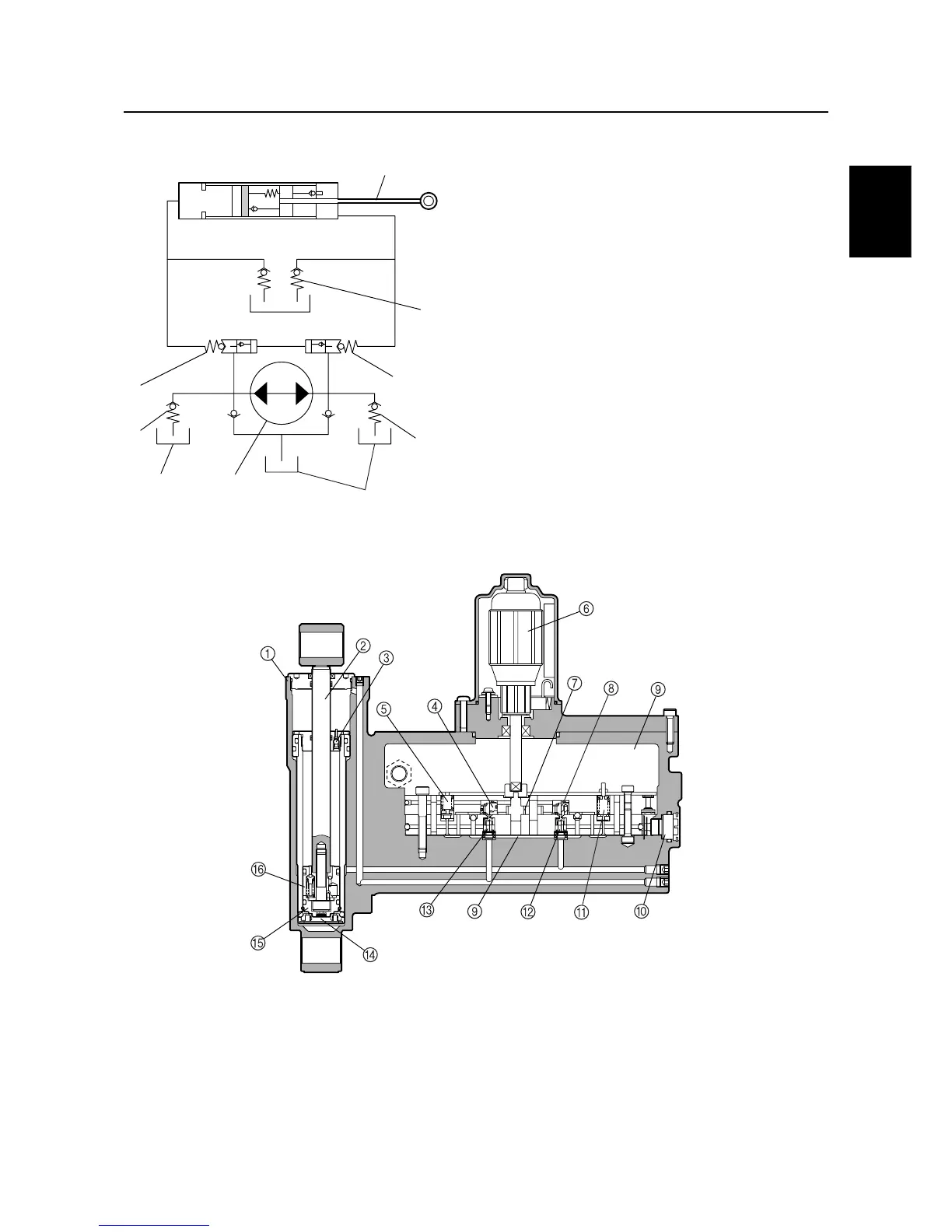

Hydraulic system diagram
1
Power trim and tilt cylinder
2
Ram
3
Reservoir
4
Manual valve
5
Down-main valve
6
Down-relief valve
7
Hydraulic pump
8
Up-relief valve
9
Up-main valve
Power trim and tilt components
1
Cylinder
2
Ram
3
Check valve
4
Down-main valve
5
Down-relief valve
6
Motor
7
Gear pump
8
Up-main valve
9
Reservoir
0
Manual valve
A
Up-relief valve
B
Up-shuttle piston
C
Down-shuffle piston
D
Trim cylinder base
E
Free piston
F
Tilt piston
1
2
4
5
6
3
73
8
9
3
S62Y1370
S62Y1380K
Technical tips
