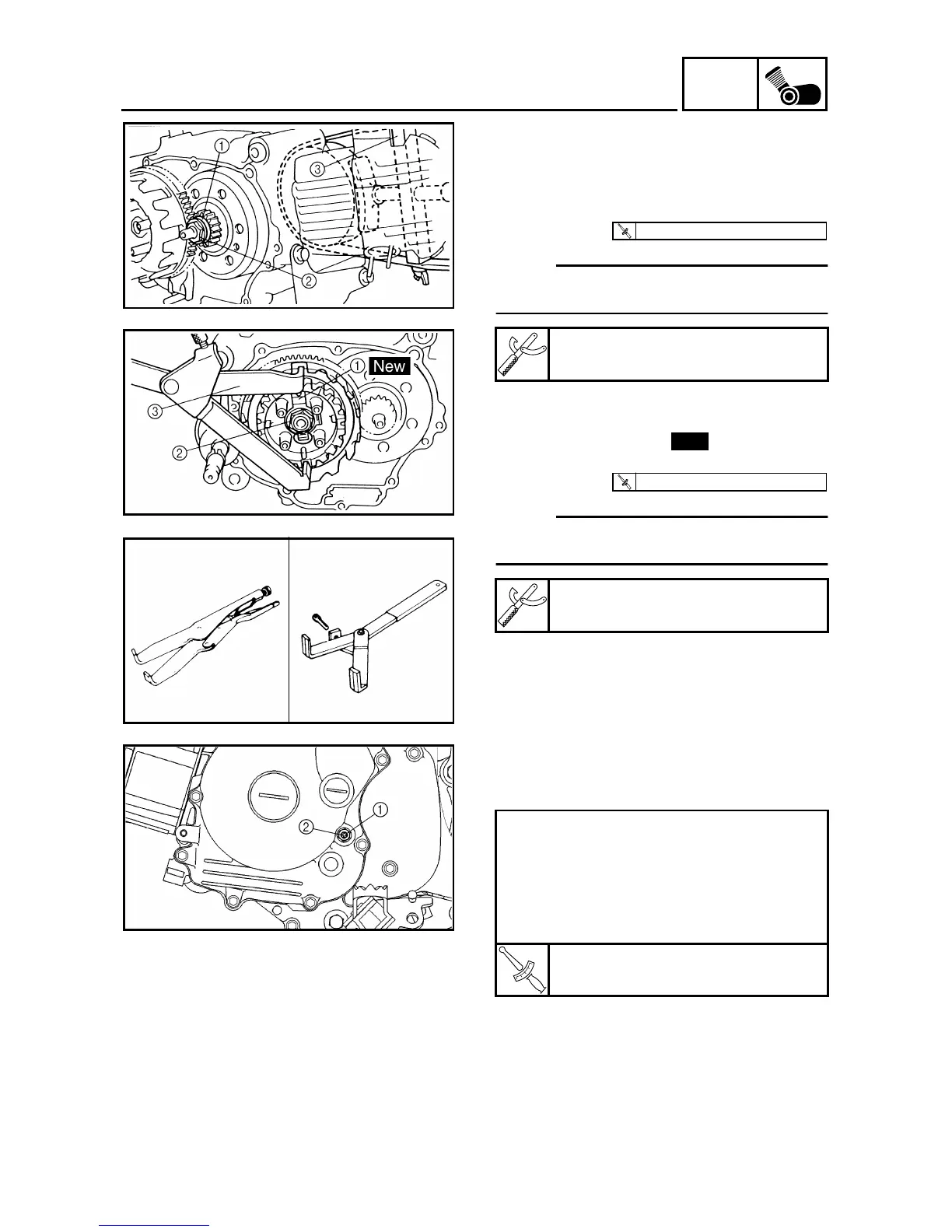

4 - 32
ENG
CLUTCH
ASSEMBLY AND INSTALLATION
Primary clutch
1. Install:
● Washer 1
● Nut (primary clutch) 2
NOTE:
Tighten the nut while holding the magneto
rotor with the sheave holder 3.
Clutch
1. Install:
● Lock washer 1
● Nut (clutch boss) 2
NOTE:
Use the clutch holding tool 3 to hold the clutch
boss.
Å For USA and CDN
ı Except for USA and CDN
2. Bend:
● Lock washer tab
Sheave holder:
YS-1880-A/90890-01701
Clutch holding tool:
YM-91042/90890-04086
T
R
.
.
50 Nm (5.0 m · kg, 36 ft · lb)
New
T
R
.
.
70 Nm (7.0 m · kg, 50 ft · lb)
Åı
Clutch release adjustment
1. Adjust:
● Clutch release
Adjustment steps:
● Loosen the locknut 1.
● Turn in the adjuster 2 until it is lightly
seated.
● Turn out by 1/8 turn.
● Tighten the locknut.
T
R
.
.
Locknut:
8 Nm (0.8 m • kg, 5.8 ft • lb)
To Next Page
