Yamaha TT-R90(T) User Manual

4 - 44
ENG

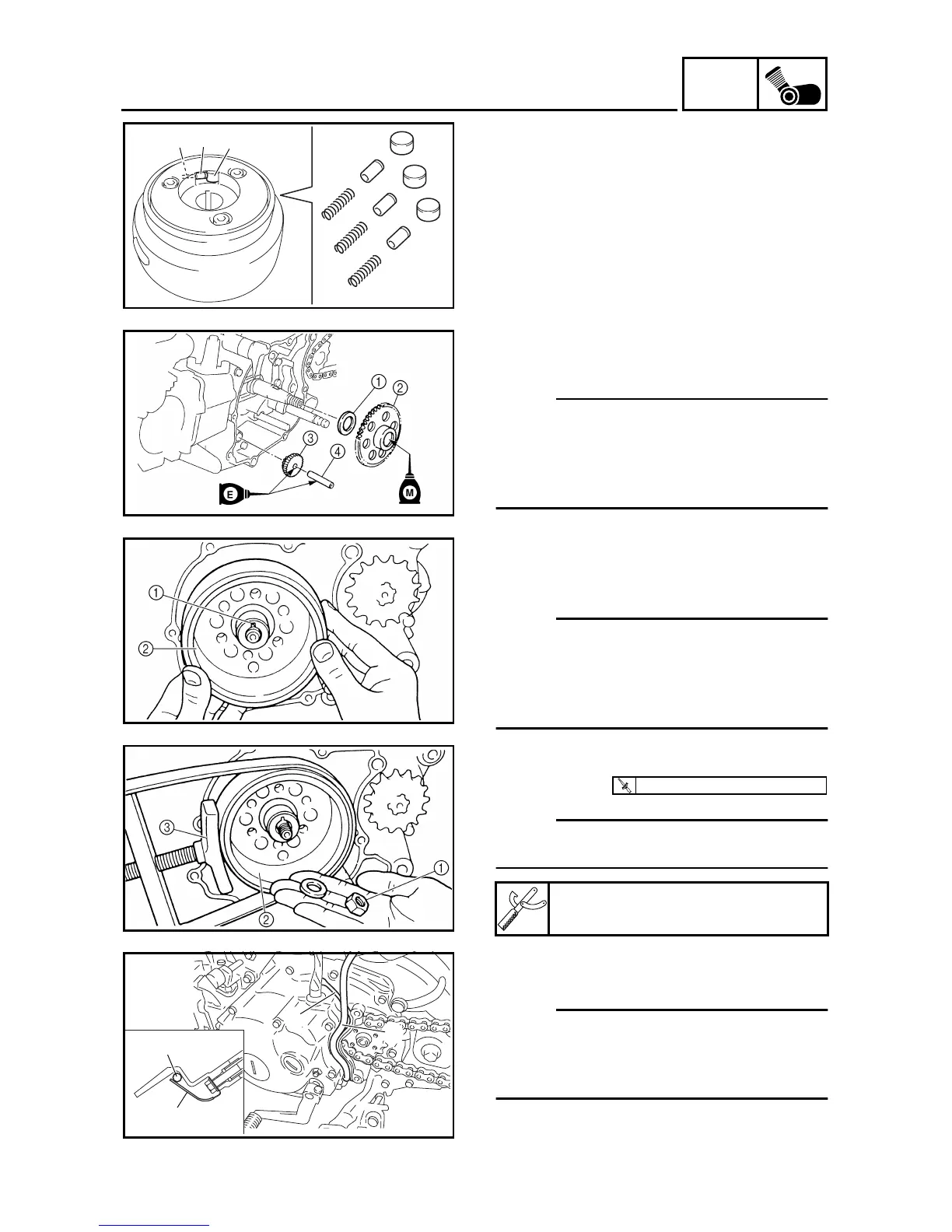

CDI MAGNETO AND STARTER CLUTCH (TT-R90E)
3. Install:
● Spring 1
● Spring cap 2
● Pin 3
4. Install:
● Shim 1
● Starter wheel gear 2
● Starter idle gear 3
● Shaft 4
NOTE:
● Apply the molybdenum disulfide oil on the
starter wheel gear inner circumference.
● Apply the engine oil on the starter idle gear
inner circumference and on the shaft outer
circumference.
1
2
3
1
2
3
5. Install:
● Woodruff key 1
● Rotor 2
NOTE:
● Clean the tapered portion of the crankshaft
and the magneto hub.
● When installing the magneto rotor, make
sure the woodruff key is properly seated in
the key way of the crankshaft.
6. Tighten:
● Nut (magneto) 1
NOTE:
Tighten the nut (magneto) 1 while holding the
magneto 2 with a sheave holder 3.
7. Install:
● Crankcase cover (left)
NOTE:
● Pass the starter motor lead 1 and neutral
switch lead 2 into the crankcase cover
groove as shown.
● Fasten the starter motor lead with the clamp 3.
Sheave holder:
YS-1880-A/90890-01701
T
R
.
.
48 Nm (4.8 m · kg, 35 ft · lb)
2
1
1
3
