Parameter Details
2
2.8 H: Terminal Function Selection
YASKAWA TOEPYAIGA5002A GA500 Programming 331
■ 67: Comparator2
Setting Value Function Description
67 Comparator2
The terminal activates if the monitor value set with H2-26 [Comparator 2 Monitor Selection] is not in the range of the values of H2-
27 [Comparator 2 Lower Limit] and H2-28 [Comparator 2 Upper Limit] for the time set in H2-30 [Comparator 2 On-Delay Time].
A - H2-30
[Comparator 2 On-Delay Time]
B - H2-31
[Comparator 2 Off-Delay Time]

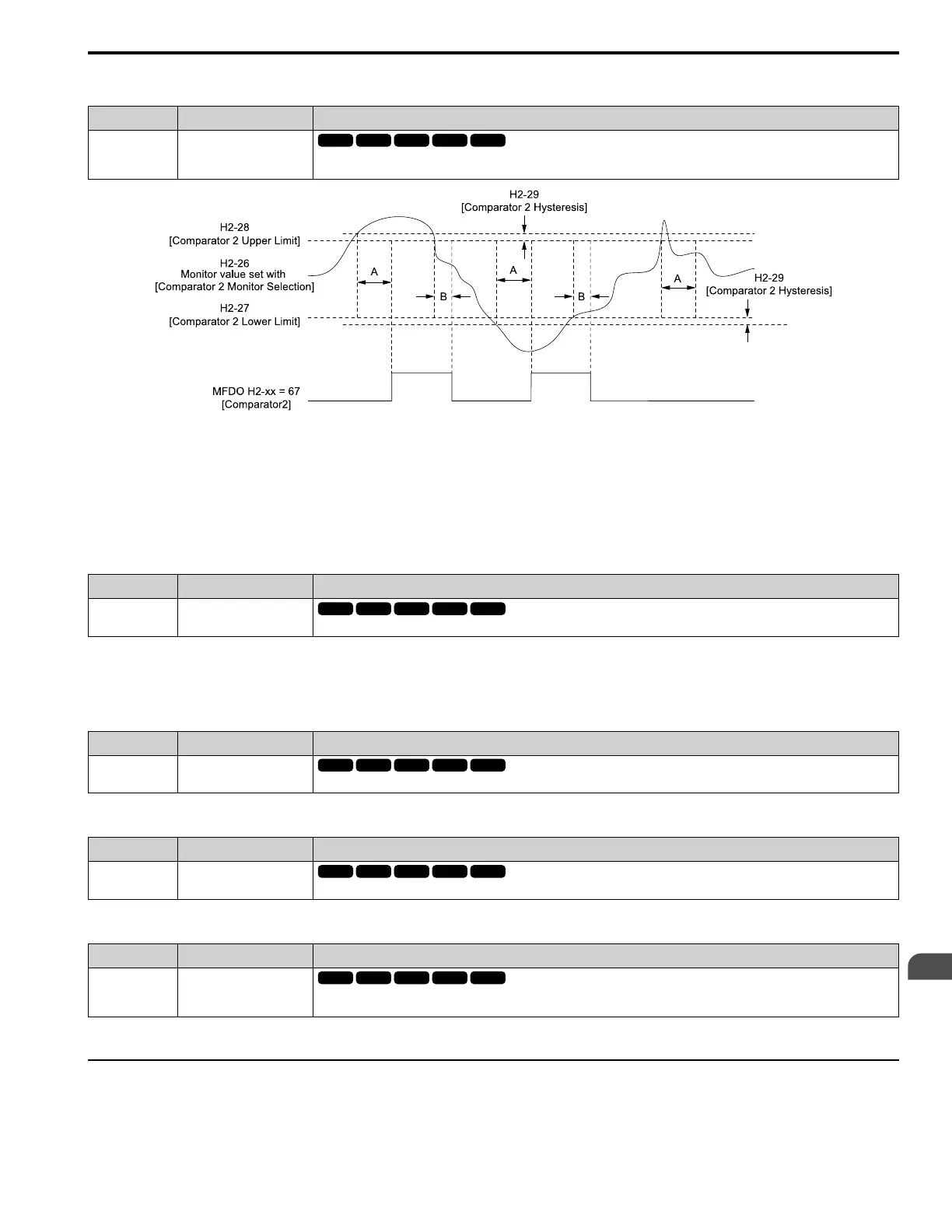

Figure 2.86 Comparator 2 Output Time Chart
Note:
The drive compares the monitors set with H2-26 as absolute values.
■ 69: External Power 24V Supply
Setting Value Function Description
69 External Power 24V Supply
The terminal activates when there is an external 24V power supply between terminals PS-AC.
ON : An external 24V power supply supplies power.
OFF : An external 24V power supply does not supply power.
■ 6A: Data Logger Error
Setting Value Function Description
6A Data Logger Error
The terminal activates when the drive detects LoG [Com Error / Abnormal SD card].
■ 90 to 92: DWEZ Digital Output 1 to 3
Setting Value Function Description
90 - 92 DWEZ Digital Output 1 to 3
Sets the DriveWorksEZ digital output. Refer to the DriveWorksEZ online manual for more information.
■ 100 to 192: Inverse output of 0 to 92
Setting Value Function Description
100 - 192 Inverse output of 0 to 92
Causes inverse output of the function for the selected MFDO. Uses the last two digits of 1xx to select which function to inversely
output.
For example, set H2-xx = 10E for the inverse output of E [Fault].
◆ H3: Analog Inputs
WARNING! Sudden Movement Hazard. Do test runs and examine the drive to make sure that the command references are correct.
If you set the command reference incorrectly, it can cause damage to the drive or serious injury or death.
