2.8 H: Terminal Function Selection
318 YASKAWA TOEPYAIGA5002A GA500 Programming
■ H2-66: Terminal P2 Secondary Function
No.
(Hex.)
Name Description
Default
(Range)
H2-66
(1B4C)
Expert
Terminal P2 Secondary
Function
Sets the second function for terminal P2-C2. Outputs the logical calculation results of the terminals
assigned to functions by H2-03 [Term P2 Function Selection].
F
(0 - FF)
■ H2-67: Terminal P2 Logical Operation
No.
(Hex.)
Name Description
Default
(Range)
H2-67
(1B4D)
Expert
Terminal P2 Logical
Operation
Sets the logical operation for the functions set in H2-03 [Term P2 Function Selection] and H2-66
[Terminal P2 Secondary Function].
0
(0 - 8)
Note:
Refer to Output of Logical Operation Results of MFDO on page 310 for more information about the relation between parameter settings and
logical operations.
■ H2-68: Terminal P2 Minimum ON Time
No.
(Hex.)
Name Description
Default
(Range)
H2-68
(1B4E)
Expert
Terminal P2 Minimum ON
Time
Sets the minimum ON time used to output the logical calculation results from terminal P2-C2.
0.1 s
(0.0 - 25.0 s)
◆ MFDO Setting Values
Selects the function configured to MFDO.
■ 0: During Run
Setting Value Function Description
0 During Run
The terminal activates when you input a Run command and when the drive is outputting voltage.

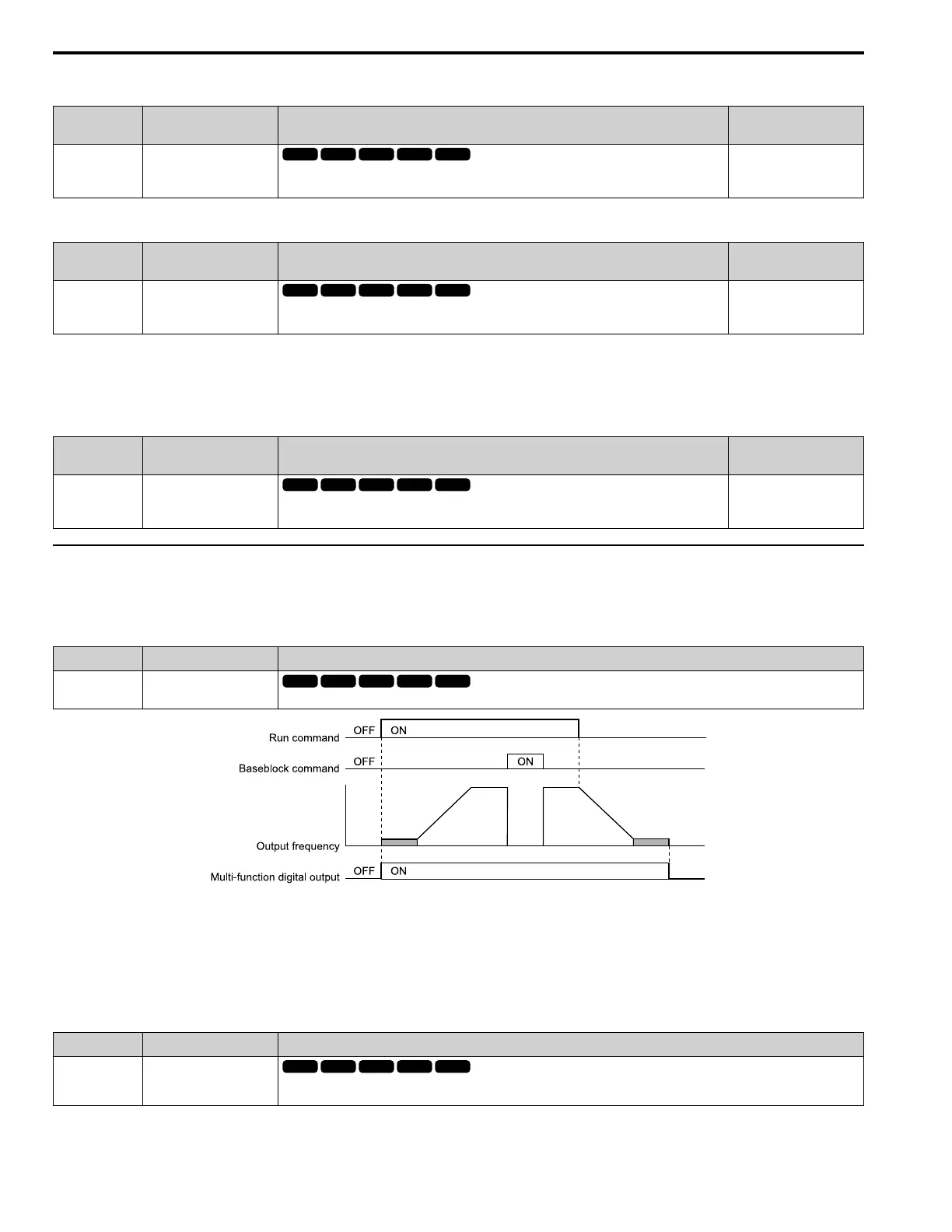

Figure 2.73 Drive Running Time Chart
ON : Drive is running
The drive is receiving a Run command or outputting voltage.
OFF : Drive is stopping
■ 1: Zero Speed
Setting Value Function Description
1 Zero Speed
The terminal turns on when the output frequency drops below the value of E1-09 [Minimum Output Frequency] or b2-01 [DC
Injection/Zero SpeedThreshold].
