2.8 H: Terminal Function Selection
YASKAWA TOEPYAIGA5002A GA500 Programming 353

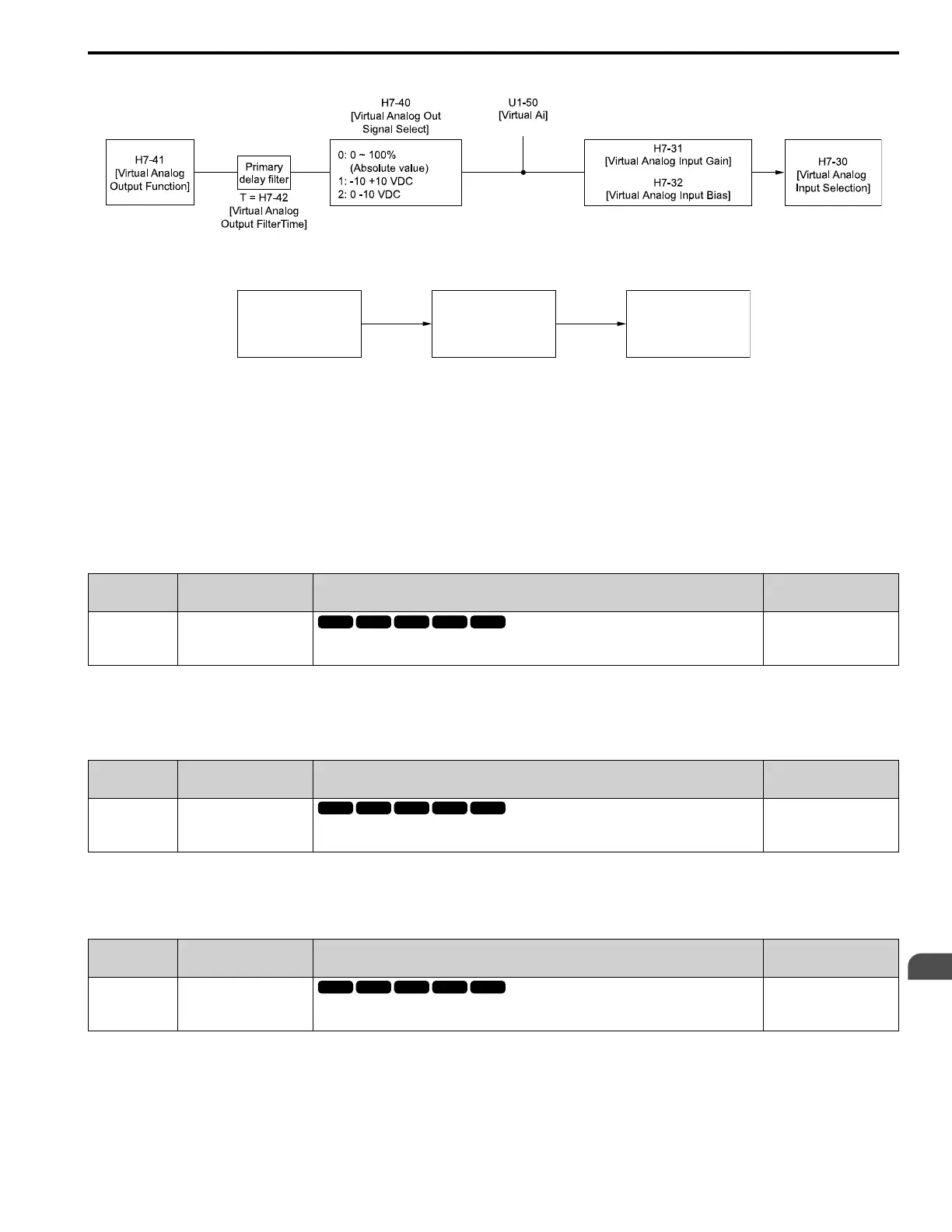

Figure 2.101 Virtual Analog I/O Functional Block Diagram
Figure 2.102 Virtual Digital I/O Functional Block Diagram
Note:
• Refer to MFDI Setting Values on page 291 for more information on the virtual digital input functions.
• Refer to MFDO Setting Values on page 318 for more information on the virtual digital output functions.
• Refer to Multi-Function Analog Input Terminal Settings on page 337 for more information on the virtual analog input functions.
• Refer to H4: Analog Outputs on page 343 for more information on the virtual analog output functions.
• You cannot set 0 [3-Wire Sequence] and 20 or 2F [External Fault] to H7-01 to H7-04 [Virtual Multi-Function Input 1 to 4].
• If you do not use virtual I/O, set H7-01 to H7-04 = F. This does not support the through mode.
■ H7-00: Virtual MFIO selection
No.
(Hex.)
Name Description
Default
(Range)
H7-00
(116F)
Expert
Virtual MFIO selection
Sets the function to enable and disable the virtual I/O function. Set this parameter to 1 to operate the
virtual I/O function.
0
(0, 1)
0 : Disabled
1 : Enabled
■ H7-01: Virtual Multi-Function Input 1
No.
(Hex.)
Name Description
Default
(Range)
H7-01
(1185)
Expert
Virtual Multi-Function Input
1
Sets the function that enters the virtual input set in H7-10 [Virtual Multi-Function Output 1].
F
(1 - 19F)
Note:
1B [Programming Lockout] and 11B [Inverse Input of 1B] are not available.
■ H7-02: Virtual Multi-Function Input 2
No.
(Hex.)
Name Description
Default
(Range)
H7-02
(1186)
Expert
Virtual Multi-Function Input
2
Sets the function that enters the virtual input set in H7-12 [Virtual Multi-Function Output 2].
F
(1 - 19F)
Note:
1B [Programming Lockout] and 11B [Inverse Input of 1B] are not available.
H7-01
[Virtual Multi-Function
Input 1]
H7-11
[Virtual Output
1 Delay Time]
H7-10
[Virtual Multi-Function
Output 1]
To Next Page
