14.6.11 Analog Input Characteristics Response Chart

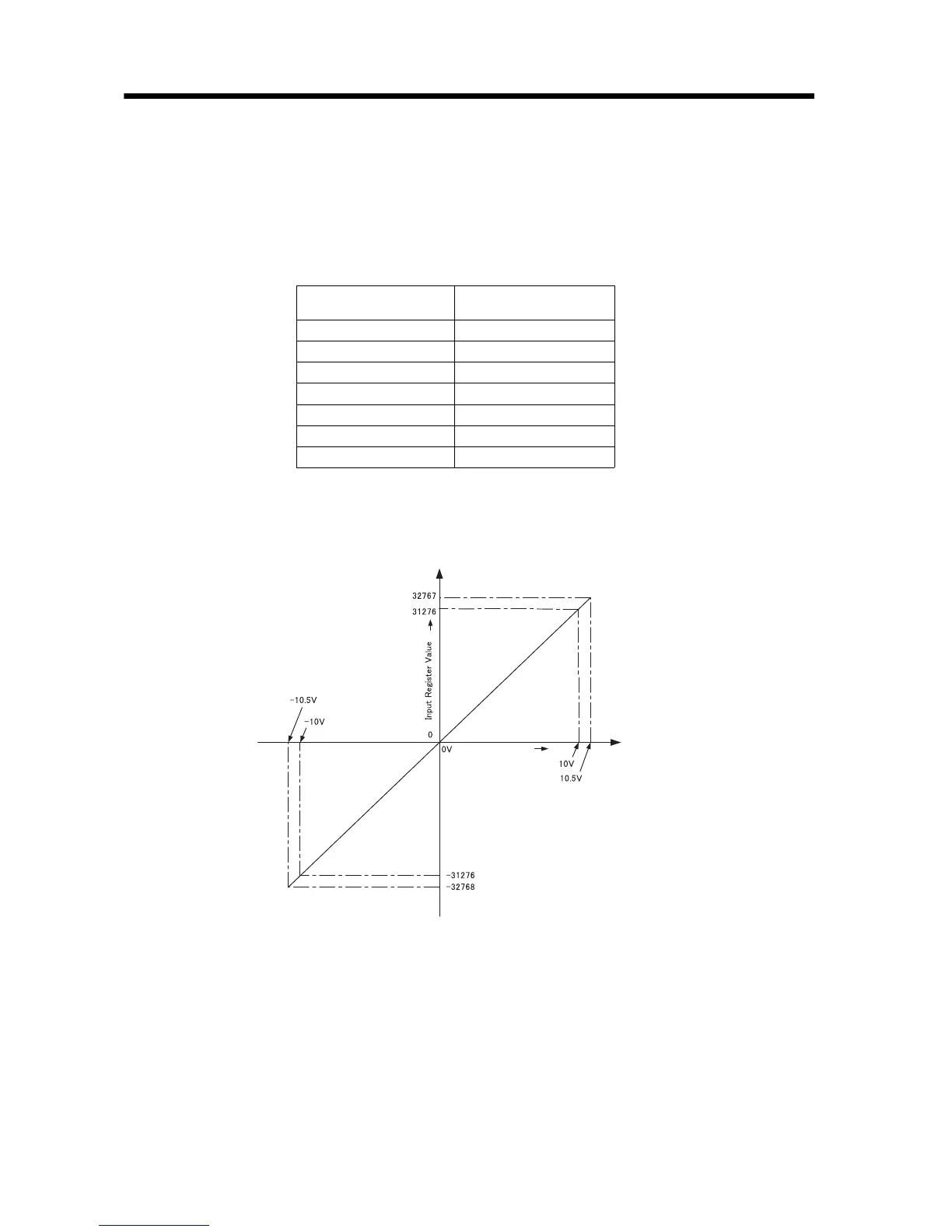

The following shows an analog input response chart and input
characteristics diagram for the LIO-06 module.
Input Characteristics Response Chart
* Minimum linearity of +10.0V cannot be assured.
Voltage Input Characteristics Diagram
Analog Input Value Input Register Value
-10.5V -32768
-10.0V -31276
-5.0V -15638
0.0V 0
+5.0V 15638
+10.0V 31276
+10.5V 32767
