14.6 LIO-06 Module
14.6.12 Analog Output Circuit
99

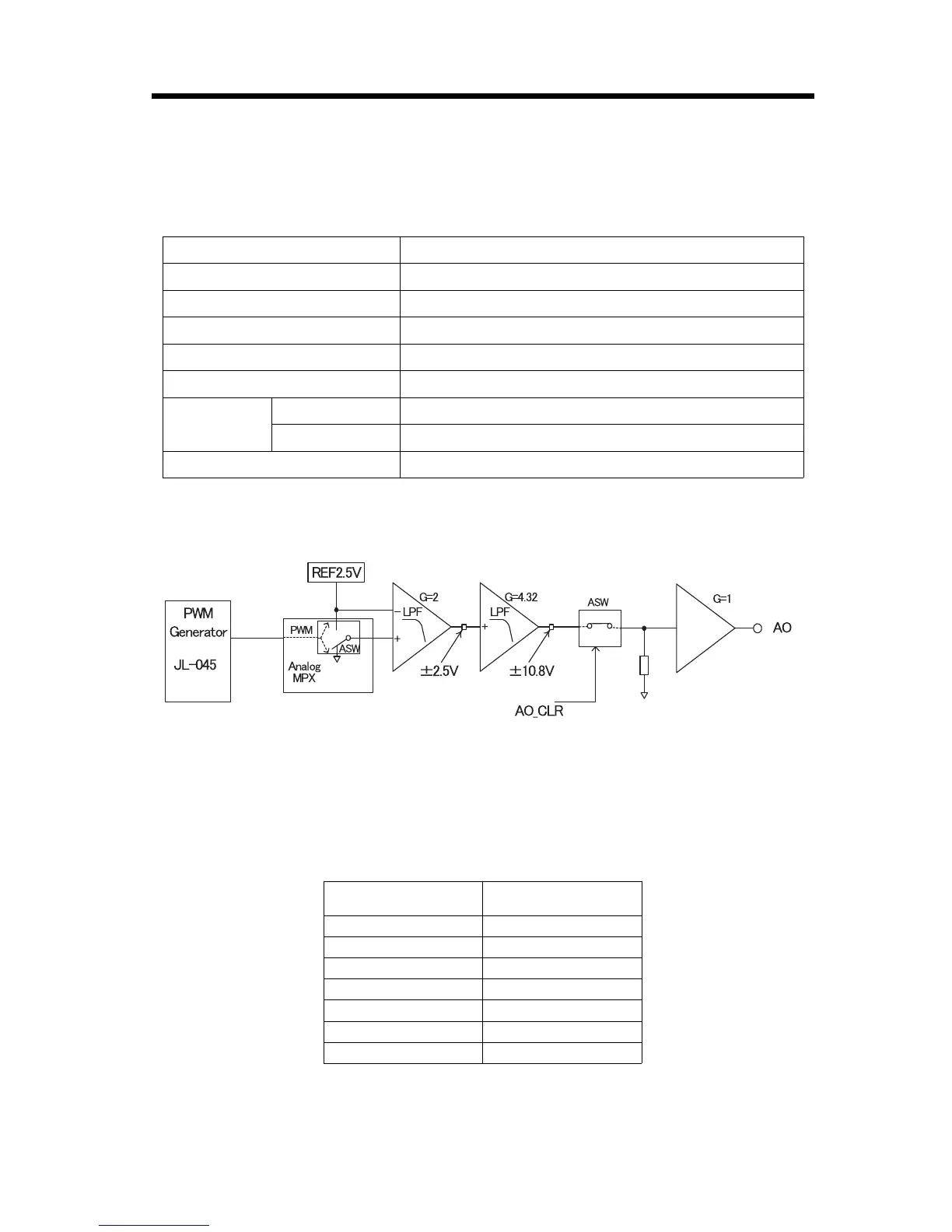

14.6.12 Analog Output Circuit
The specifications of the LIO-06 analog output circuit are shown
below.
14.6.13 Analog Output Circuit Connection Example
14.6.14 Analog Output Characteristics Response Chart
The following shows an analog output response chart and output
characteristics diagram for the LIO-06 module.
Output Characteristics Response Chart
Item Specification
Output Range
-10 to +10V
Number of Output Channels
1
Isolation
Non-isolated
Maximum Permissible Load Current
±5mA
Resolution
16-Bit (-31276 to +31276)
Absolute
25ºC
±0.1% (±10mV)
0 to 55ºC
±0.3% (±30mV)
Output Delay Time
1.2ms (Time of change from -10+10V)
Analog Output Value Output Register Value
-10.5V -32768
-10.0V -31276
-5.0V -15638
0.0V 0
+5.0V 15638
+10.0V 31276
+10.5V 32767
