5.1 DIN Rail Method
5.1.4 Space Required for Mounting MP23iec
25
5.1.4 Space Required for Mounting MP23iec

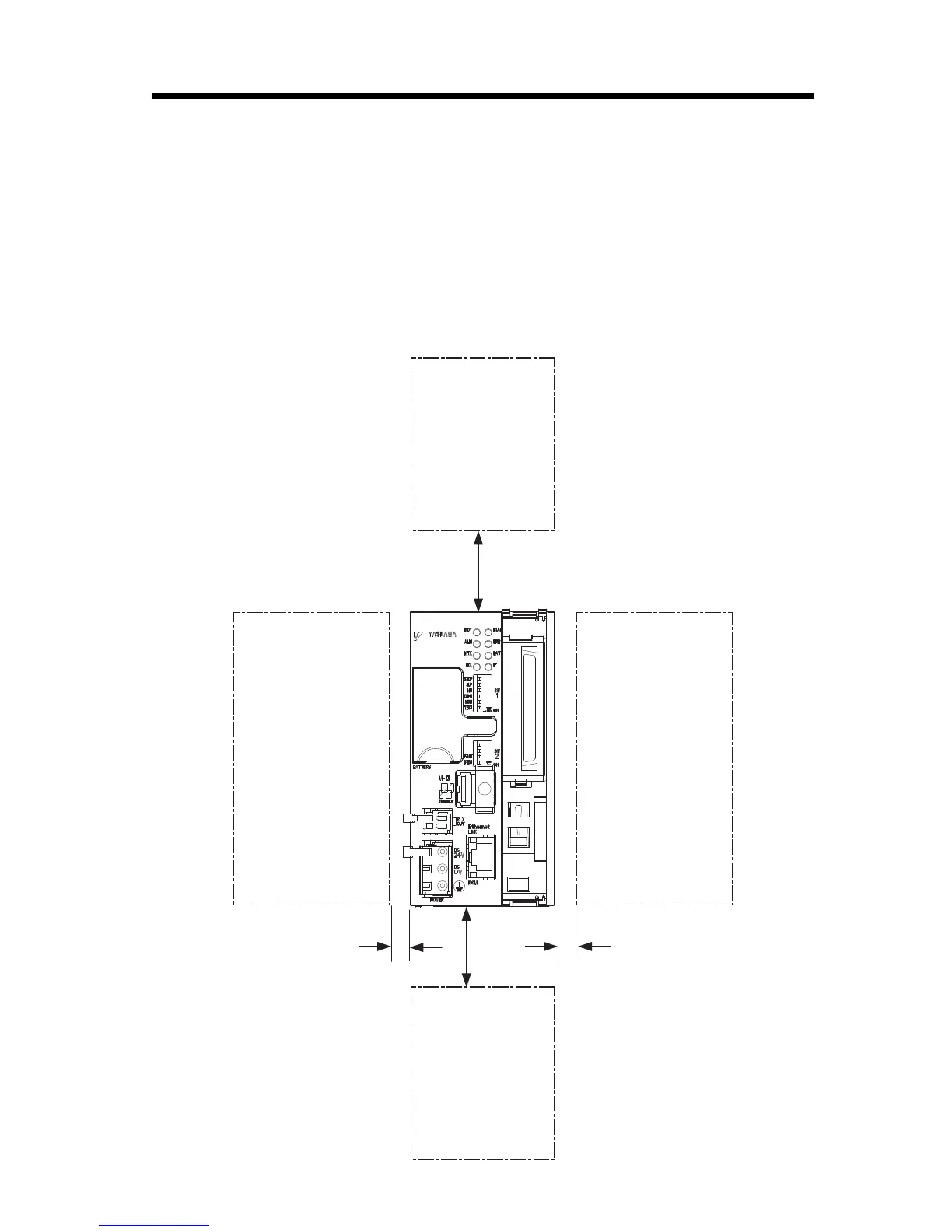

Install MP23iec so that enough space is left around it as
shown in the figure below:
 Mount condition
• Vertical direction: 40 mm or more
• Horizontal direction: 10 mm or more
• Ambient Temperature: 55C or less.
10 mm or more
10 mm or more
40 mm or more
40 mm or more
/25KGE
Electronic product,
Wall, Cable, Duct,
etc.
Electronic product,
Wall, Cable, Duct,
etc.
Electronic product,
Wall, Cable, Duct,
etc.
Electronic product,
Wall, Cable, Duct,
etc.
