YASKAWA MP2300Siec User Manual

5.1
DIN Rail Method
5.1.5
Replacing and Adding Option Modules
28

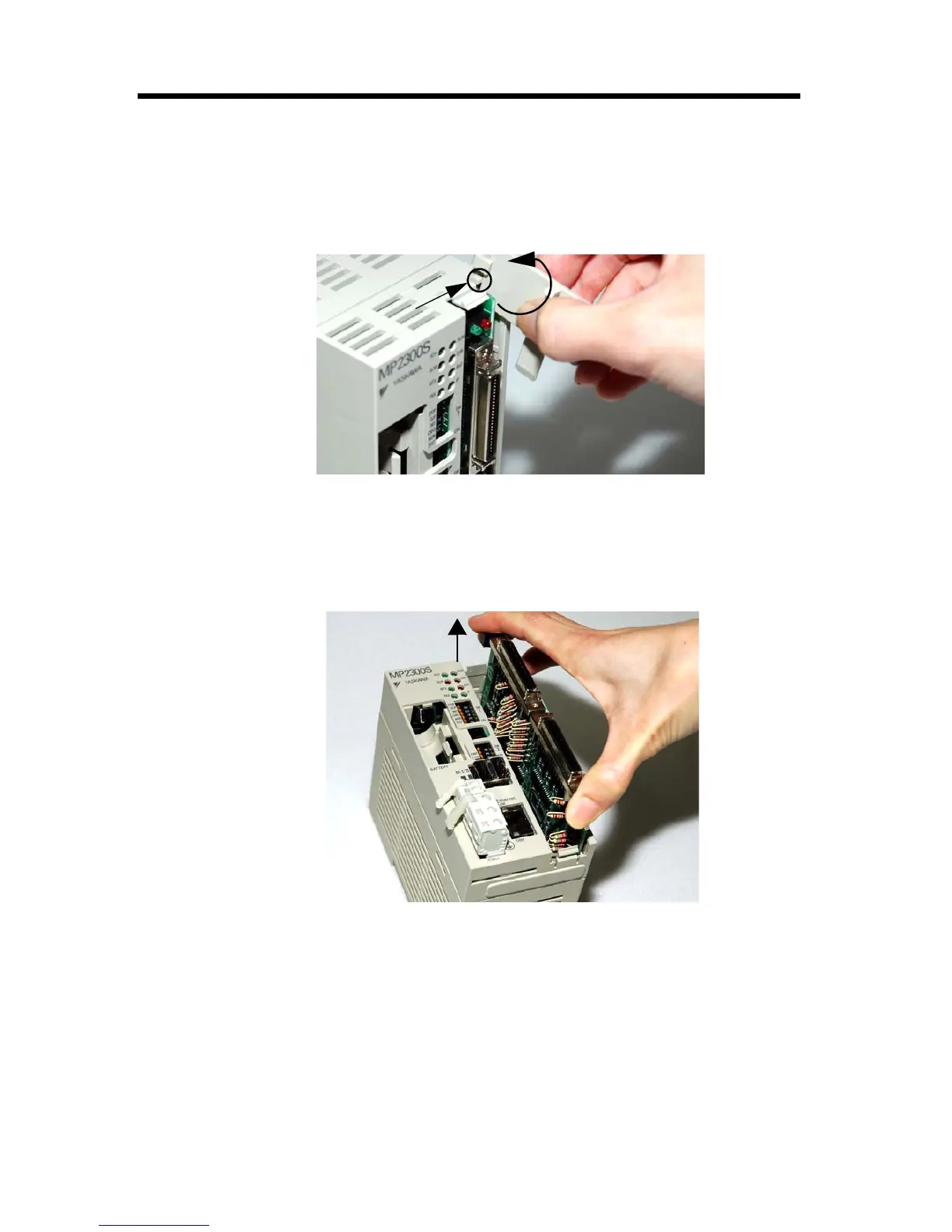

Hold the center of the battery cover as shown in the following
diagram. Push the battery cover down and out, rotating from the
round knob to disconnect the Module and mounting base
connectors, and then pull the Option Module forward.
4. Pull out the Option Module
Hold the Module on the top and bottom and pull it out straight.
Hold the edges of the Module and avoid touching the parts on the
Module.
Store the removed Module into the bag that was supplied with it.
Fulcrum
Turn
