5.1 DIN Rail Method
5.1.6 Installing Option Modules
29
5.1.6 Installing Option Modules

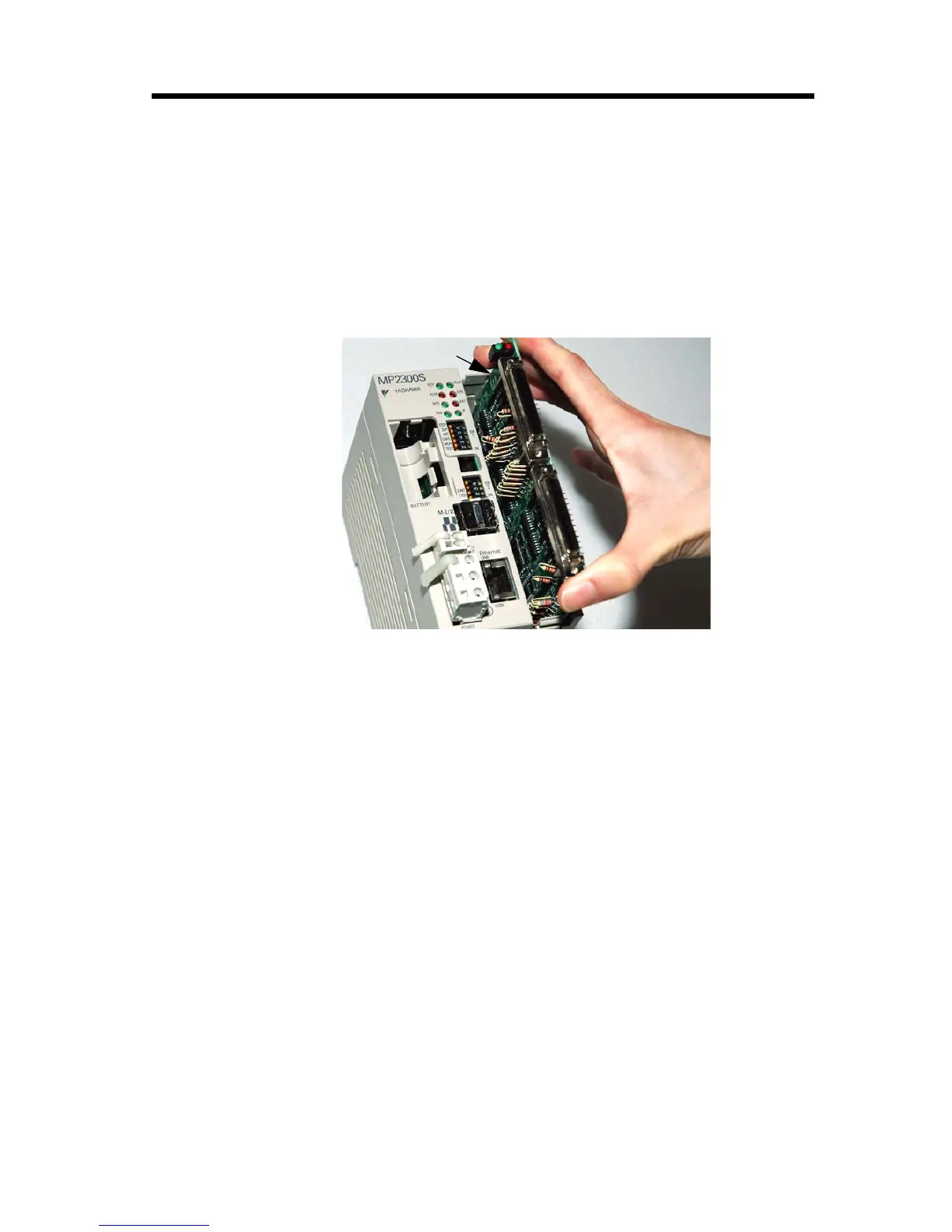

1. Insert Option Modules
Hold the top and bottom of the Module to be installed, line up the
Module on the left-side guide rail inside the Option Slot, and then
insert it straight.
The FG bar on the inside bottom of the Unit Case may be damaged if
the Module is not inserted straight.
2. Mount on to the mounting base
Once the Option Module has been completely inserted, place your
hand on the front face of the Option Module and push hard until
the Option Module has been inserted into the mounting base
connectors. The front face of the Option Module and the hook will
be aligned when the Option Module has been installed properly.
