YASKAWA MP2300Siec User Manual

5.1
DIN Rail Method
5.1.6
Installing Option Modules
30

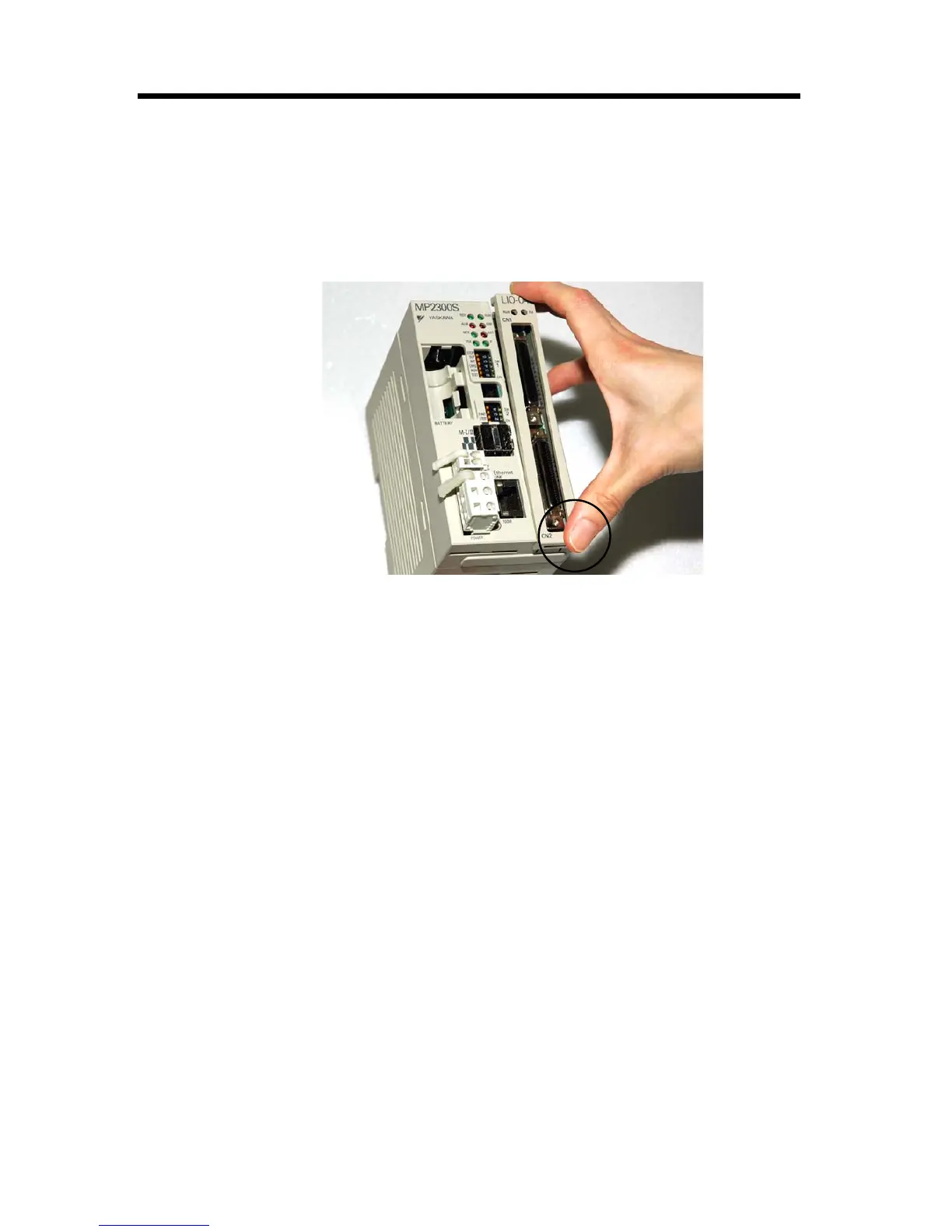

3. Install the panel of the Option Module
Place the hole on the bottom of the panel of the Option Module
onto the hook on the bottom of the MP23
iec. Next, hook the
hole at the top of the panel of the Option Module onto the hook at
the top of the MP23
iec.
This completes the Option Module mounting procedure.
If the option slot is not used, attach the optional cover (model:
JEPMC-OP2300).
