14.1 AI-01 (Analog Input) Module
14.1.5 Connector Specifications
53

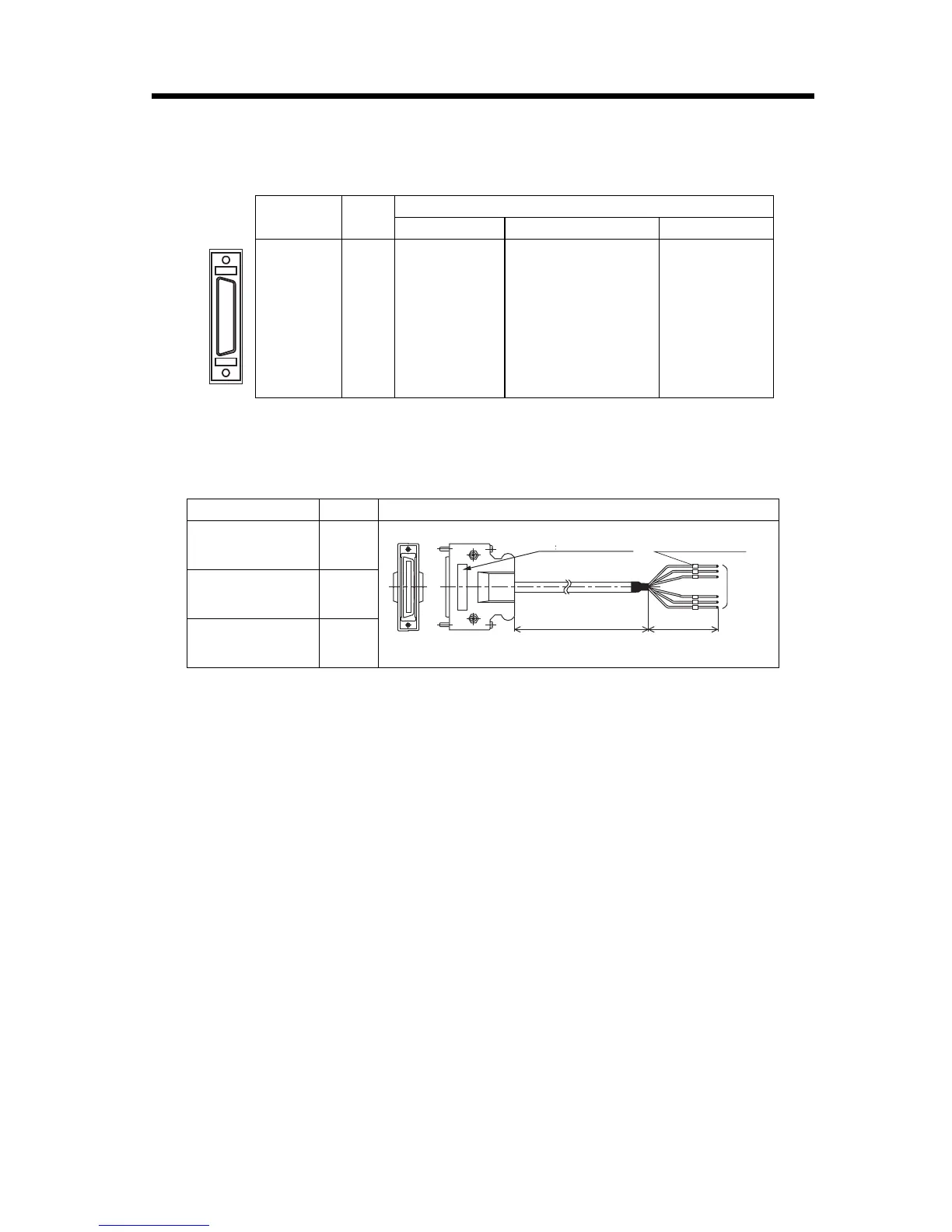

14.1.5 Connector Specifications
Applicable Cable: JEPMC-W6080-
14.1.6 Standard Cable Model and External Appearance
Connector
Name
# of
Pins
Connector Model
Module Side Cable Side Manufacturer
CN1/CN2
26
10226-52A3PL
• Connector
10126-3000VE
• Shell
10326-52A0-008
(Screw locking), or
10326-52F0-008
(One-touch locking)
Sumitomo 3M
Corporation
Model Length External Appearance (JEPMC-W6080-)
JEPMC-W6080-05 0.5 m
JEPMC-W6080-10 1.0 m
JEPMC-W6080-30 3.0 m
L 150 mm
26-core
Loose wires
NP JEPMC-W6080-05
Marking tube (Label)
