14.4 LIO-01/02 Module
14.4.7 Output Circuit
71

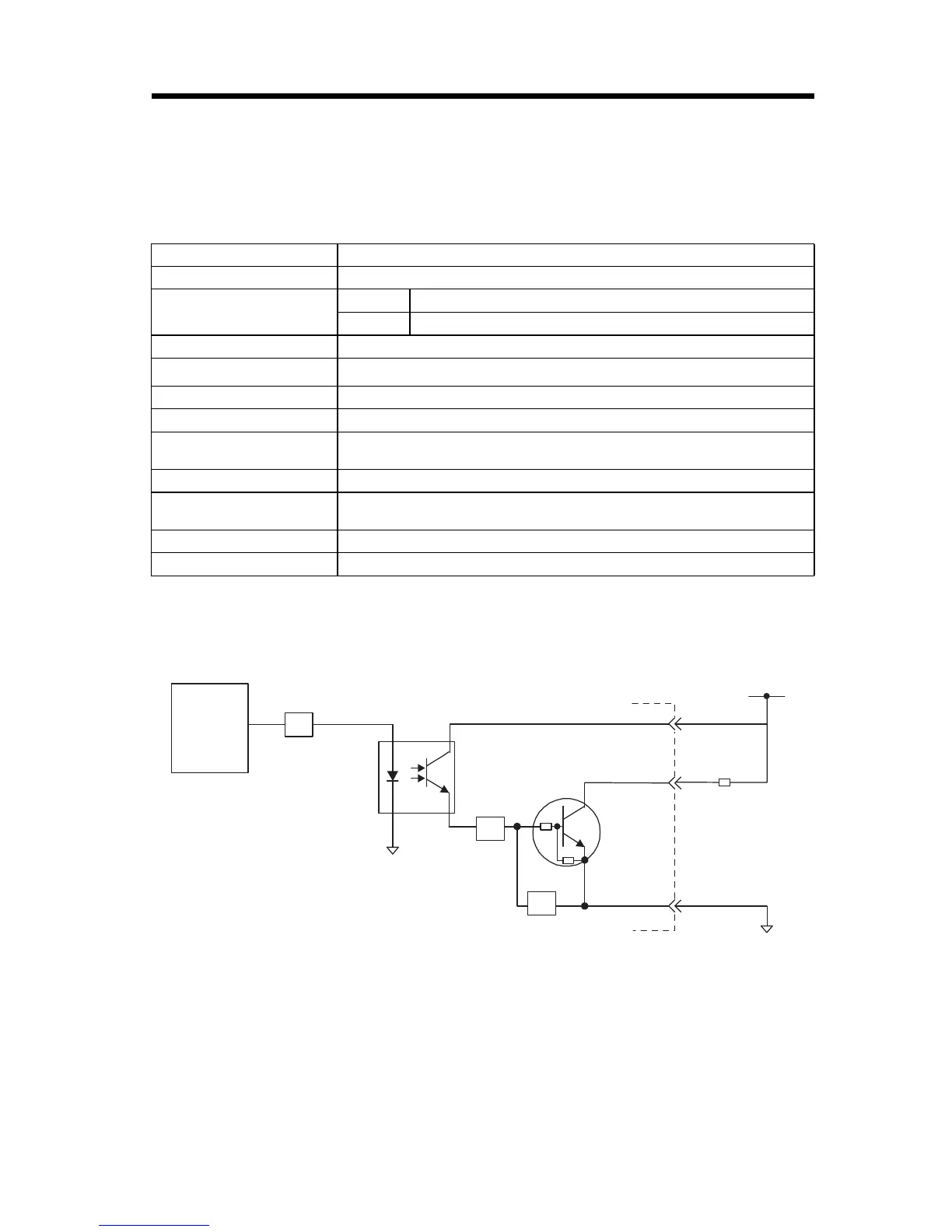

14.4.7 Output Circuit
The following table shows the LIO-01/02 Module output circuit
specifications.
14.4.8 LIO-01 Digital Output Circuit (Sink Mode Output)
Connection Example
Item Specifications
Outputs
16 points
Output Format
LIO-01
Transistor, open collector sink mode outputs
LIO-02
Transistor, open collector source mode outputs
Isolation Method
Photocoupler
Output Voltage
+24VDC,
20mv
Output Current
100 mA Max
Leakage Current When OFF
0.1 mA Max
ON Time/OFF Time
ON: 1 ms Max
OFF: 1 ms Max
Number of Commons
16 points
Protection Circuit
The fuses are not for circuit protection. They are for fire protection at output
shorts. Attach a fuse externally to each output if circuit protection is required.
Error Detection
Blown fuse detection
Other Functions
DO_01 is shared with encoder position detection
