14.5 LIO-04/05 Modules
14.5.9 Output Circuit
81
14.5.9 Output Circuit

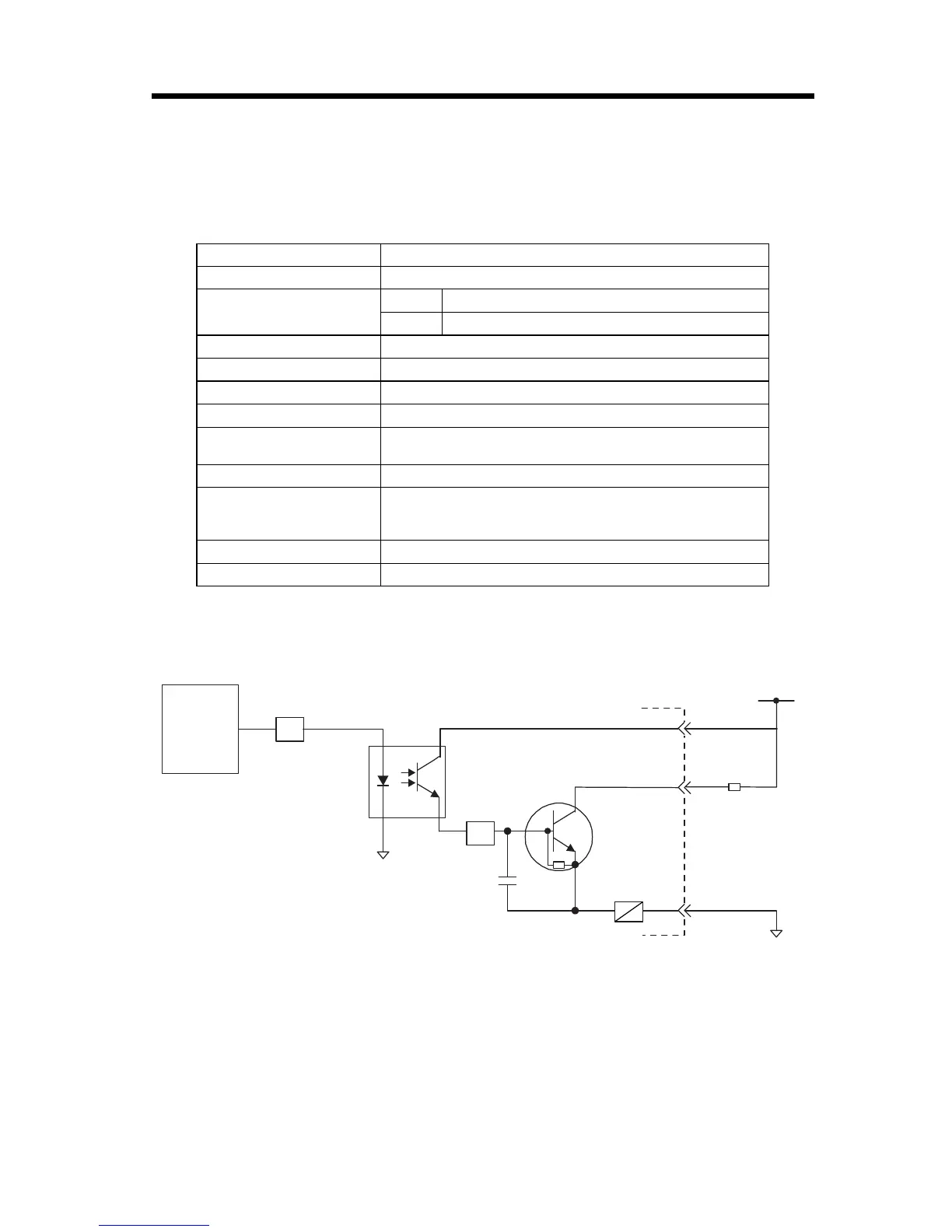

The following table shows the LIO-04/05 Module’s output circuit
specifications.
14.5.10 LIO-04 Digital Output Circuit (Sink Mode Output)
Connection Example
Item Specifications
Outputs
32 points
Output Format
LIO-04
Transistor, sink mode output
LIO-05
Transistor, source mode output
Isolation Method
Photocoupler
Output Voltage
+24VDC (+19.2 to +28.8VDC)
Output Current
100 mA Max
Leakage Current When OFF
0.1 mA Max
ON Time/OFF Time
ON: 0.5 ms Max
OFF: 1 ms Max
Number of Commons
1 per 8 outputs
Protection Circuit
The fuses are not for circuit protection. They are for fire
protection at output shorts. Attach a fuse externally to each
output if circuit protection is required.
Fuse Rating
1A
Error Detection
Fuse blowout detection
To Next Page
