YASKAWA MP2300Siec User Manual

14.5 LIO-04/05 Modules
14.5.15 Standard Cable Model and External Appearance
86

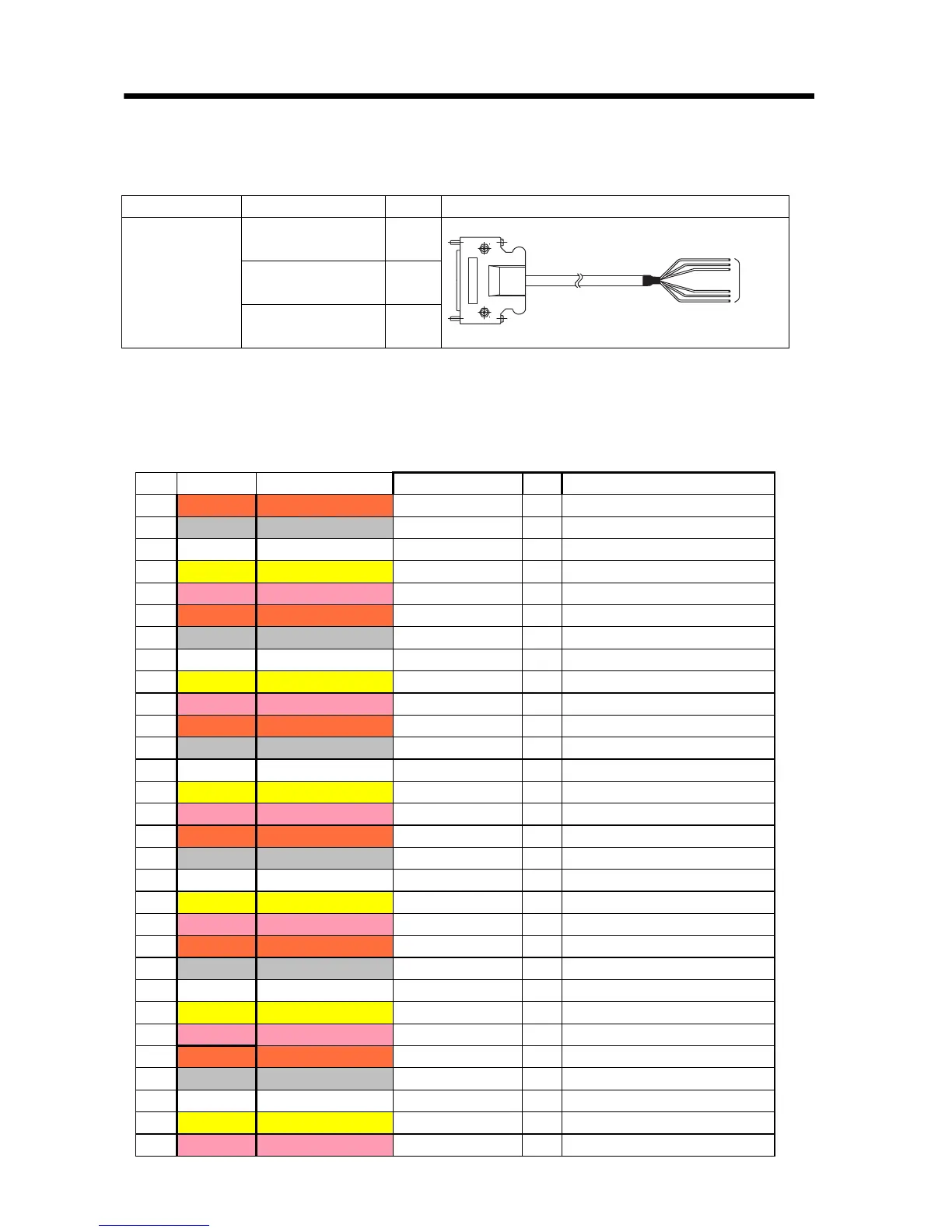

14.5.15 Standard Cable Model and External Appearance
14.5.16 Standard Cable Wiring Table
The wiring table for the standard cable JEPMC-W6060- is shown
below.
Name Model Length External Appearance (JEPMC-W6060-)
Cable for LIO-04 /
LIO-05 Module
(Single loose
wire)
JEPMC-W6060-A5
0.5 m
JEPMC-W2064-01
1 m
JEPMC-W2064-03
3 m
Pin Wire Color Markings Signal Name I/O Function
1
Orange 
DICOM_1/3 I/I Digital Input common 1/3
2
Gray 
DI_00/16 I/I Digital input 0/16
3White 
DI_02/18 I/I Digital input 2/18
4
Yellow 
DI_04/20 I/I Digital input 4/20
5
Pink 
DI_06/22 I/I Digital input 6/22
6
Orange  
DICOM_2/4 P/P Digital Input common 2/4
7
Gray  
DI_08/24 I/I Digital input 8/24
8White  
DI_10/26 I/O Digital input 10/26
9
Yellow  
DI_12/28 I/O Digital input 12/28
10
Pink  
DI_14/30 I/O Digital input 14/30
11
Orange   
N.C.
12
Gray   
DO_00/16 O/O Digital output 0/16
13 White   
DO_02/18 O/O Digital output 2/18
14
Yellow   
N.C.
15
Pink   
+24V_1/3 P/P Digital Output 24V supply 1/3
16
Orange    
DO_04/20 O Digital output 4/20
17
Gray    
DO_06/22 O Digital output 6/22
18 White    
N.C.
19
Yellow    
DO_08/24 O Digital output 8/24
20
Pink    
DO_10/26 O Digital output 10/26
21
Orange     Continuous
N.C.
22
Gray     Continuous
+24V_2/4 P Digital Output 24V supply 2/4
23 White     Continuous
DO_12/28 O Digital output 12/28
24
Yellow     Continuous
DO_14/30 O Digital output 14/30
25
Pink     Continuous
N.C.
26
Orange —
N.C.
27
Gray —
DI_01/17 I/I Digital input 1/17
28 White —
DI_03/19 I/I Digital input 3/19
29
Yellow —
DI_05/21 I/I Digital input 5/21
30
Pink —
DI_07/23 I/I Digital input 7/23
50-core
Loose wires
