14.6 LIO-06 Module
14.6.7 Digital Output Circuit
96

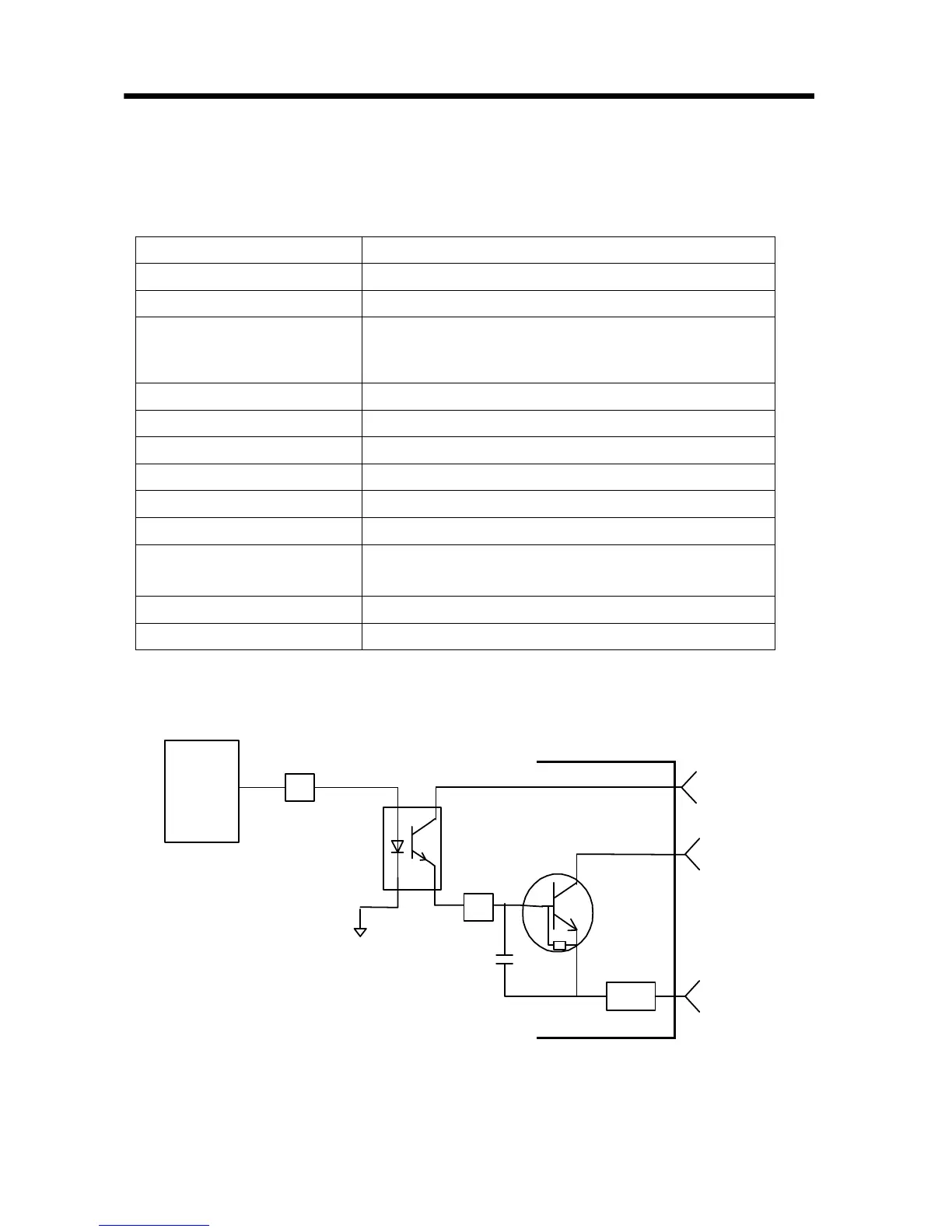

14.6.7 Digital Output Circuit
The specifications of the LIO-06 digital output circuit are shown
below.
14.6.8 Digital Output Circuit Connection Example
Item Specification
Number of Outputs 8
Output Method Transistor Open Collector Sink Output
High Speed Output
DO_07 has high speed output capability, which can set an output
within 13s of passing a specified encoder position. See axis
parameters in the PLCopen Plus Function Block Manual to
configure.
Isolation Photocoupler Isolation
External Power Supply Voltage DC24V±20%
Output Current 100mA Max
Leak Current at OFF 0.1mA Max
ON Time/OFF Time ON=0.25ms Max/OFF=1ms Max
Number of Commons 1
Protection Circuit
The fuses are not for circuit protection. They are for fire protection at
output shorts. A fuse should be attached outside each output when a
protective circuit is necessary.
Fuse Rating 1A
Error Detection Blown fuse detection
