14.6 LIO-06 Module
14.6.5 Digital Input Circuit
95
14.6.5 Digital Input Circuit

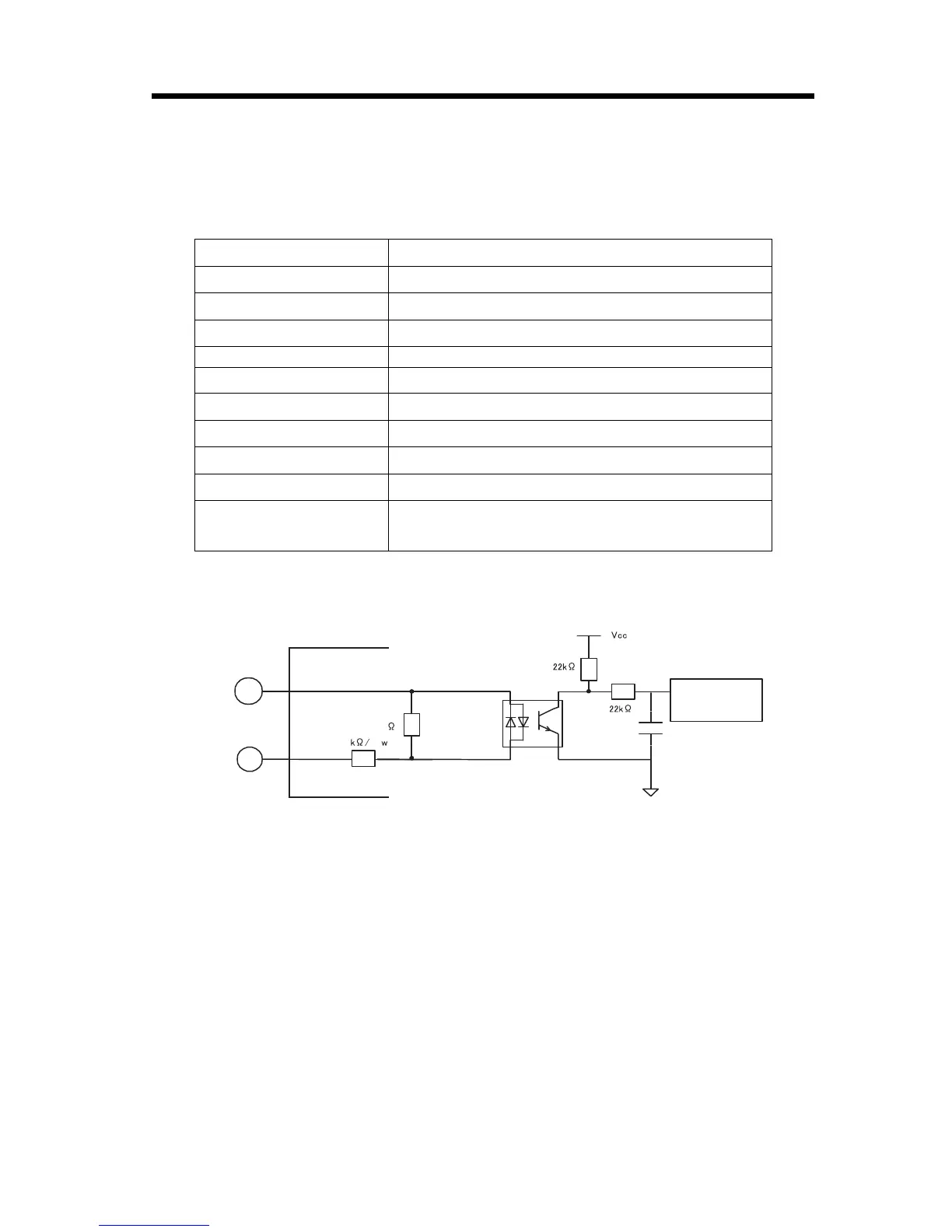

The specifications of the LIO-06 module digital input circuit are shown
below.
14.6.6 Digital Input Circuit Connection Example
Item Specification
Number of Inputs 8
Input Method Sink/Source
Isolation Photocoupler Isolation
Input Voltage DC24V±20%
Input Current 4.1mA (TYP)
ON Voltage/Current At least 15V/2.0mA
OFF Voltage/Current 5V Max/1.0mA Max
ON Time/OFF Time ON=0.5ms Max/OFF=0.5ms Max
Number of Commons 1
Other Functions
• DI_01 is used together with the position registration latch
input, and when enabled, the position registration latch input
latches with the pulse encoder when SI_01 is "ON".
