3.1 Mounting the Universal Feedback module
3-3
3
Hardware Installation

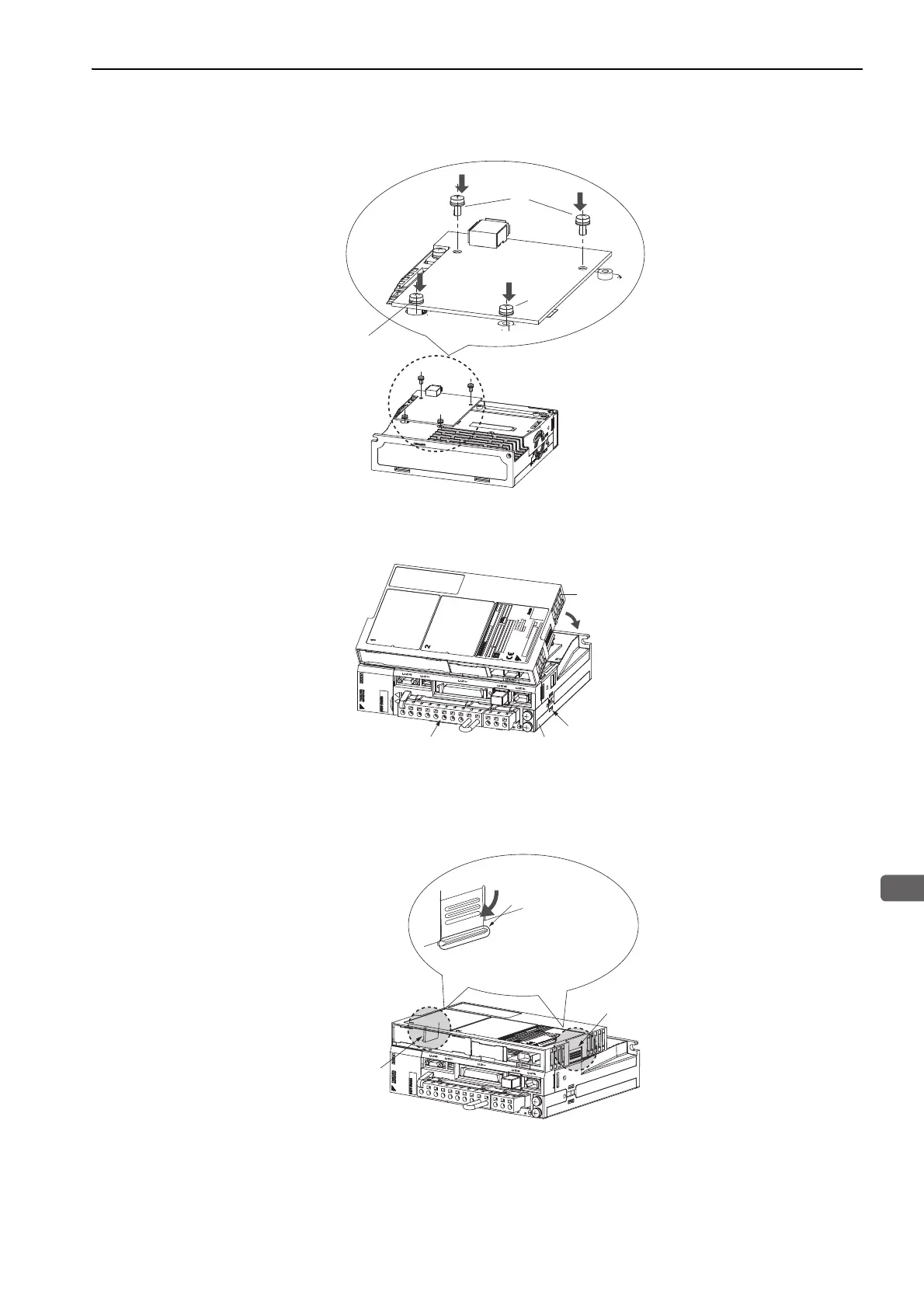

4. Fix the board on the SERVOPACK with three screws. (Tightening torque: 0.14 Nm)
5. Align the front end of the module cover (H) with the front panel of the SERVOPACK as shown in the illustra-
tion, and place the module cover so that you can view the installed board from the opening (where the front cover
is removed) on the module cover.
6. Fix the module cover to the SERVOPACK by pushing in the retention clips on the left and right side of the
module cover, while directing their angled end protrusions to enter the SERVOPACK.
B
-Mounting
Screws
B
B
Tighten this
pre-attached screw
as well.
YASKAWA EUROPE GMBH
MADE IN UK
OFB01A
Bottom
Front panel I
H
H
-
Module cover
I
-
SERVOPACK
OFB01A
Retention clip angled
end protrusion
Push the clips in the
direction indicated
by the arrow so the
clip will go into the
SERVOPACK.
Retention clip
Retention clip
