YASKAWA SGDV-OFB03A - Chapter 5 Encoder Interfaces; A Quad B Pulse Interface; Overview; Technical Data

5 Encoder Interfaces
5.1.1 Overview
5-2
5.1 A quad B Pulse interface
5.1.1 Overview

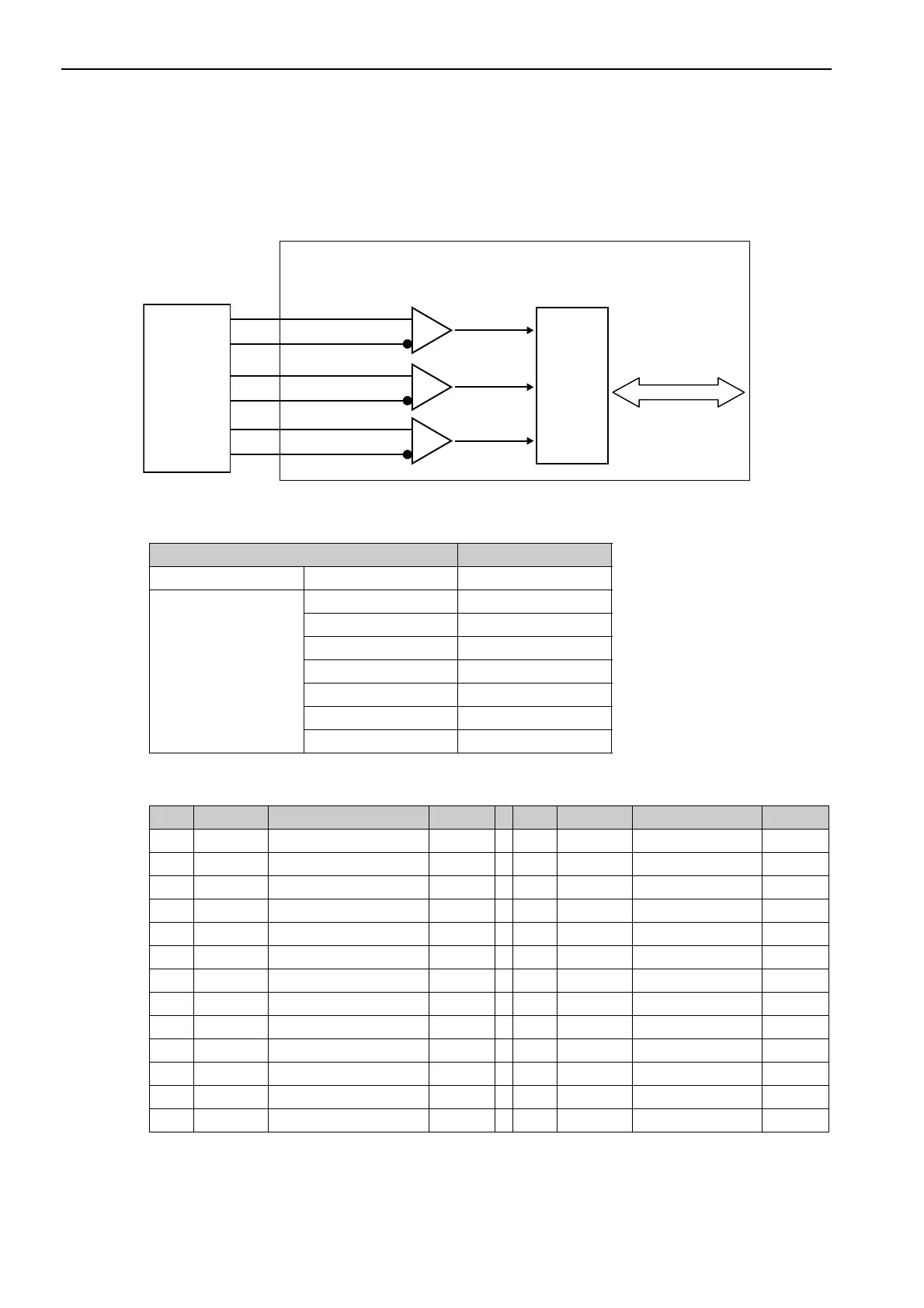

A quad B pulse signals is counted by each edges in the master. The interface block diagram is shown below.
5.1.2 Technical Data.
5.1.3 Connection
*1 Without hall sensor, do not connect to any signals. With hall sensor, please refer to section 6-1, too.
*2 Pins denoted as N.C. do not connect to any signals.
A quad B
Pulse
encoder
Encoder Master
A
B
FPGA
REF
Servo
Serial
I/F
Items Description
Encoder Supply Output voltage Typically 5 V
Incremental Encoder
Input
Signal form Square wave pulse
Evaluation 4x
Max. input frequency 1 MHz
Max. counter frequency 4 MHz
Max. reference frequency 1 MHz
Distance between edges 0.2 µsec or more
Differential voltage 0.2 V or more
No Signal Pin Function Dir. No Signal Pin Function Dir.
1 N.C. *2 OUT 14 - N.C. *2 I/O
2 N.C. *2 OUT 15 - N.C. *2 I/O
3 V Hall Signal V + *1 IN 16 W Hall Signal W + *1 IN
4 U Hall Signal U + *1 IN 17 PG_0V Ground -
5 /C(Z) Pulse /C(Z) - 18 - N.C. *2 -
6 C(Z) Pulse C(Z) - 19 - N.C. *2 -
7 - N.C. *2 - 20 - N.C. *2 -
8 PG+5V Power OUT 21 - N.C. *2 -
9 PG+5V Power OUT 22 - N.C. *2 -
10 PG+5V Power OUT 23 A Pulse A -
11 PG_0V Ground - 24 /A Pulse /A -
12 PG_0V Ground - 25 B Pulse B -
13 PG_0V Ground - 26 /B Pulse /B -
