6 Hall Sensor Signals Interface
6.1.1 Technical Data
6-2
6.1 Overview
Hall sensor signals provided by some sensor devices are used as easier recognition for motor pole position.
With hall sensor signals, the detecting function implemented on Sigma-5 is not required. Used sensor devices

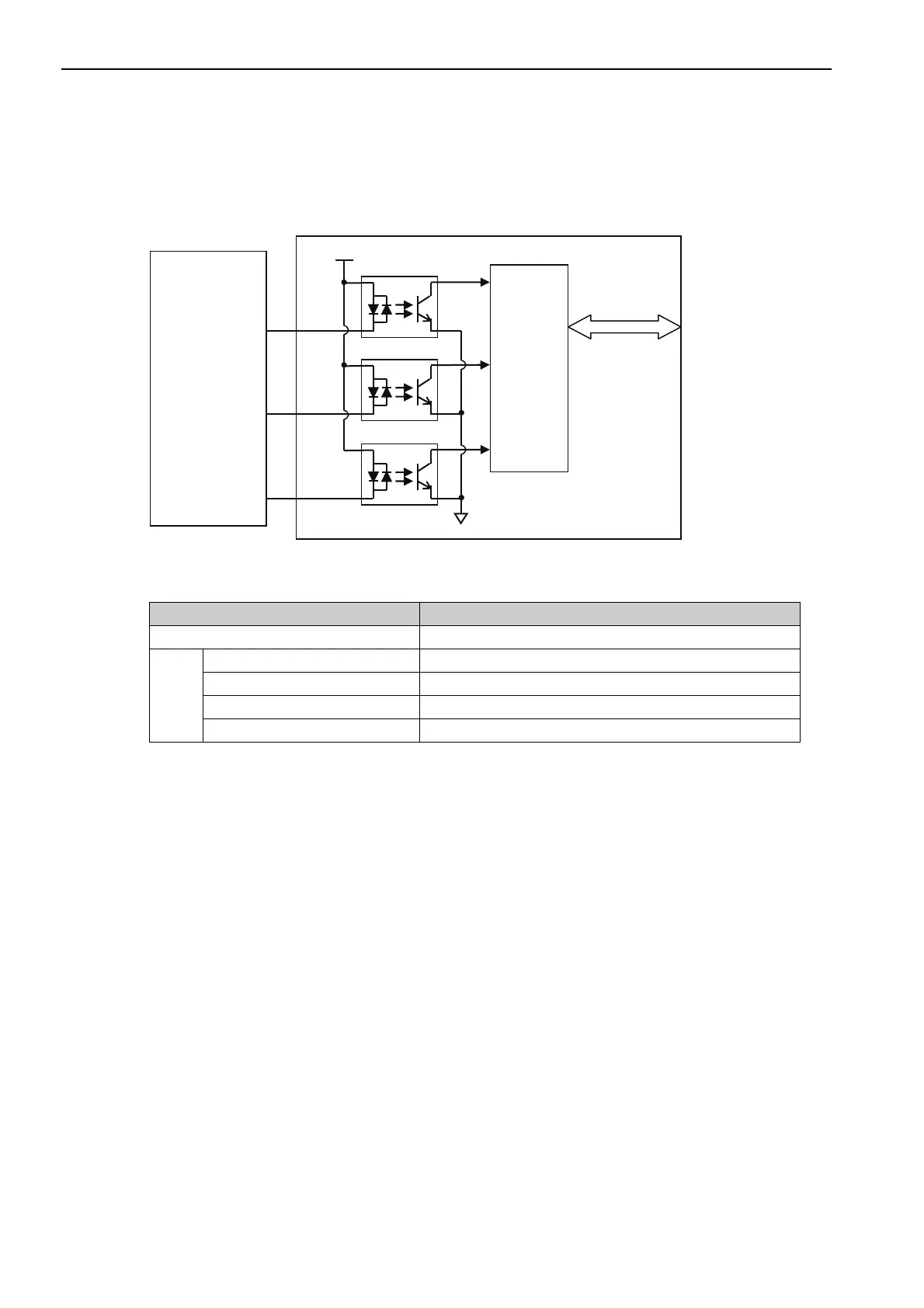

must output each U/V/W hall sensor signals. The Interface block diagram is shown below.
6.1.1 Technical Data
Hall sensor
Encoder Master
FPGA
W
Servo
Serial I/F
V
U
5V
GND
Items Description
Hall sensor interface
Isolation Yes
Signal form Square wave pulse
Signal transfer C-MOS signals
Code Absolute
