7.2 Set-up Procedure
7-3
7
Set-up Procedure for Fully-closed Loop Control
7.2.1 Feedback Option Module Set-up for Fully-closed Loop Control
The scale parameters must be written into the module via the SERVOPACK using the SigmaWin+ software
engineering tool.
Note: This feature is available in SigmaWin+ Version 5.6.1 and later.
(1) Set-up Procedure for Encoder File
1. Install a motor, scale and SERVOPACK.
2. In SigmaWin+ select “Parameters > Parameter edit”.
Set parameter Pn002.3 = 1 or 3.
3. Start “Setup > Motor parameter scale write” in SigmaWin+.
4. Write the parameters of the motor parameter file to the scale.
Note: Refer to SigmaWin+ Operation Manual for information on how to write parameters using SigmaWin+.

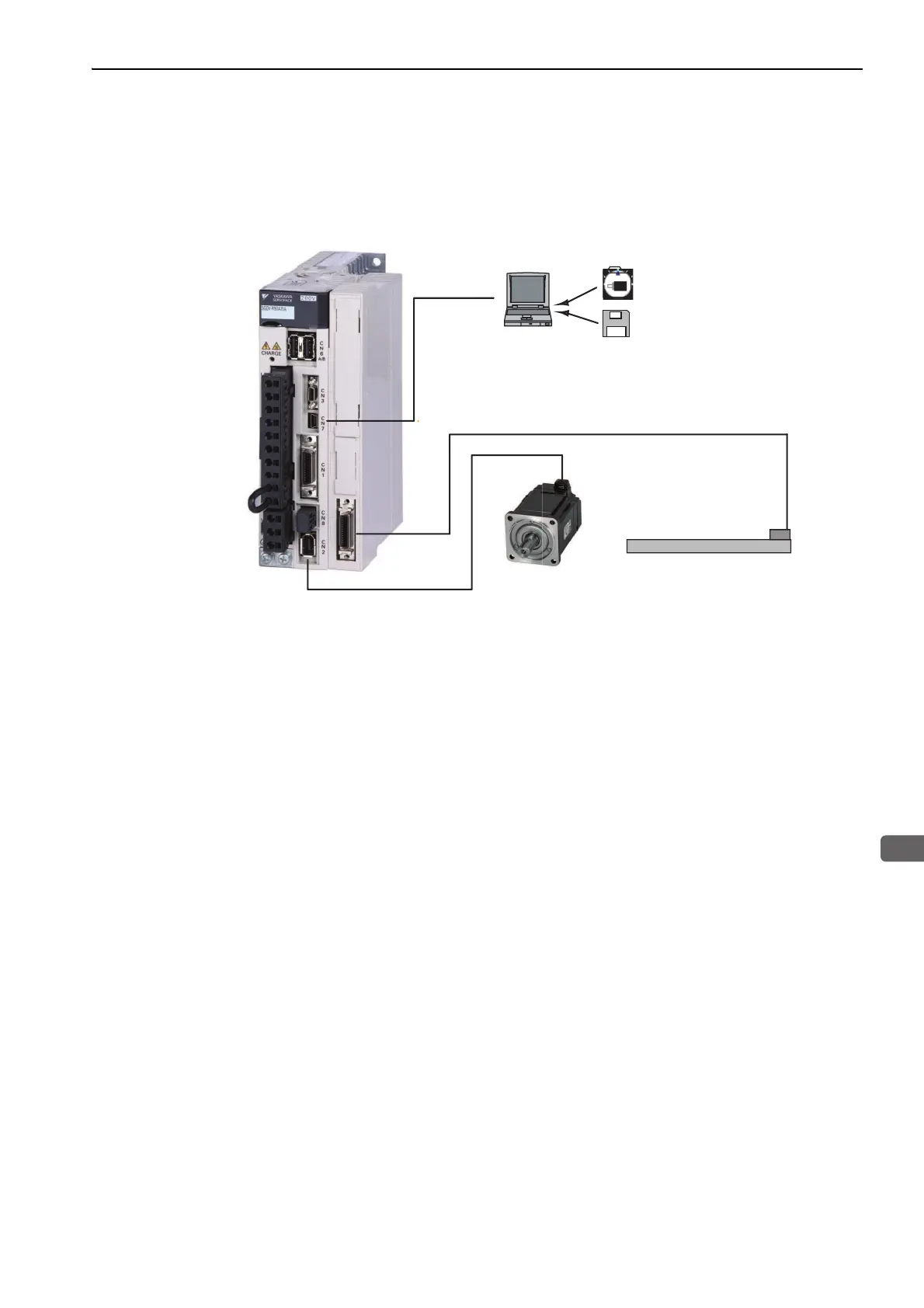

USB cable
Linear Scale
Personal Computer
SigmaWin+
Scale parameter file
Write scale parameters into the feedback
option module via SGDV SERVOPACK
SGDV SERVOPACK
YASKAWA Motor
