YASKAWA SGDV-OFB03A - SERVOPACK for Rotary and Linear Motors

4 Applicable Scope
4-2

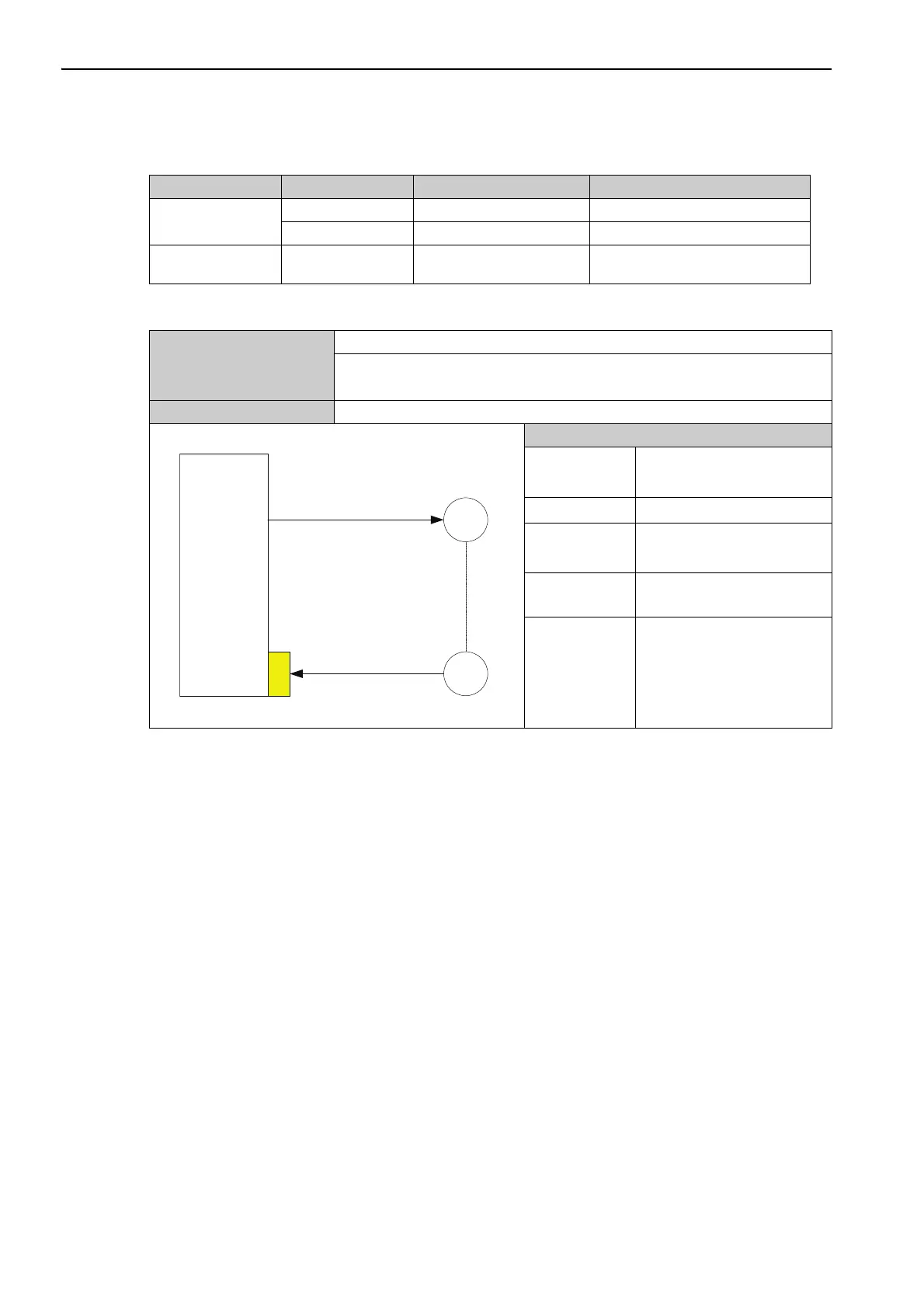

4.1 SERVOPACK for Rotary and Linear Motors
Motor Scale Interface Available solutions Remarks
YASKAWA
YASKAWA Serial without any feedback boards -
A quad B pulse with SGDV-OFB03A -
3
rd
Party
A quad B pulse with SGDV-OFB03A
Motor parameter file needs to be pre-
pared by YASKAWA
Feature
SERVOPACK for Rotary and Linear Motors
This system is for driving the Sigma-1 servo motors or third party servo motors.
Parameter Setting Pn002.3=0, Pn00B.3=1
Description
M Third party servo motor
Sensor Motor feedback sensor
UVW
Current command for motor
drive
CN2 Sigma-5 encoder connector
FB OPTION SGDV-OFB03A
Sigma-5
FB Option
Current Command
Motor seedback signal
Not used
(open)
U
M
V
W
C
N
2
SERVOPACK
A quad B
encoder
