1.2 Hardware Specifications

1.2.1 Exterior Appearance

Front Panel

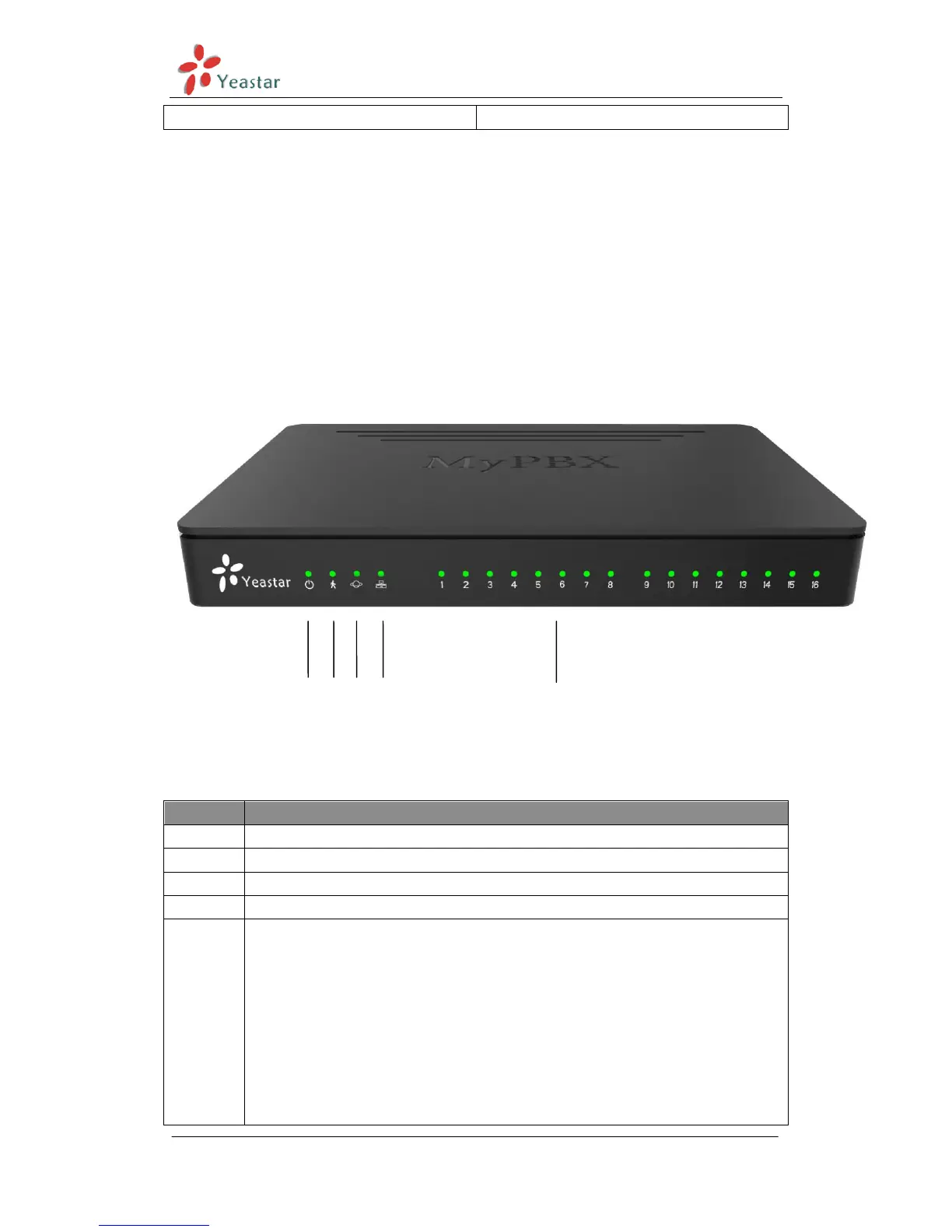

Figure 1-1 MyPBX Standard V7 Front Panel

No.

Identification

①

Green LED indicates correct power is being supplied to the unit

②

Green LED indicates the MyPBX is fully functional.

③

Green LED indicates stable WAN Port connection

④

Green LED indicates stable LAN Port connection

⑤

Red LED indicates presence of an FXO/GSM port.

Orange LED indicates presence of a BRI port.

Green LED indicates presence of an FXS port.

LED Blinking- Red blinking: No connection between FXO port and

PSTN

Alternately blinks Red and Green: FXO port has an incoming call.

Alternately blinks Red and Green fast: FXO port is in a call.

Alternately blinks Green and Red: FXS port is ringing.

Alternately blinks Green and Red fast: FXS port is in a call.

① ② ③ ④ ⑤
