Using the Power Checker from the OTDR Screen (utility button)
Displaying the OTDR Screen
1.
Press MENU to display the MENU screen.
2.
Tap OTDR to display the OTDR screen.

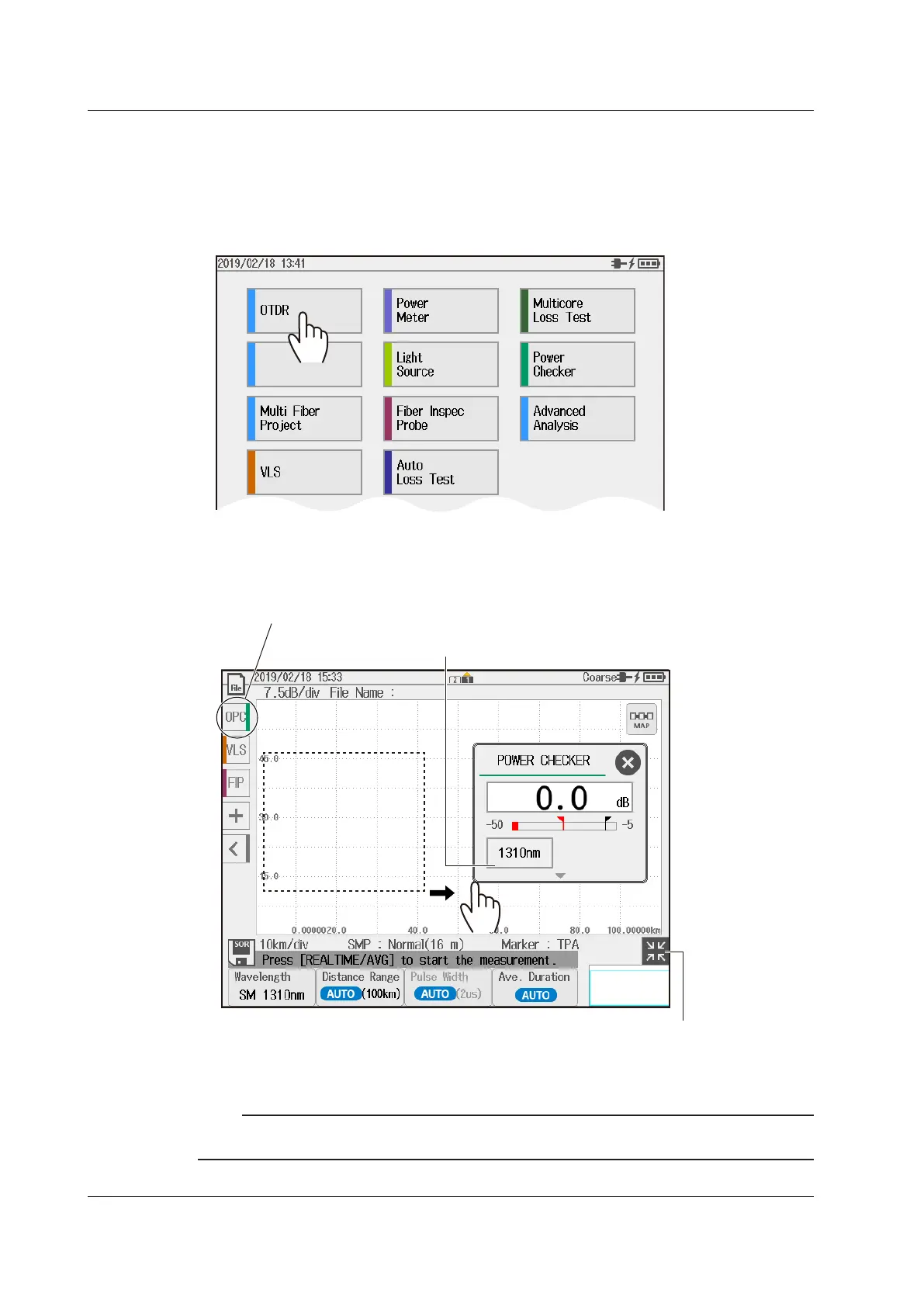

MENU screen
OTDR Screen
3.
Tap OPC to display the optical power meter screen.
Power Checker Screen
Drag to move the power
checker screen.
OPC button
Starts the power checker screen
Returns the waveform display area to
its original condition
The example of the OTDR screen shows
the waveform display area expanded.
Set the wavelength (SM 1310nm, SM 1490nm, SM 1550nm,
SM 1625nm, SM 1650nm).
Note
If the OPC button is not displayed, see “Changing a Utility Button” under “Using the Light Source from the
OTDR Screen (utility button)” in section 7.1.
