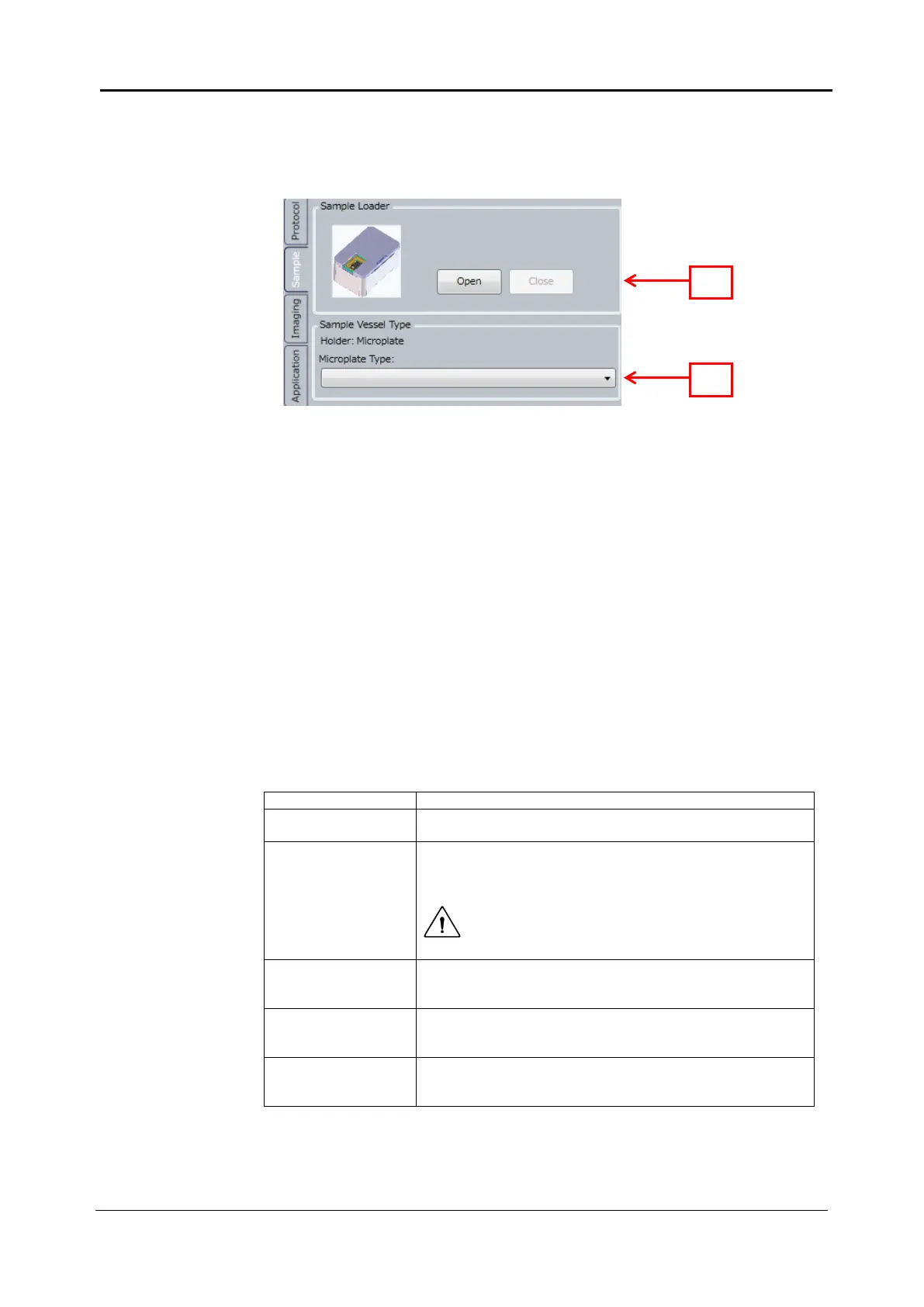

5.4.2 Sample Window
Sample window is to select sample vessel type, such as microplate or
slide glass, to load on CQ1.
(1) Sample Loader
Click Open button to open the door on CQ1 Main Unit when the
XY-stage is located at the door.
Click Close button to close the door when XY-stage moves to the
measuring position to get ready for imaging.
(2) Sample Vessel Type
Select sample vessel type loaded in CQ1 Main Unit.
CQ1 Main Unit automatically recognizes the loaded sample holder
type, and shows sample holder type name at the “Attachment”
column of “Sample Vessel Type”, to show selectable sample type
in the menu depending on sample holder type.
Sample holder
Description
None
CQ1 Software recognizes as if microplate is loaded, and
enables selection of “Microplate Type”
Triple 35 mm dishes
CQ1 Software recognizes a Triple 35 mm dishes sample
holder is loaded in which up to three 35 mm dishes can be
set, and enables selection of “Dish Type”.
CAUTION
Set dishes to all 3 positions.
Single 60 mm dish
CQ1 Software recognizes a Single 60 mm dish sample holder
is loaded in which one 60 mm dish can be set, and enables
selection of “Dish Type”.
Slide glass
ISO 8037/1
CQ1 Software recognizes a slideglass sample holder is
loaded in which up to four slide glasses can be set, and
enables selection of “Slide Type”.
Cover glass chamber
CQ1 Software recognizes a cover glass chamber sample
holder is loaded in which one cover glass chamber can be
set, and enables selection of “Cover Glass Chamber Type”.
