󳏇 Cancel
Cancel the modification and close window.

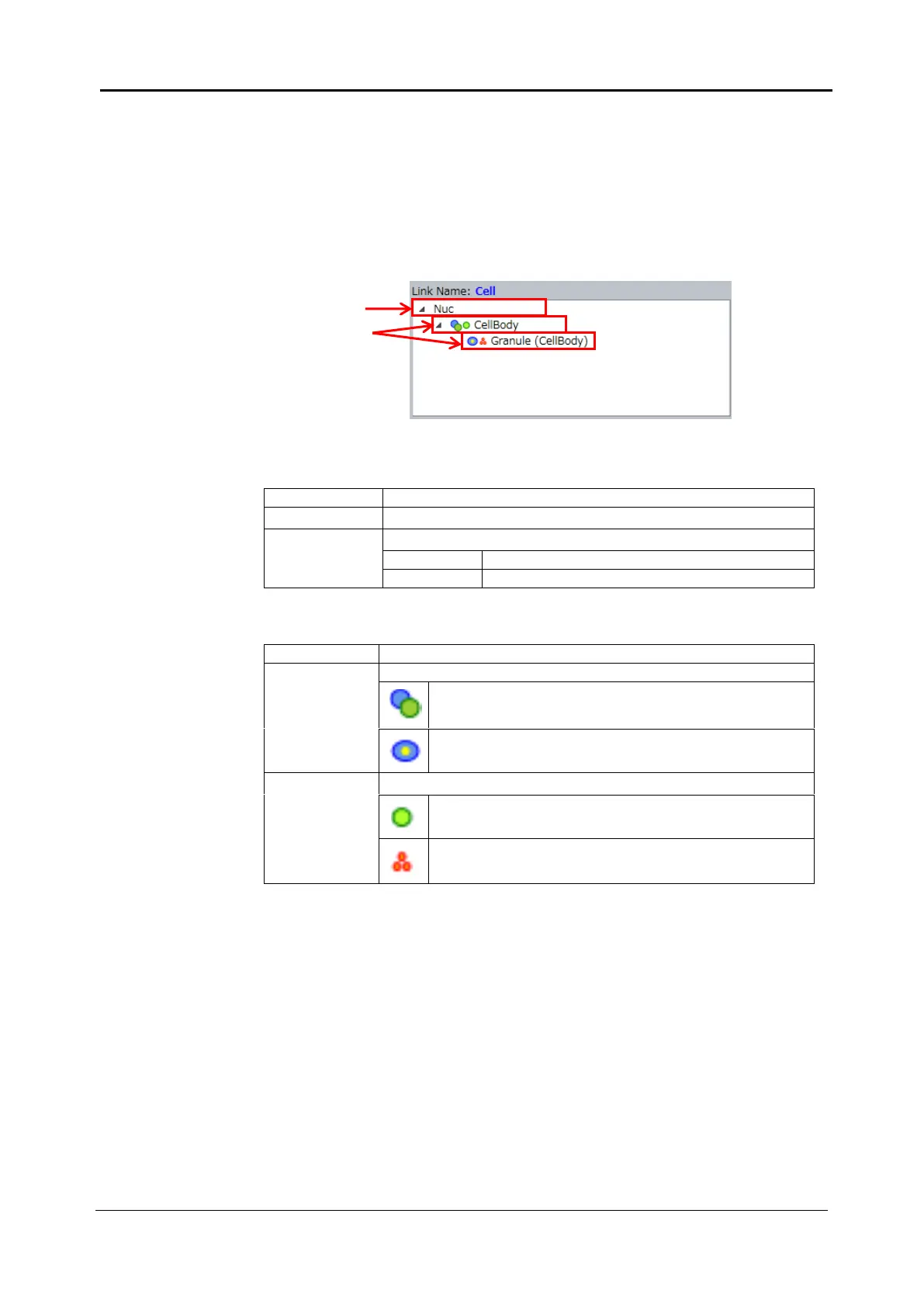

(8) Link Setting
Show the current Link Setting. The node one-step above the object is
called “Root node”, and the one below is called “Sub node”.
󳔛Link Setting Items
Item
Description
Link Name
Name of entire linked objects
Link Tree
Tree to show correlations among objects
Root Node
Top node
Sub Node
Other nodes
󳔛Conditions of Sub Nodes
Item
Description
Method
Method for linking
Adjacent to Root Node
Included within Root Node
Relationship
Relationship with Root Node
One-to-one relationship
One-to-many relationship
Root Node
Sub Node
