5-58 <5. Functions of CQ1 Software>
IM 80J01A01-01E
(1) Measurement Data Folder
Full-path-name of the storage folder of measurement data in the list is
shown.

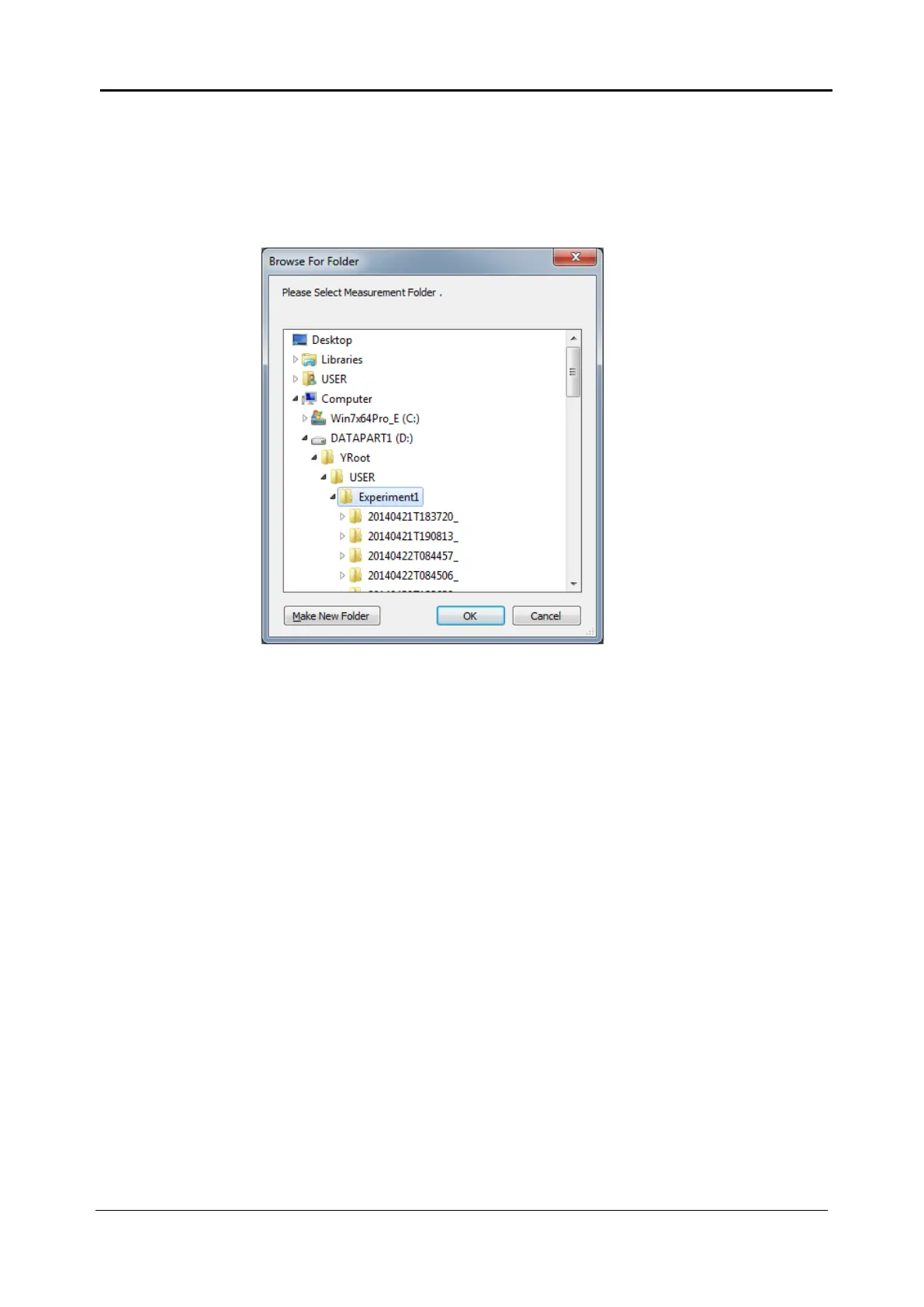

Click [...] button at the right end to show folder selection dialog where
measurement data storage folder can be changed.
Click button at the right to show pull down list of previously
selected folders. While pull down list is shown selected folder can be
deleted from the list by right-click menu.
(2) Switch View Mode
Switch brief/ detailed view mode of measurement data.
(3) Selection of Measurement Data
Check to select measurement data. Plural selection is available.
(4) Selection of Re-measurement Data
Re-measurement means either review data or repeat image
processing after changing analysis conditions. This button is
circle-marked when re-measurement data is selected.
