5-62 <5. Functions of CQ1 Software>
IM 80J01A01-01E
(18) (19) Read Viewer
Click to show lastly selected
data in the “Viewer”.
Viewer display changes depending on the existence of quantified data
as below.
No feature data
Show images
Feature data is selected
Show selected feature data, which is the same with the case of
clicking “Read Viewer” after selecting feature data.
Featured data is unselected
Show images
(20) Open Folder
Open the folder that measurement data is saved by windows explorer.
(22) Export (Custom)
Export measurement data with image processing.
Click this button after selecting measurement data to show folder
selection dialog. Data format of saving folder must be NTFS.
Select saving holder and click “OK”. Then “Export Setting” window is
shown. For detail, refer to next page.

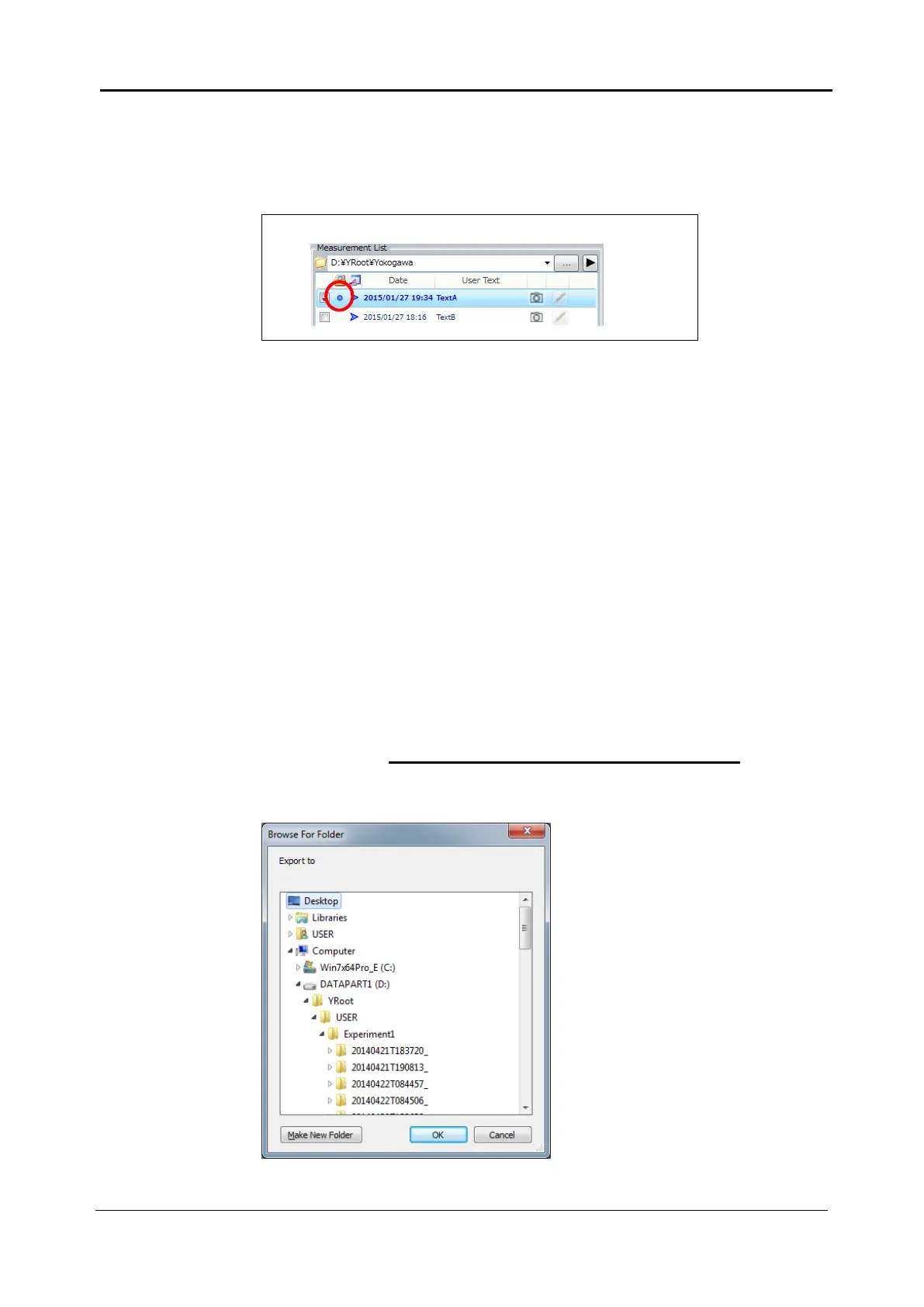

Circle mark is shown by lastly selected data.
