󳏁 Tile
Transform images acquired by Area imaging to single tiled image
and output.
For using this function, it is necessary that images are acquired by
same condition (“Same Area” in “Imaging” window is checked).
󳔛Items of Tile Correction Option
Item
Description
Stitch
If checked, images are arranged by image processing
and tiled.
If unchecked, images are overlapped by trimming
parameter and tiled.

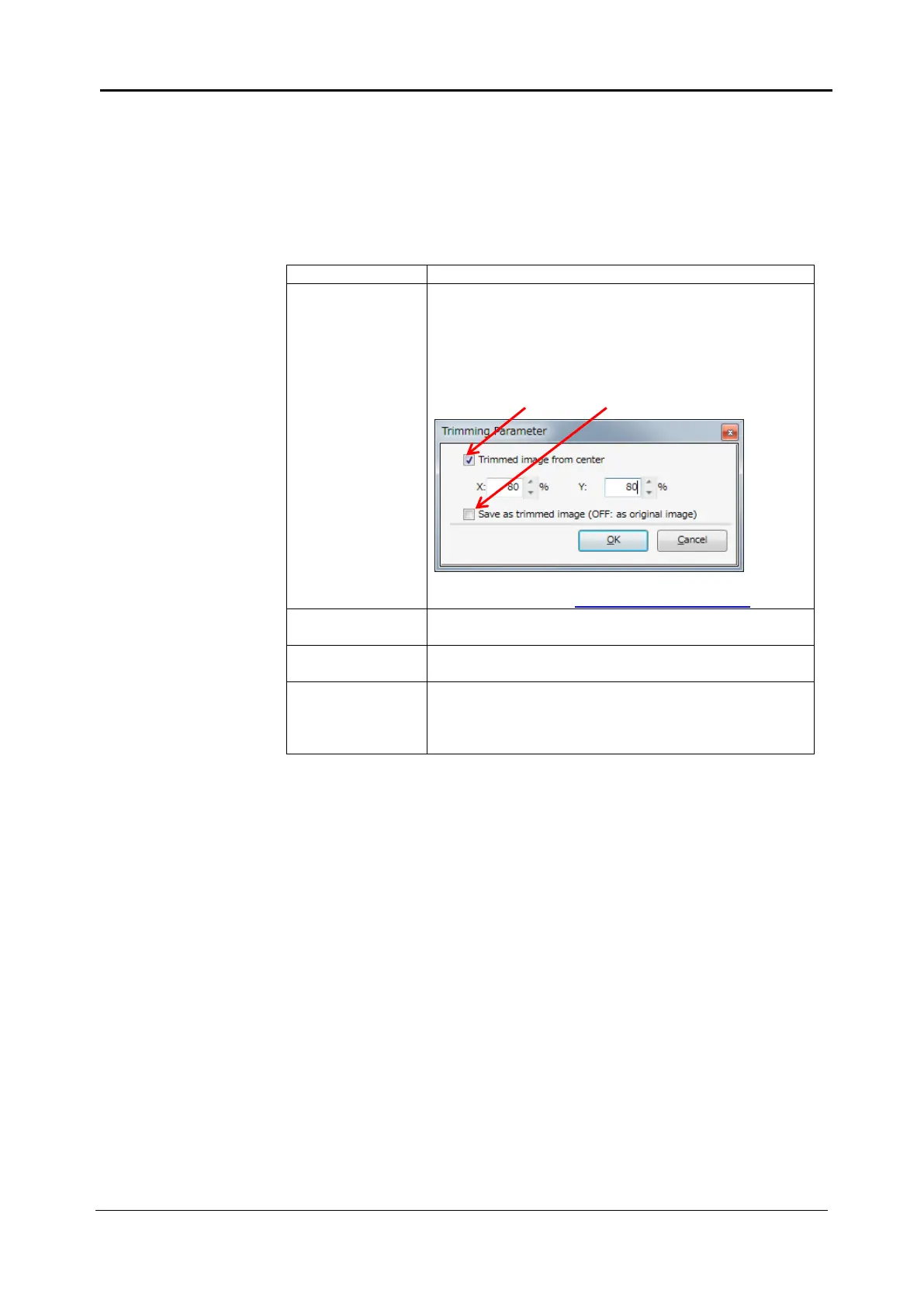

To use this function, it is necessary to enable overlap
acquisition.
(For details, refer to 5.10 Trimming Parameter)
Target Channel
Number
Select channel to perform arrangement.
It is available if “Stitch” is checked.
Overlap
Parameter (Pixel)
Designate the image size to perform arrangemetn.
It is available if “Stitch” is checked.
TargetImage of
XY Position
Designate the image to perform arrangement. If
images are acquired as 3D, “MIP” and “Sum” is
selectable.
It is available if “Stitch” is checked.
󳏂 Help (Tile)
Display help message in the case that this function is not
available.
󳏃 Time-lapse Convert
Convert plural measurement data as one time-lapse data and
output. It is necessary to select plural measurement data acquired
by same measurement condition.
󳏄 Help (Timelaps Convert)
Display help message in the case that this function is not
available.
Uncheck
Check
