5-94 <5. Functions of CQ1 Software>
IM 80J01A01-01E

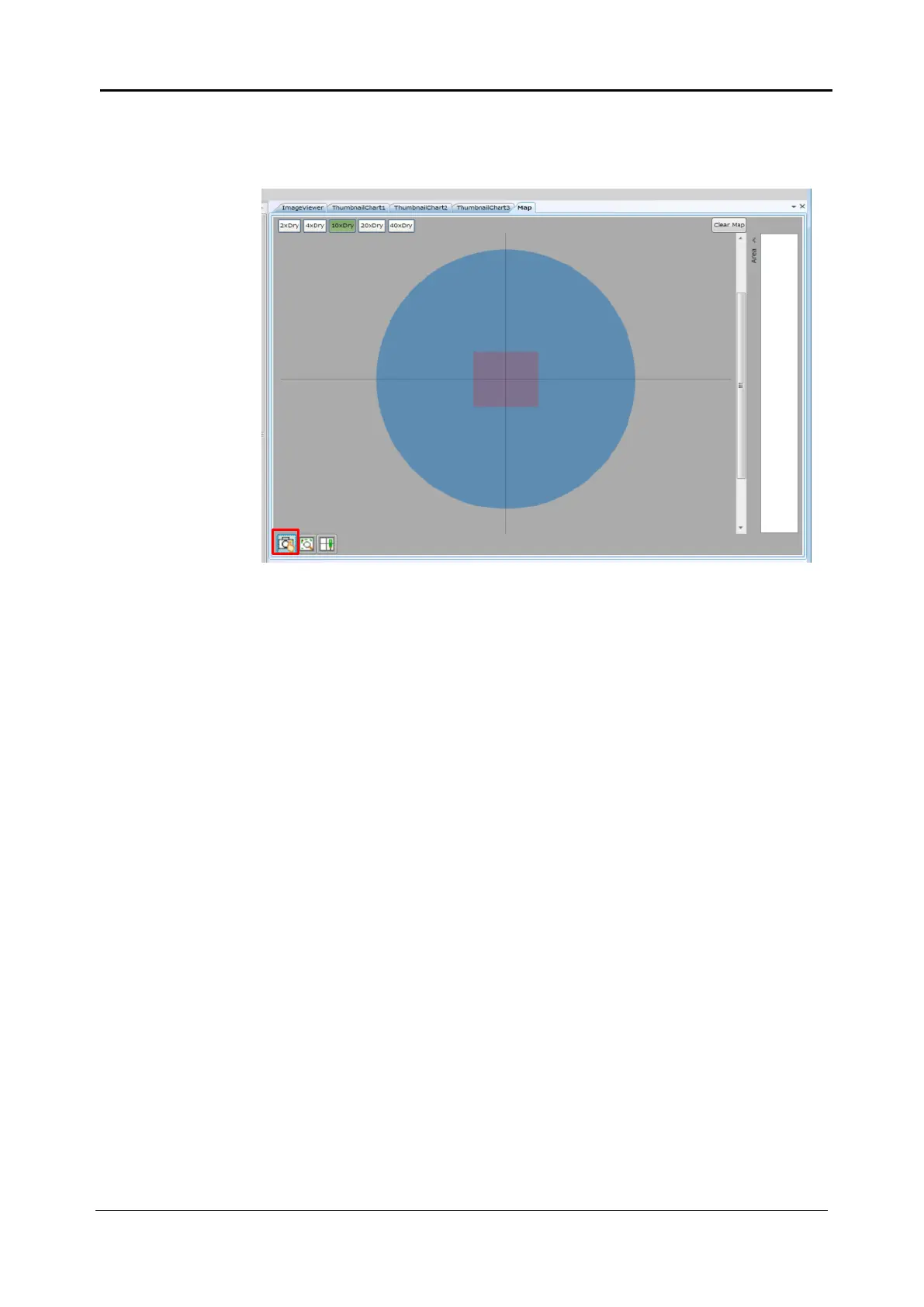

(1) Test Imaging Mode
Capture test image of clicked Field at a single channel by one-click.
Field to be imaged is shown as red square.
