󳏅 Input Setting
“Custom Object Detection Methods” setting window can be
selected from drop-down menu.
In the case of the second or later Object Detect, it is possible to
use the output data by the methods of the previous object detect,
as “Input”.
󳏆 Performing Image Processing Method
Click each method name to perform image processing until clicked
method and to display the result at “Analysis Viewer”.
In “CQ1 mode”, image processing is performable after test
imaging (by clicking “PreRec” of “Imaging” window). In “HDD
mode”, performable consistently.
If “Lost Reference” exist at “Input” setting, image processing is
unperformable because algorism is not proper.

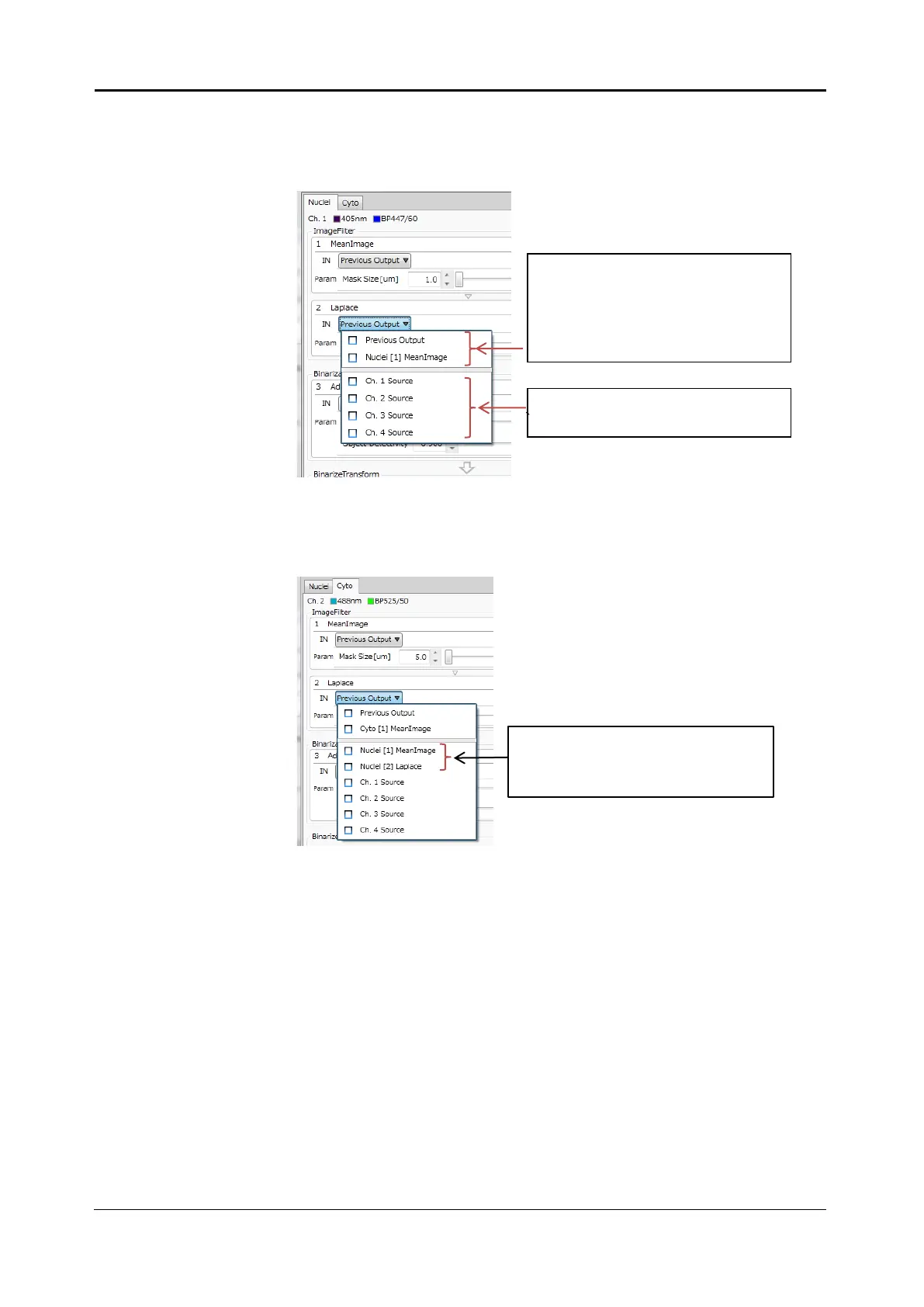

 Previous Output󳞷 Data of the
last processing
 Nuclei[1] MeanImage󳞷Data
obtained by one-step previous
method.

 Ch.1󳟻4 Source󳞷Images at
each channel

 Nuclei[1] MeanImage󳞷 Data
processed by the method
defined for other object.
