7-
12
<7.
Trouble Shooting>
IM 80J01A01-
01E

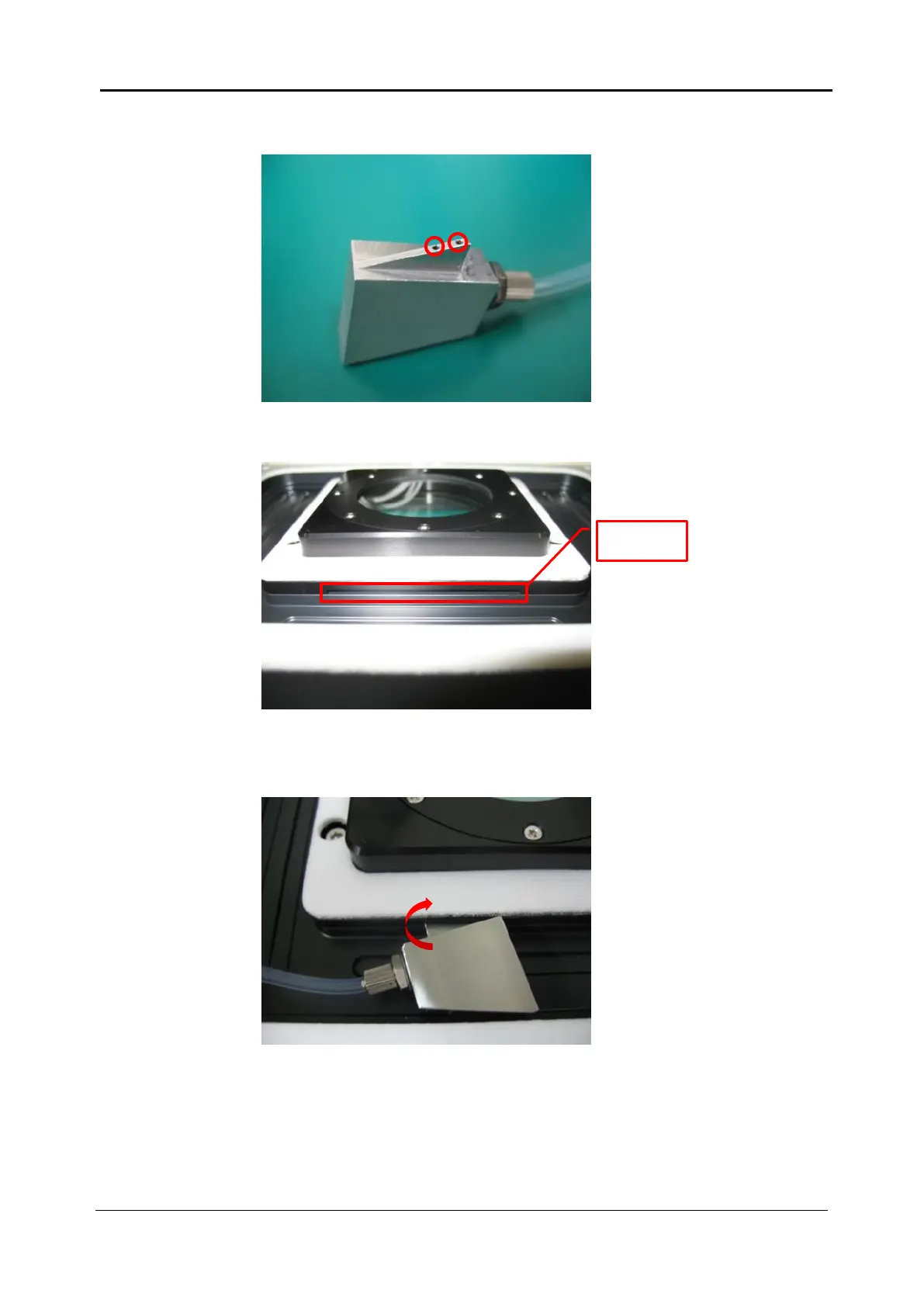

If there is dust or w
ater on the 2 holes
on the edge
of the bloc
k, wipe
them.
If there is dust or w
ater in the sli
t, wipe them.
After cleaning, inse
rt the edge
of the bloc
k into the slit of the bath and
rotate it clickw
ise.
Slit
249
251
Table of Contents
Default Chapter
19
Table of Contents
19
1 Function Overview
21
About the CQ1
21
Principle of the Nipkow Disk System with Micro-Lens
23
2 Precautions for Use/Installation
25
Precautions for Use
25
Installing the Equipment
26
Wiring the Peripherals
30
Connecting the Power
31
3 Name of each Part/Starting and Shutting down the Equipment
35
Name and Function of each Part
35
Starting and Shutting down of CQ1
42
Starting and Shutting down of Gas Mixer (Option)
47
4 Measurement Procedures
49
Basic Protocol Setting
79
Sample Searching
81
Imaging Setting
84
Analysis Protocol Setting
87
Object Recognizing Condition Setting
90
Protocol Saving
91
Sample Measurement
93
5 Functions of CQ1 Software
97
Outline
97
Main Menu
99
Operation Mode Panel
104
Control Panel (CQ Mode)
106
Control Panel (HDD Mode)
152
Viewer
176
Status Panel
218
Viewer Layout
219
Channel Setting
220
Trimming Parameter
222
User Setting
223
Activation Setting
224
Advanced Editor
225
6 Maintenance
237
Maintenance of Workstation
237
7 Trouble Shooting
239
Trouble Shooting During Measurement Preperation
239
Trouble Shooting During Imaging
242
Trouble Shooting During Analyzing
253
Other Trouble Shootings
255
8 Specifications
257
Details of MS Codes
257
General Specifications
260
Measurement Sample Vessels
261
Applicable Standards
262
9 Warranty Rule
