YOKOGAWA CQ1 User Manual

<7. Trouble Shooting> 7-13
IM 80J01A01-01E

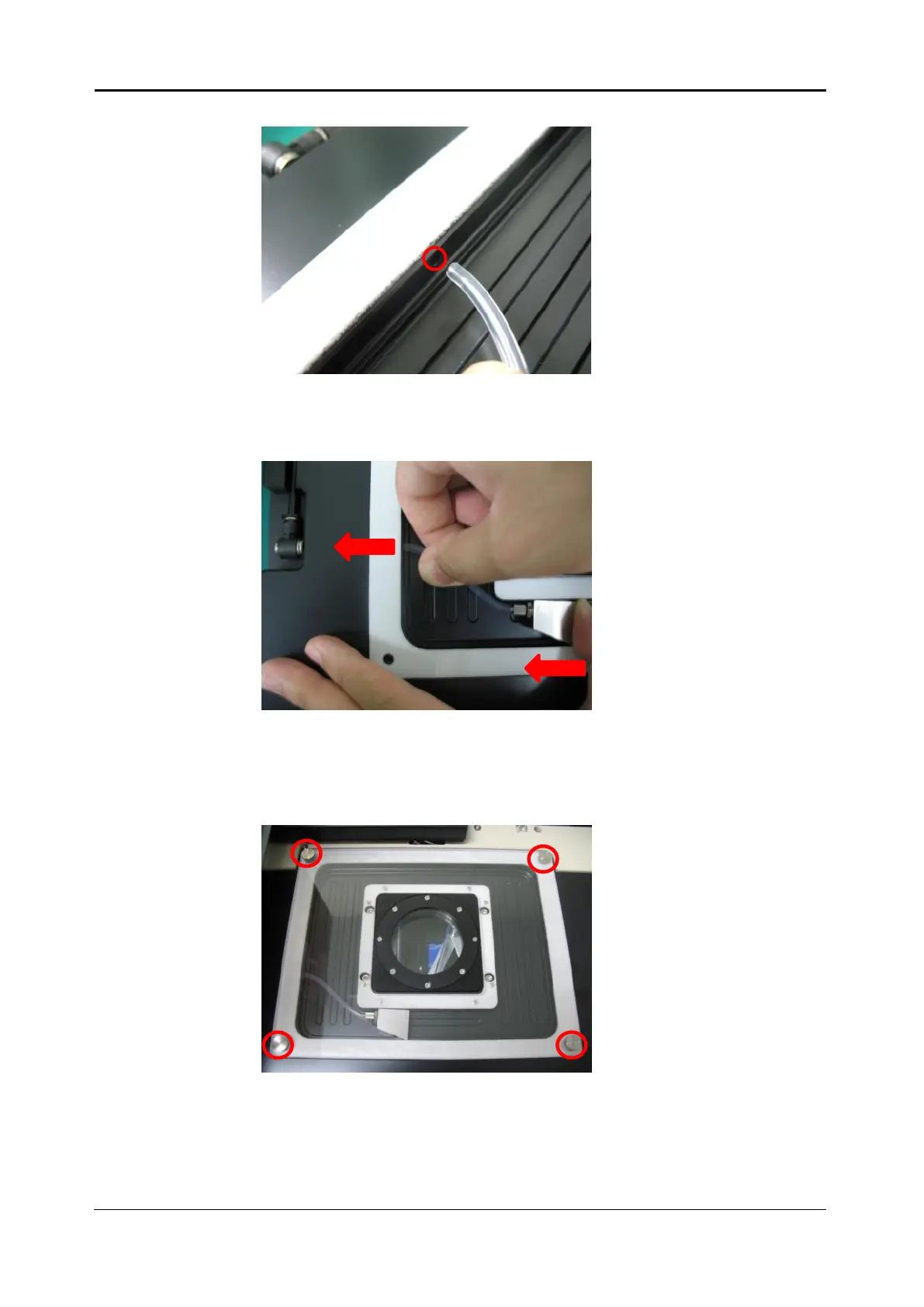

Slide the tube and the block left and insert the tube to the bath hole.
Hold the tube and the block then slide them left to insert the tube to the
hole until the end.
Set bath cover and tighten 4 screws.
In case that the screws can’t be fastened properly, adjust position of
bath cover so that the screws are fastened properly.
